Cub Cadet 7000 Series - Manual (Page 79)

7264 Four Wheel Drive Axle Assembly Removal and Disassembly
6 - 105

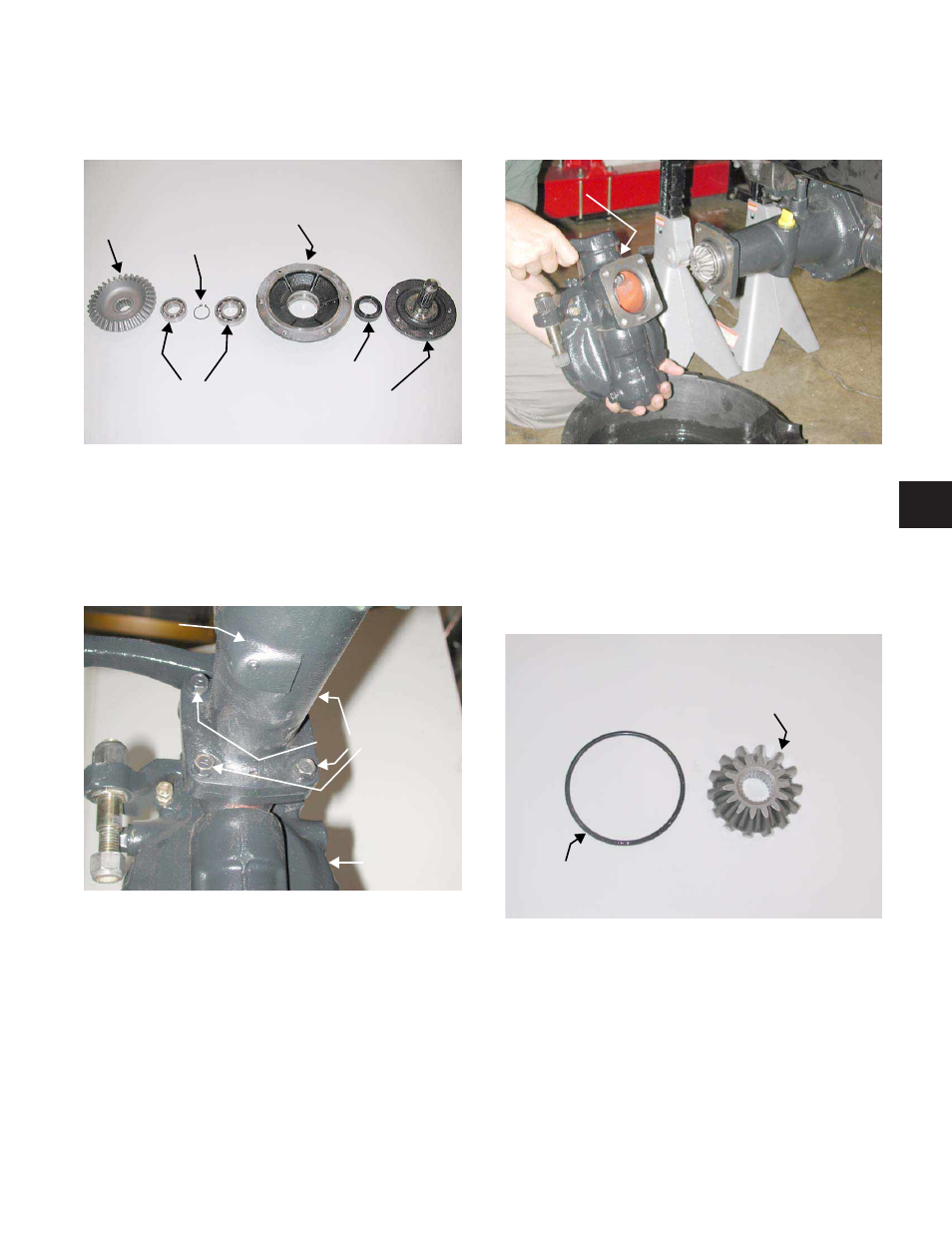

6.14. Inspect all of the components for wear or dam-
age. See Figure 6.14.
6.15. Place a suitable drain container below the left
final drive.
6.16. Remove all four hex bolts securing the left final
drive’s pinion gear assembly to the left axle
housing using a 14mm socket. See Figure 6.16.
Figure 6.14
Final Drive
Gear
Ball Bearings
Retaining Ring
Outer Final Drive Housing
Oil Seal
Wheel/Hub Shaft
Figure 6.16
Hex Bolts
Left Axle
Final Drive
6.17. Remove the left final drive assembly.
See Figure 6.17.
NOTE: A brass drift and hammer may be
needed for removal.
6.18. Place the left final drive assembly on a work
bench.
6.19. Remove the left final pinion gear from the left dif-
ferential shaft. See Figure 6.19.
6.20. Remove the left o-ring from the left differential
housing.
Figure 6.17
Final Drive
Figure 6.19
Final Pinion Gear
O-ring
6
