25.10. Remove both fitting plugs from the transmission
housing, at the hydraulic oil filter area, using a 1”
wrench. See Figure 25.10.
25.11. Remove the auxiliary pump suction tube’s 90°
fitting from the transmission housing using a 7/8”
wrenches.
NOTE: Do not tighten the 90° fitting until the
suction tube has been installed during assembly.
25.12. Inspect the o-rings on the straight fitting, both fit-
ting plugs and the 90° fitting. See Figure 25.12.
NOTE: O-rings are not sold separately.
25.13. Remove the PTO actuator shaft’s oil seal using a
flat-blade screwdriver. See Figure 25.13.
NOTE: Install the oil seal after the PTO actuator
shaft is installed during assembly.
25.14. Remove the differential lock actuator shaft’s oil
seal. See Figure 25.14.
NOTE: Install the oil seal after the differential
lock actuator shaft is installed during assembly.
25.15. Rotate the transmission to the upright position.

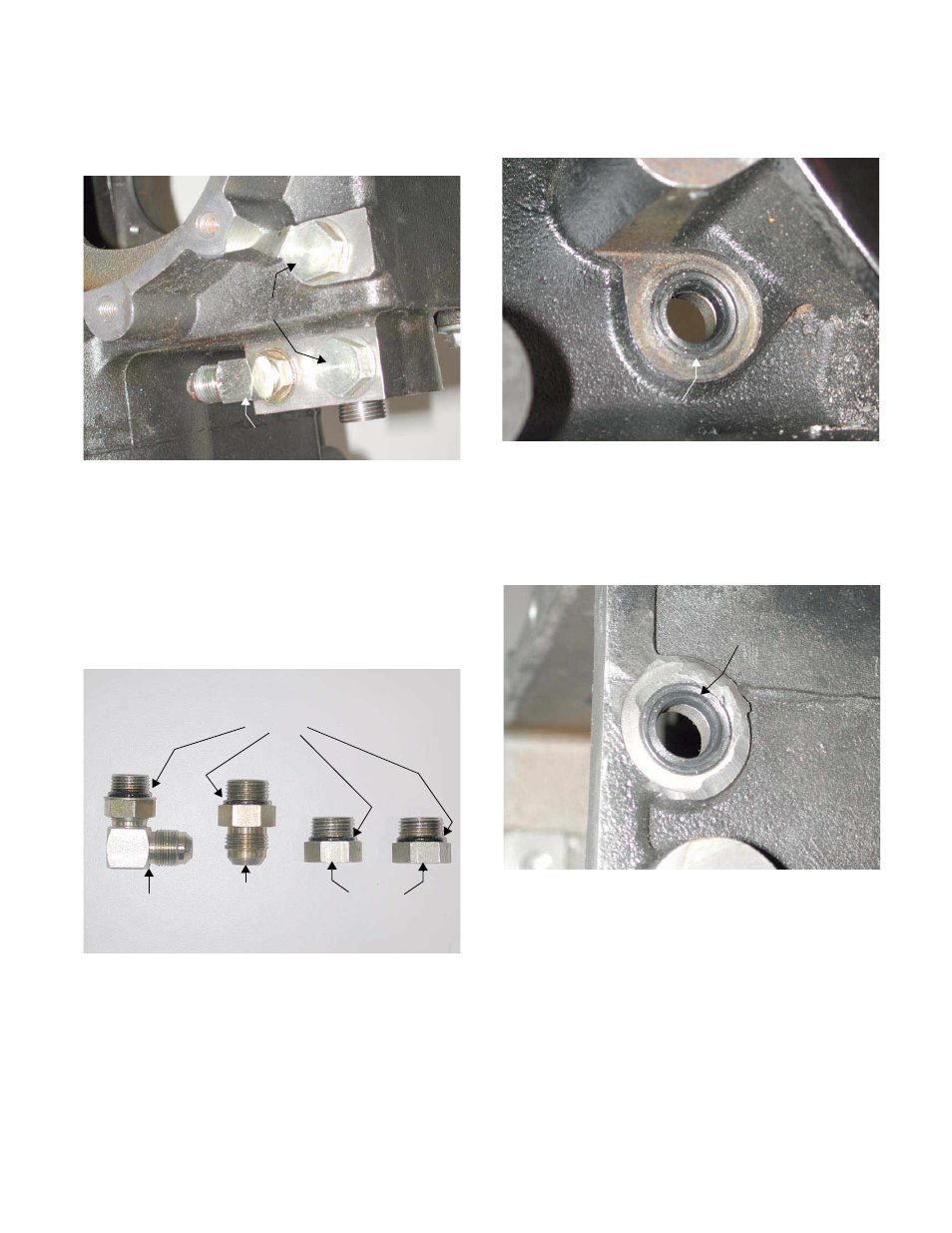

Figure 25.10
Fitting Plugs
90° Fitting
Figure 25.12
O-Rings
Straight Fitting
90° Fitting Fitting Plugs
Figure 25.13
Oil Seal
PTO Actuator Shaft’s
Figure 25.14
Differential Lock Actuator Shaft’s
Oil Seal
