Cub Cadet 7000 Series - Manual (Page 77)

7264 Four Wheel Drive Axle Assembly Removal and Disassembly
6 - 103
6. LEFT FINAL DRIVE AND PINION GEAR
HOUSING ASSEMBLIES:
6.1. Remove all six hex bolts securing the outer final
drive housing to the inner final drive housing
using a 12mm socket. See Figure 6.1.
6.2. Remove the outer housing assembly from the
final drive. See Figure 6.2.

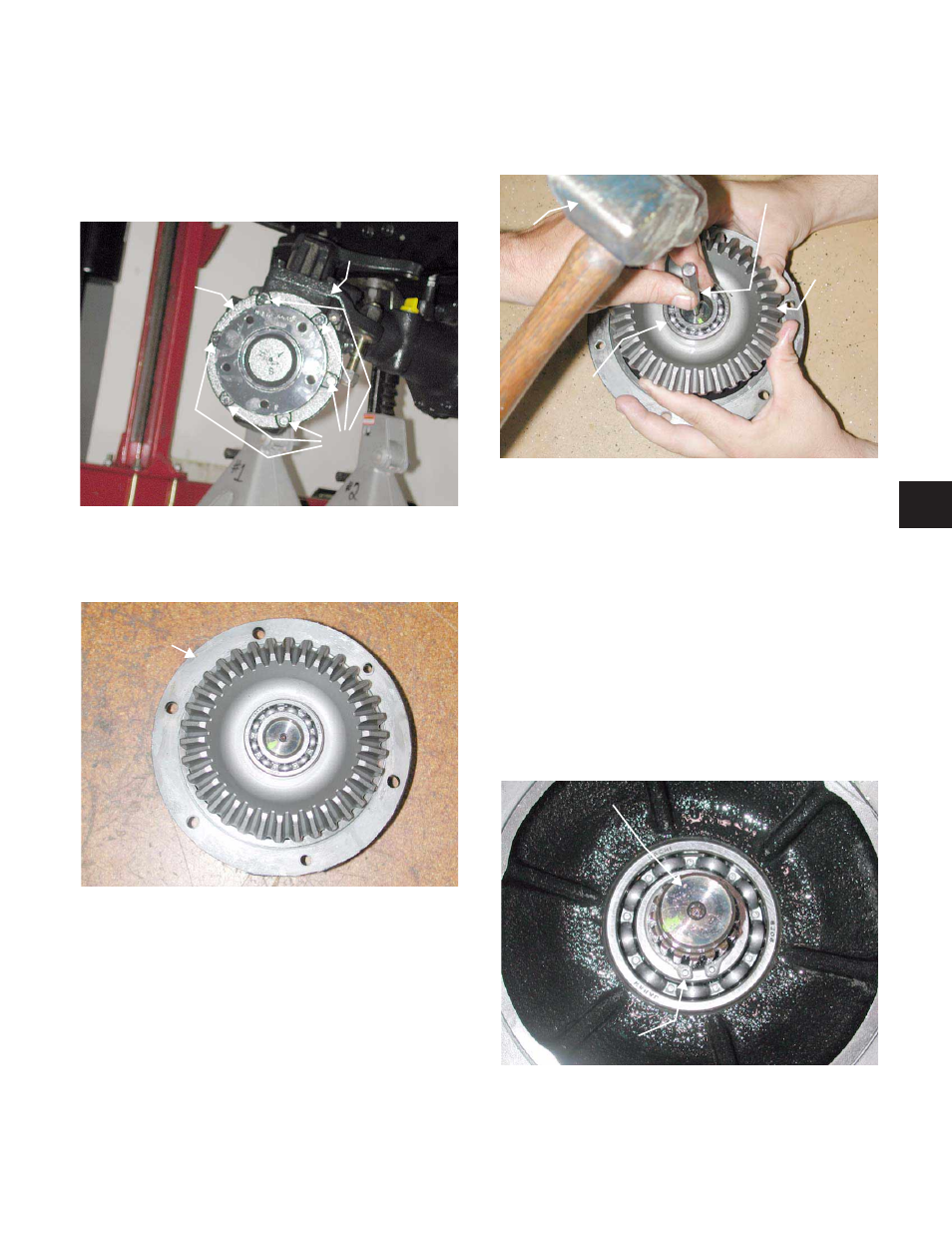

Figure 6.1
Left Final Drive
Hex Bolts
Outer Housing
Figure 6.2
Outer Housing
Assembly
6.3. Place the outer housing assembly on a bench
with the final drive gear facing up.
See Figure 6.3.
6.4. With a partner holding the bottom of the final
drive gear, raise the assembly up and drive the
wheel/hub shaft out of the ball bearing using a
center punch and a large hammer.
NOTE: Make certain the wheel/hub shaft is not
damaged during removal.
6.5. Inspect the ball bearing for wear or damage.
NOTE: It is recommended to replace the ball
bearing.
6.6. Remove the outer retaining ring securing the
wheel/hub shaft in position using medium retain-
ing ring pliers. See Figure 6.6.
Figure 6.3
Final Drive
Gear
Hold
Up
Ball Bearing
Center Punch
Hammer
Figure 6.6
Retaining Ring
Outer
Wheel/Hub Shaft
6
