7264 Four Wheel Drive Axle Assembly Removal and Disassembly
6 - 102
4.4. Remove the steering cylinder and mounting
bracket.
NOTE: The hydraulic steering hoses are still
hooked up to the steering cylinder. Do not
remove them.
4.5. Pivot the steering cylinder rearward and secure
it to the frame, using a cable tie. See Figure 4.5.
5. RIGHT FINAL DRIVE ASSEMBLY AND TIE
ROD:
5.1. Remove all four hex bolts securing the right final
drive’s pinion gear housing assembly to the right
axle housing assembly using a 14mm socket.
See Figure 5.1.
5.2. Remove the right final drive assembly and tie
rod assembly from the tractor, and place it into a
suitable drain container. See Figure 5.2.
NOTE: A brass drift and hammer may be
needed for removal.
5.3. Remove the right final pinion gear from the right
differential shaft. See Figure 5.3.
5.4. Remove the o-ring from the right differential
housing.

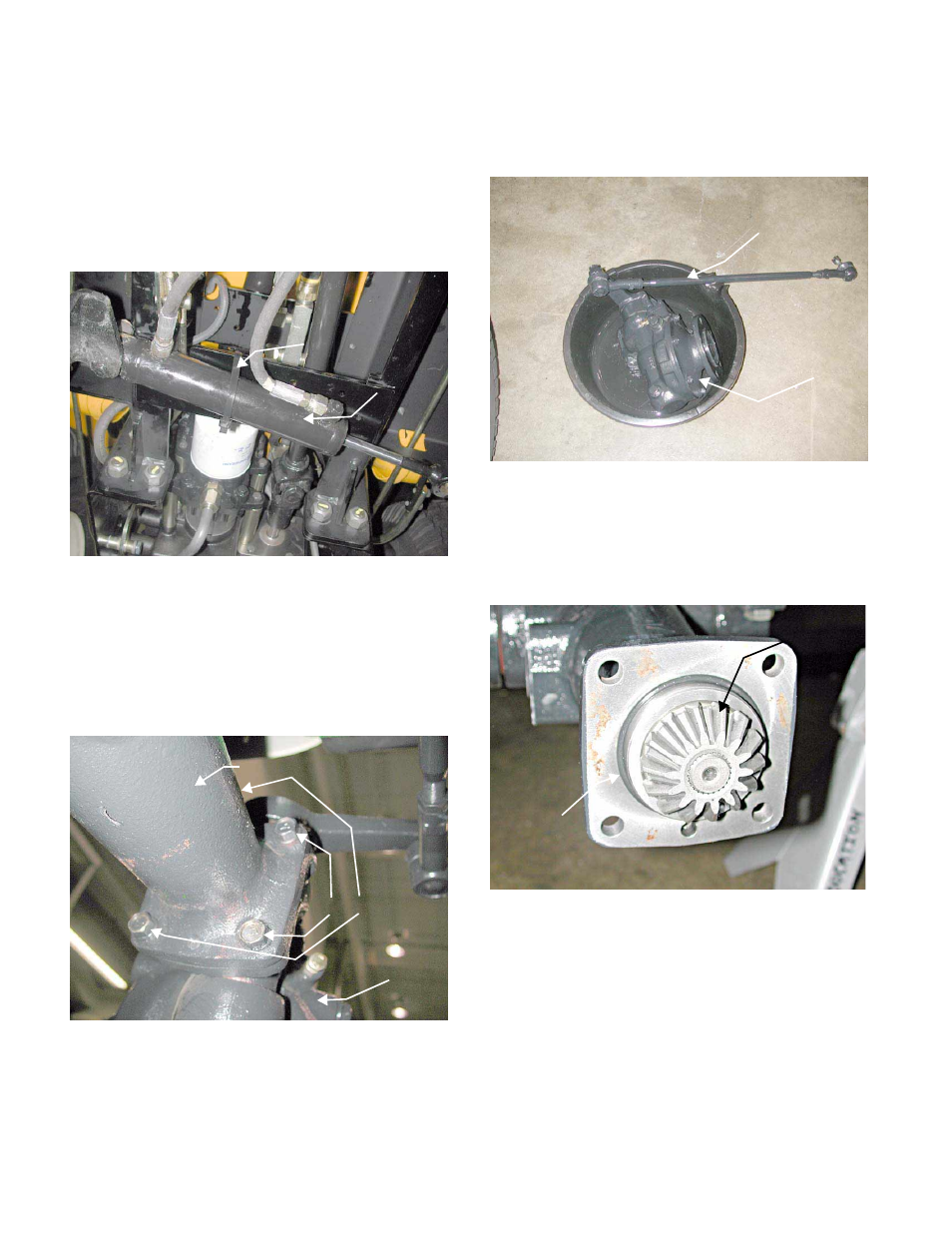

Figure 4.5
Cable Tie
Steering Cylinder
Figure 5.1
Hex Bolts
Final Drive
Right Axle Housing
Figure 5.2
Right Final
Drive Assembly
Tie Rod Assembly
Figure 5.3
Right Pinion
Gear
O-ring
