6 - 69
7264 Compact Tractor

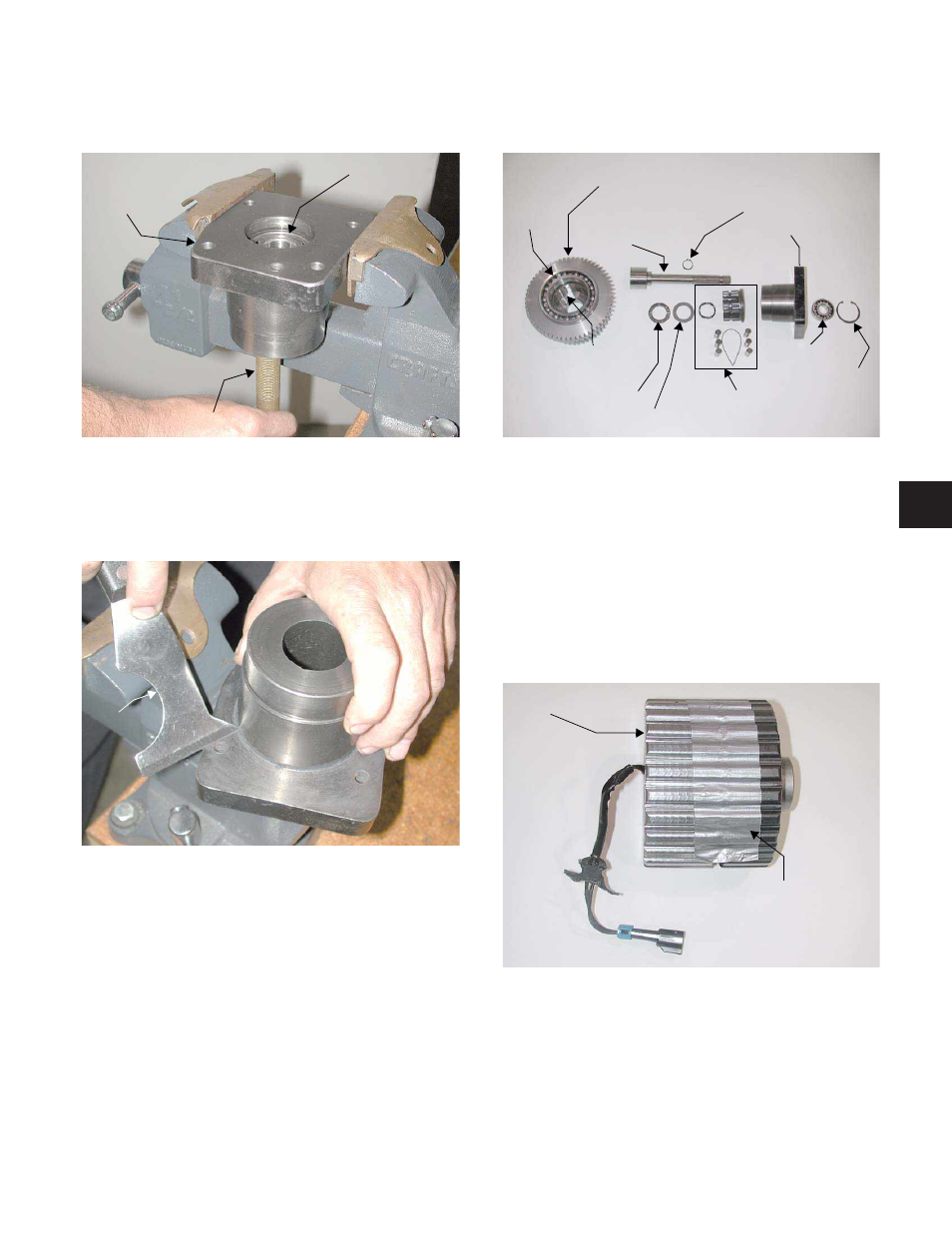

23.13. Remove the front ball bearing using a brass drift
punch. See Figure 23.13.
23.14. Inspect the front cover for damage or wear.
23.15. Remove the sealant from the front cover using a
scraper. See Figure 23.15.
Figure 23.13
Ball Bearing
Brass Drift Punch
Front Cover
Figure 23.15
Scraper
23.16. Inspect all components for wear or damage. See
Figure 23.16.
24. ELECTRIC PTO CLUTCH ASSEMBLY
INSPECTION:
NOTE: Do not perform this section under war-
ranty! It voids all warranty. This section has been
created for the inquisitive mechanic who wants
to know more about the internal workings of the
electric PTO clutch assembly.
24.1. Place the PTO clutch assembly on a bench. See
Figure 24.1.
24.2. Remove the duct tape that was affixed during
removal.
Figure 23.16
LO 59T; HI 50T Drive Gear
Retaining Ring
Four Wheel
Drive Shaft
Thrust Bearing
Thrust Washer
Internal Overrunning
Clutch Components
Front Cover
Ball Bearing
Retaining Ring
Ball
Bearing
External Overrunning
Clutch Component
Figure 24.1
PTO Clutch
Duct Tape
