Cub Cadet 7000 Series - Manual (Page 18)

7264 Compact Tractor
7. TAIL LIGHTS/REVERSE LIGHTS:
7.1. Remove all of the wiring harness bulb assem-
blies from the tail lights by pushing in lightly,
twisting 90° and pulling rearward. See Figure
7.1.
NOTE: The white and green wires go to the
reverse lights, and the green and blue wires go
to the tail lights.
7.2. Remove the tail light harnesses and light assem-
blies from the main wiring harness connectors.
NOTE: Do not leave the light assemblies con-
nected or damage may occur.
8. GRIP HANDLES:
8.1. Remove the grip handles from the PTO handle,
lift handle and the HI-LO shifter handle by pulling
up. See Figure 8.1.
9. FENDER:
9.1. Remove all four hex head tapp screws securing
the front portion of the fender assembly to the
frame using a 1/2” socket. See Figure 9.1.
NOTE: Loctite™ the threads and torque them
between 160 and 200 In. Lbs. during assembly.

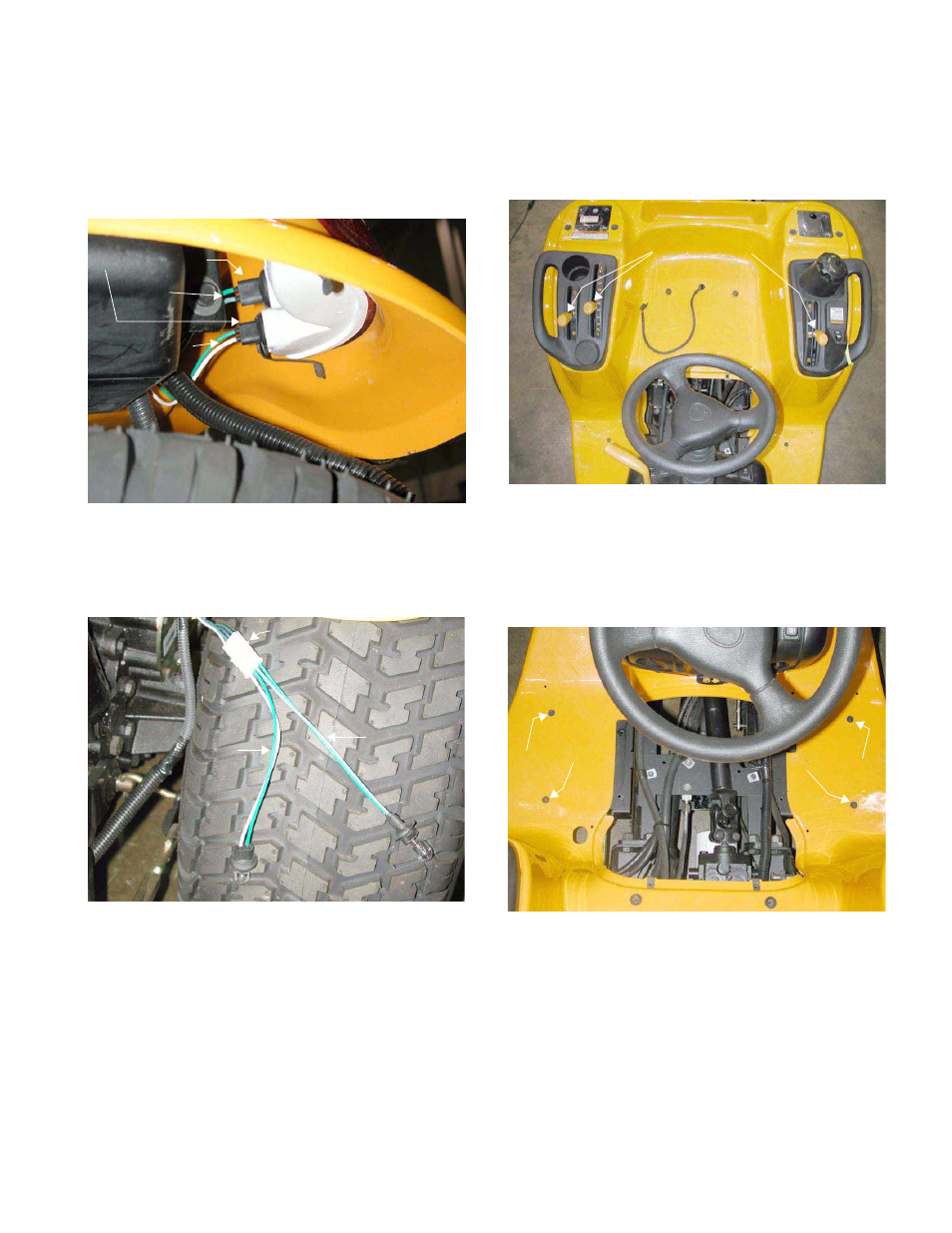

Figure 7.1
Bulb Assemblies
Green &
Blue
Green & White
Harness Wires and Tail Lights Assemblies
White &
Green
Blue &
Green
Main Harness Connector
Figure 8.1
Grip Handles
Figure 9.1
Hex Screws
Hex Screws
6 - 24
