24.8. Remove the thrust bearing from the rear of the
main clutch assembly using a stick magnet. See
Figure 24.8.
24.9. Place the main clutch assembly on the bench
with the hex cap screws facing up. See Figure
24.9.
24.10. Slowly and equally remove all six hex cap
screws securing the main clutch assembly
together using a 7/16” socket.
NOTE: The front plate is spring loaded.

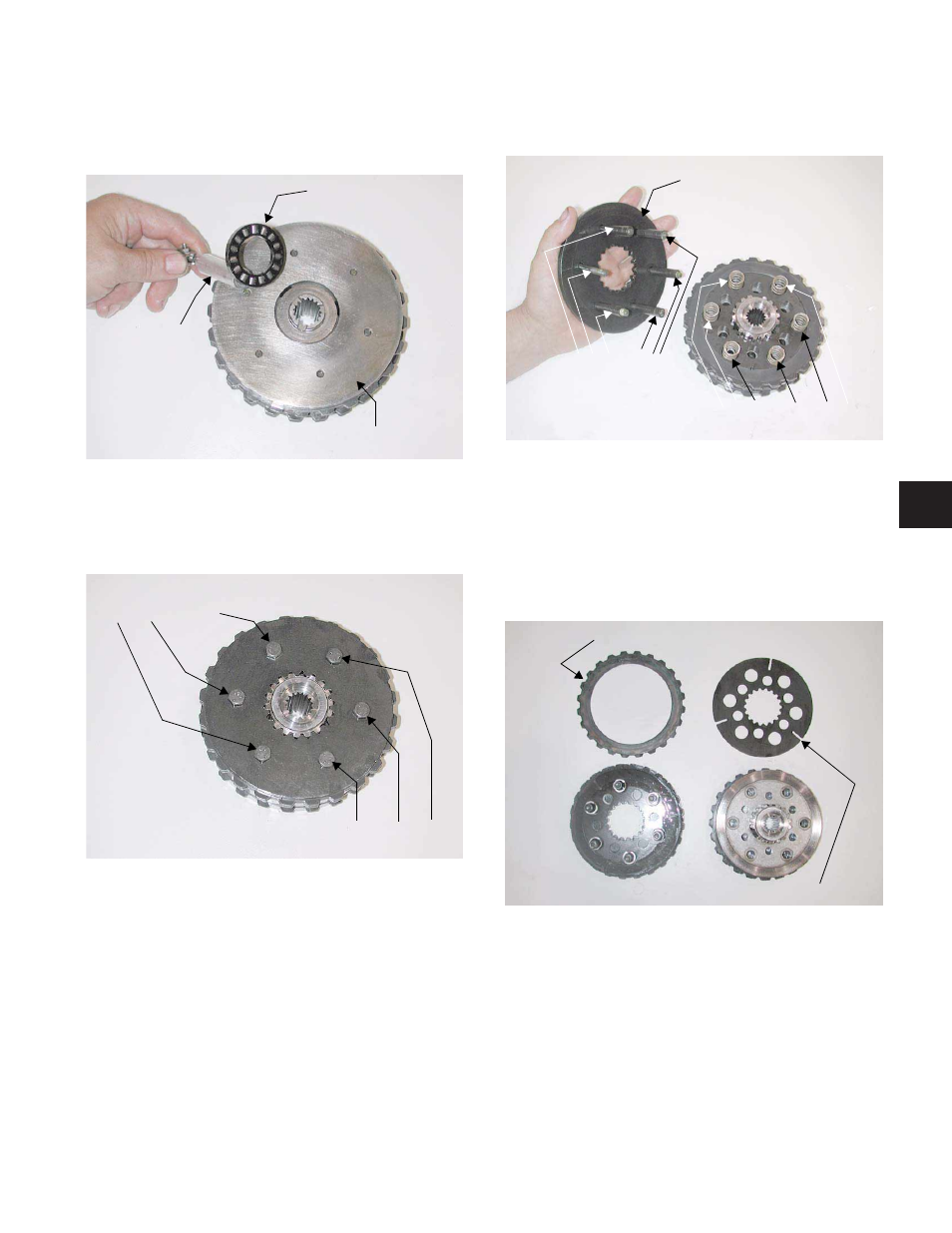

Figure 24.8
Thrust Bearing
Stick Magnet
Main Clutch Assembly
Figure 24.9
Hex Cap Screws
Hex Cap Screws
24.11. Remove the top housing and hex cap screws.
See Figure 24.11.
24.12. Remove all six compression springs from the
clutch packs.
24.13. Remove each external toothed steel clutch disk
and each internal toothed steel clutch disk, one
at a time, inspecting them for wear or damage.
See Figure 24.13.
Figure 24.11
Top Housing
Hex Cap Screws
Compression Springs
Figure 24.13
External Toothed Clutch Disk
Internal Toothed Clutch Disk
