Cub Cadet 7000 Series - Manual (Page 46)

7264 Compact Tractor
13. AUXILIARY DRIVE IDLER AND BEARING:
13.1. Remove the auxiliary drive idler oil plug using a
small chisel. See Figure 13.1.
13.2. Remove the external retaining ring securing the
28T auxiliary drive idler in position using medium
retaining ring pliers. See Figure 13.2.
13.3. Remove the 28T auxiliary drive idler from the
transmission housing. See Figure 13.3.
13.4. Remove the internal retaining ring securing the
auxiliary drive idler ball bearing in the transmis-
sion housing using medium retaining ring pliers.
See Figure 13.4.
13.5. Remove the auxiliary drive idler ball bearing
from the transmission housing.

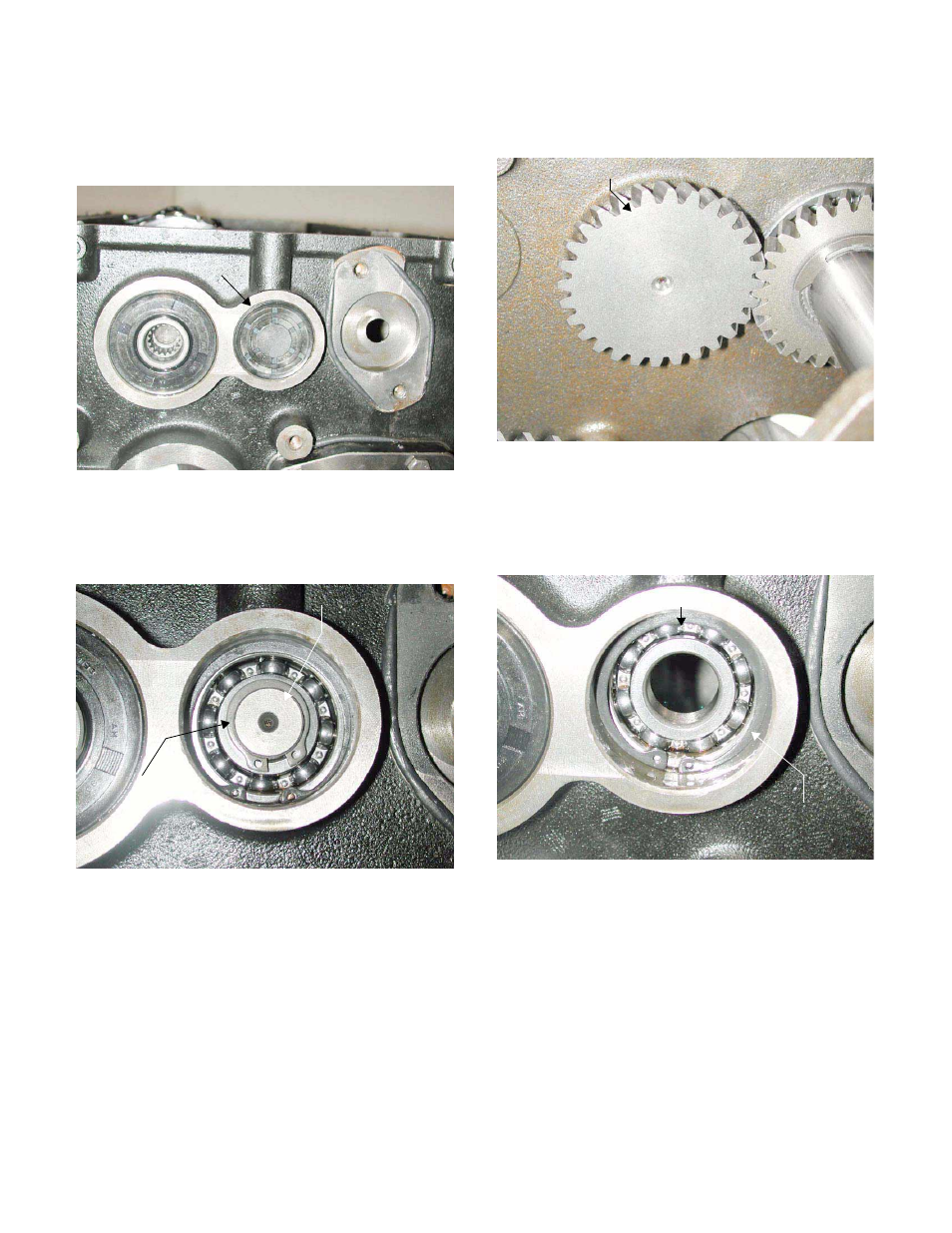

Figure 13.1
Oil Plug
Figure 13.2
Retaining Ring
28T Auxiliary Drive Idler Shaft
Figure 13.3
28T Auxiliary Drive Idler
Figure 13.4
Retaining Ring
Ball Bearing
6 - 52
