24. PTO HANDLE AND CONTROL ROD:
24.1. Remove the hairpin securing the flat washer,
flange bearing and PTO control rod ferrule to the
PTO select arm using a needle nose pliers. See
Figure 24.1.
24.2. Remove the shoulder screw securing the wave
washer, flat spacer washer, nylon bearing and
PTO handle assembly to the transmission hous-
ing using 3/4” socket. See Figure 24.2.
NOTE: Loctite™ the threads and torque them
between 160 and 200 In. Lbs. during assembly.
24.3. Remove the PTO handle and control rod.
25. DIFFERENTIAL SHAFT, BRACKET AND CON-
TROL ROD:
25.1. Remove the hairpin securing the differential con-
trol rod to the pivot link using needle nose pliers.
See Figure 25.1.
25.2. Remove the hairpin securing the flange bearings
and differential shaft assembly in position. See
Figure 25.2.

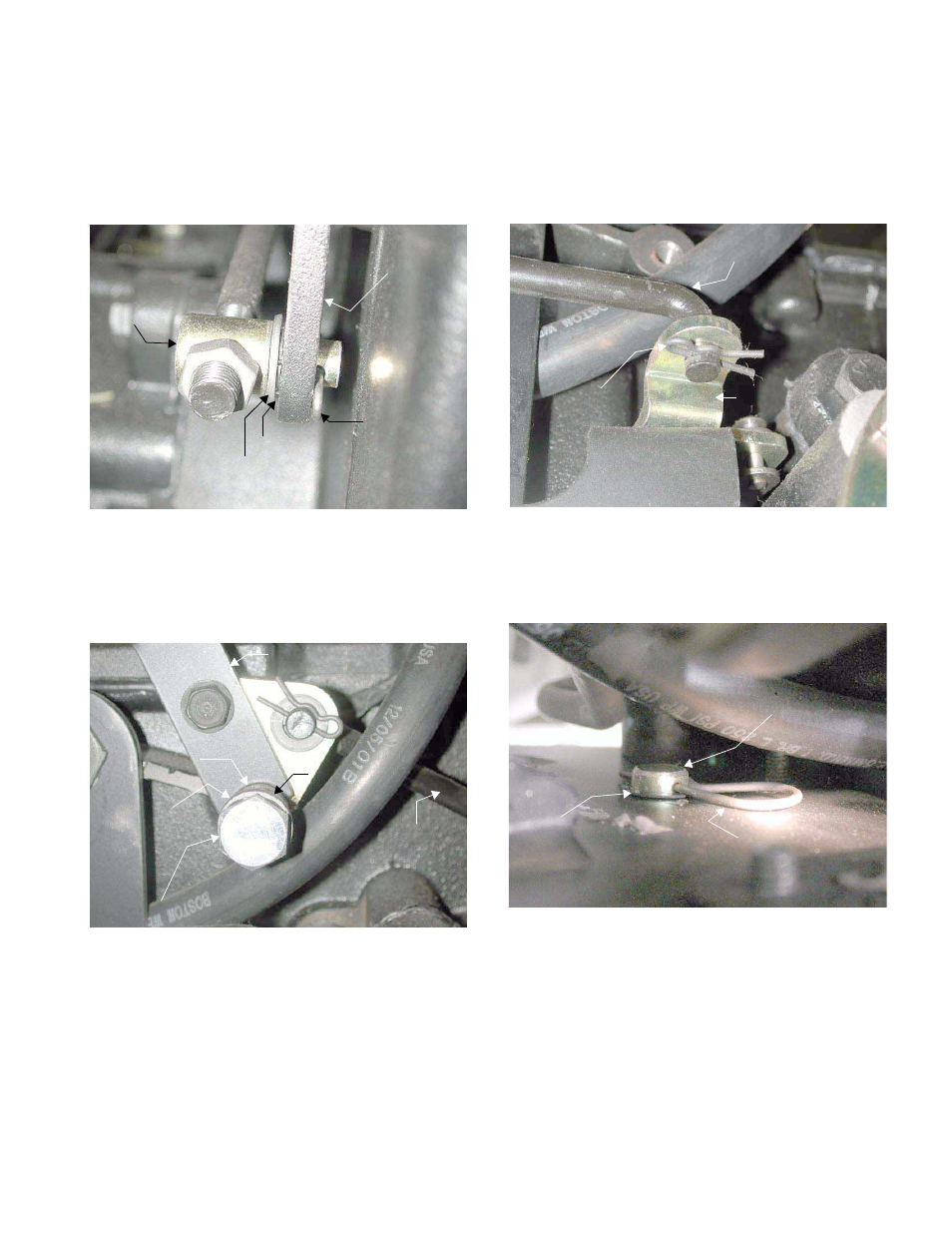

Figure 24.1
Flange Bearing
Flat Washer
Ferrule
Hairpin
PTO
PTO Select Arm
Figure 24.2
Shoulder Screw
Wave Washer
Flat Spacer
Nylon Bearing
PTO Handle
Control Rod
Figure 25.1
Hairpin
Control Rod
Pivot Link
Figure 25.2
Flange Bearing
Hairpin
Differential Shaft Assembly
