10. RADIATOR:
10.1. Remove both hex washer head tapp screws
securing the right and left sides of the radiator
baffle plate to the right and left radiator mounting
brackets using a 1/2” socket. See Figure 10.1.
10.2. Pull the radiator fan shroud rearward to make
certain the radiator inlet and outlet clears. See
Figure 10.2.
10.3. Pull the radiator up and forward until the radiator
is clear from the tractor.
NOTE: There are two steel alignment rods on
the bottom of the radiator.
10.4. Protect the radiator and set it in a secure loca-
tion.

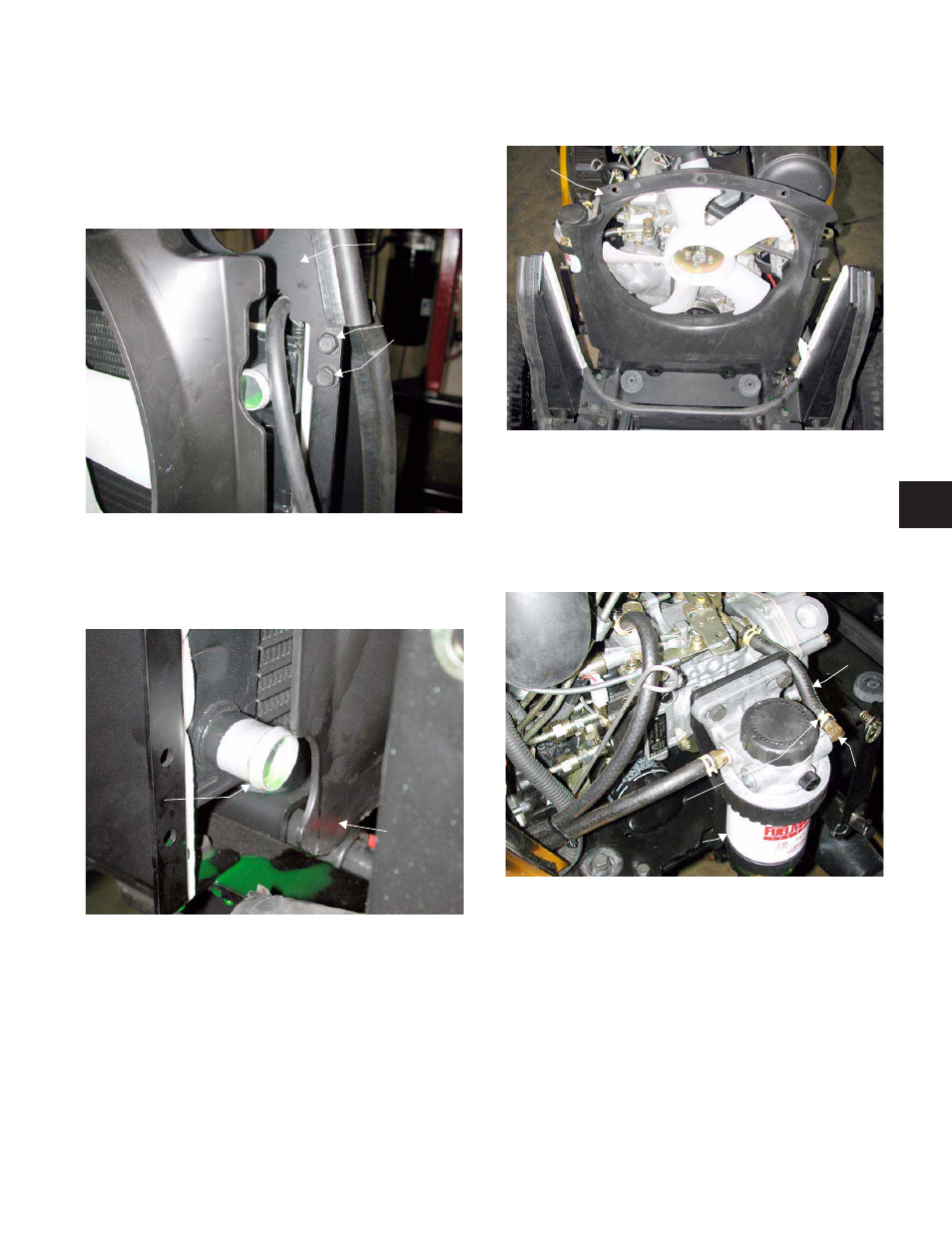

Figure 10.1
Hex Tapp
Screws
Radiator
Baffle Plate
Figure 10.2
Radiator
Fan Shroud
Radiator
Outlet
10.5. Remove the fan shroud. See Figure 10.5.
11. FUEL FILTER ASSEMBLY:
11.1. Loosen the hose clamp securing the short fuel
line, from the fuel filter assembly to the fuel injec-
tion pump, to the 90° fitting on the fuel filter
assembly using pliers. See Figure 11.1.
Figure 10.5
Fan Shroud
Figure 11.1
Short
Fuel Line
Fitting
90°
Fuel Filter
Assembly
Hose Clamp
