6 - 49
7264 Compact Tractor
11.2. Separate the spline coupling gear from the 540
PTO pinion: 14T gear. See Figure 11.2.
11.3. Inspect both components for wear or damage.
See Figure 11.3.
11.4. Inspect the 540 PTO pinion: 14T gear’s sleeve
bushings for wear or damage.
NOTE: If the sleeve bushings are in need of
replacement, a press will be needed to install
new ones.

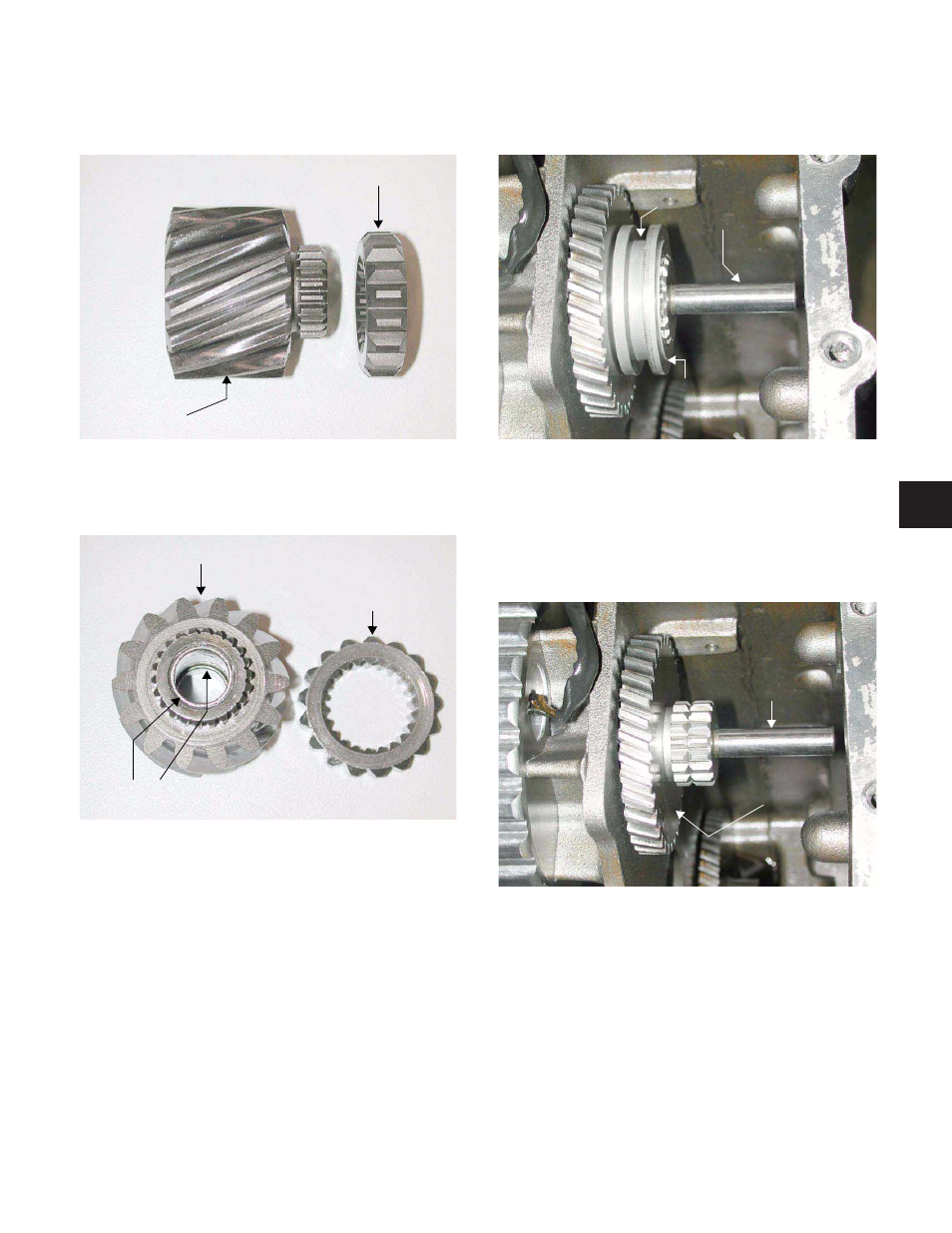

Figure 11.2
Spline Coupling Gear
14T PTO Pinion Gear
Figure 11.3
14T PTO Pinion Gear
Spline Coupling Gear
Sleeve Bushing
11.5. Remove the two speed collar from the PTO back
shaft. See Figure 11.5.
NOTE: The thin groove in the side of the two
speed collar faces the rear of the transmission.
11.6. Slowly pull the PTO back shaft and 2000 PTO
pinion: 34T gear rearward as an assembly. See
Figure 11.6.
11.7. Separate the PTO back shaft and the 2000 PTO
pinion: 34T gear from one another.
11.8. Remove the PTO back shaft and the 2000 PTO
pinion: 34T gear from the transmission.
Figure 11.5
2 Speed Collar
Thin Groove
PTO Back Shaft
Figure 11.6
PTO Back Shaft
34T 2000 PTO Pinion
6
