6 - 51
7264 Compact Tractor
12.5. Remove the locking tab.
NOTE: The locking tab locks into the keyway.
12.6. Rotate the hex nut onto the auxiliary pump’s
input shaft until it is even with the end of the
shaft. See Figure 12.6.
NOTE: This is to protect the threads.
12.7. Remove the 32T auxiliary drive gear from the
auxiliary pump’s input shaft using a large,
pitched chisel, long drift punch and hammer.
NOTE: Apply pressure to the front of the 32T
auxiliary drive gear and quickly rap the center of
the pump’s drive shaft.
12.8. Inspect the components for wear or damage.
See Figure 12.8.

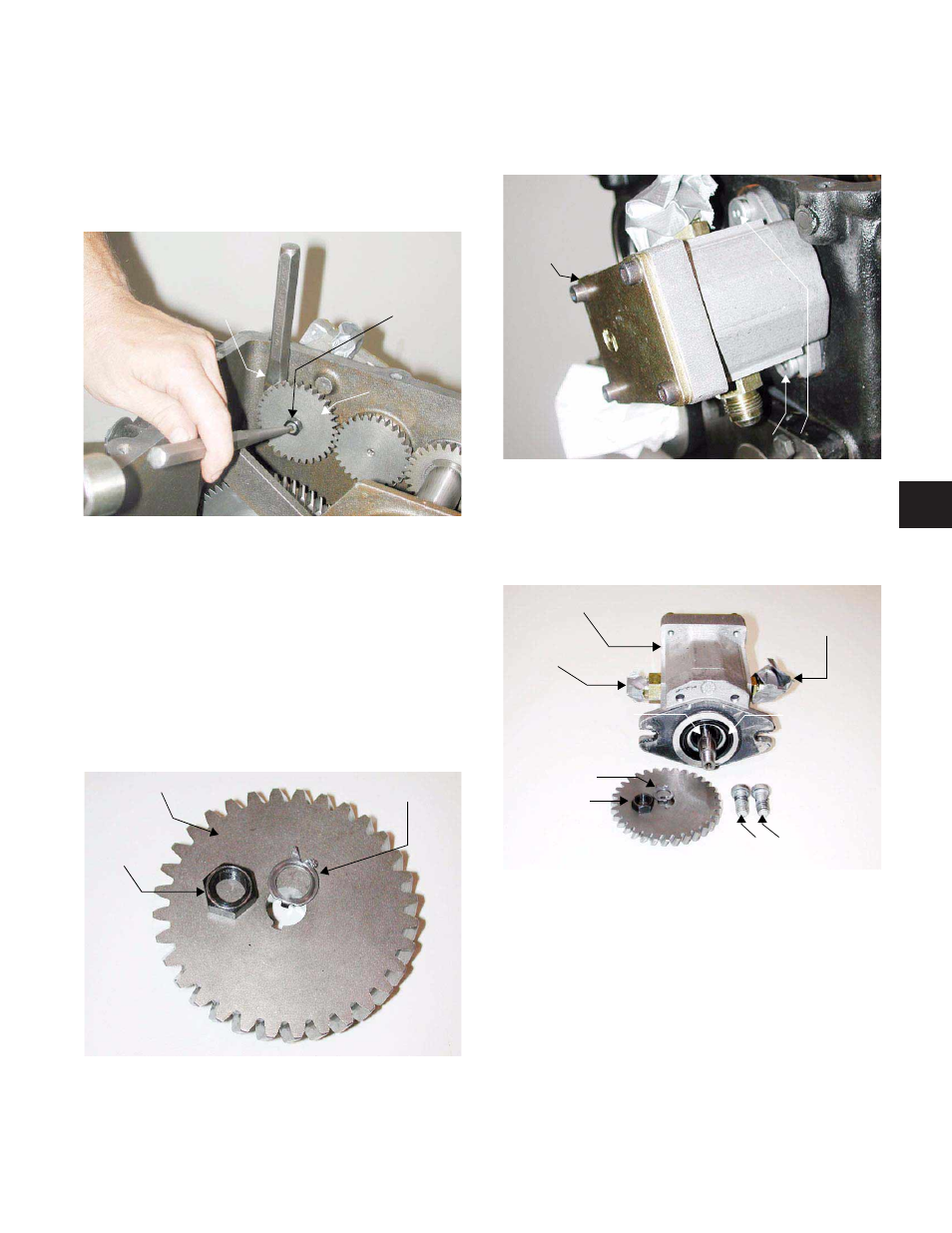

Figure 12.6
Hex Nut Even
With End of Shaft
Large Pitched
Chisel
32T Auxiliary
Drive Gear
Figure 12.8
32T Auxiliary Drive Gear
Hex Nut
Lock Tab
12.9. Remove both low head cap screws securing the
auxiliary pump to the transmission housing using
a 3/16” Allen wrench. See Figure 12.9.
NOTE: Loctite™ the threads and torque them
between 160 and 200 In. Lbs.
12.10. Remove the auxiliary pump. See Figure 12.10.
NOTE: The key will be removed with the pump.
12.11. Inspect the o-ring for wear or damage.
NOTE: It is recommended to replace the o-ring.
12.12. Inspect the key for wear or damage.
Figure 12.9
Low Head Cap Screws
Auxiliary Pump
Figure 12.10
Auxiliary Pump
Hex Nut
O-Ring
Low Cap Screws
Lock Tab
Key
Capped Fitting
Capped Fitting
