22.7. Remove one internal retaining ring securing one
of the short cross shafts in position using small
retaining ring pliers. See Figure 22.7.
22.8. Push the short cross shaft across the differential
pinion block and into the second short cross
shaft.
22.9. Remove one short cross shaft using the second
cross shaft and an Allen wrench.
22.10. Remove the differential pinion block and 10T
miter gears.
22.11. Remove the right 14T miter gear. See Figure
22.11.
22.12. Inspect the needle bearing for wear or damage.
22.13. Inspect both remaining internal retaining rings.
22.14. Inspect all of the components for wear or dam-
age. See Figure 22.14.
22.15. Inspect the differential carrier and right ball bear-
ing for wear or damage. See Figure 22.15.

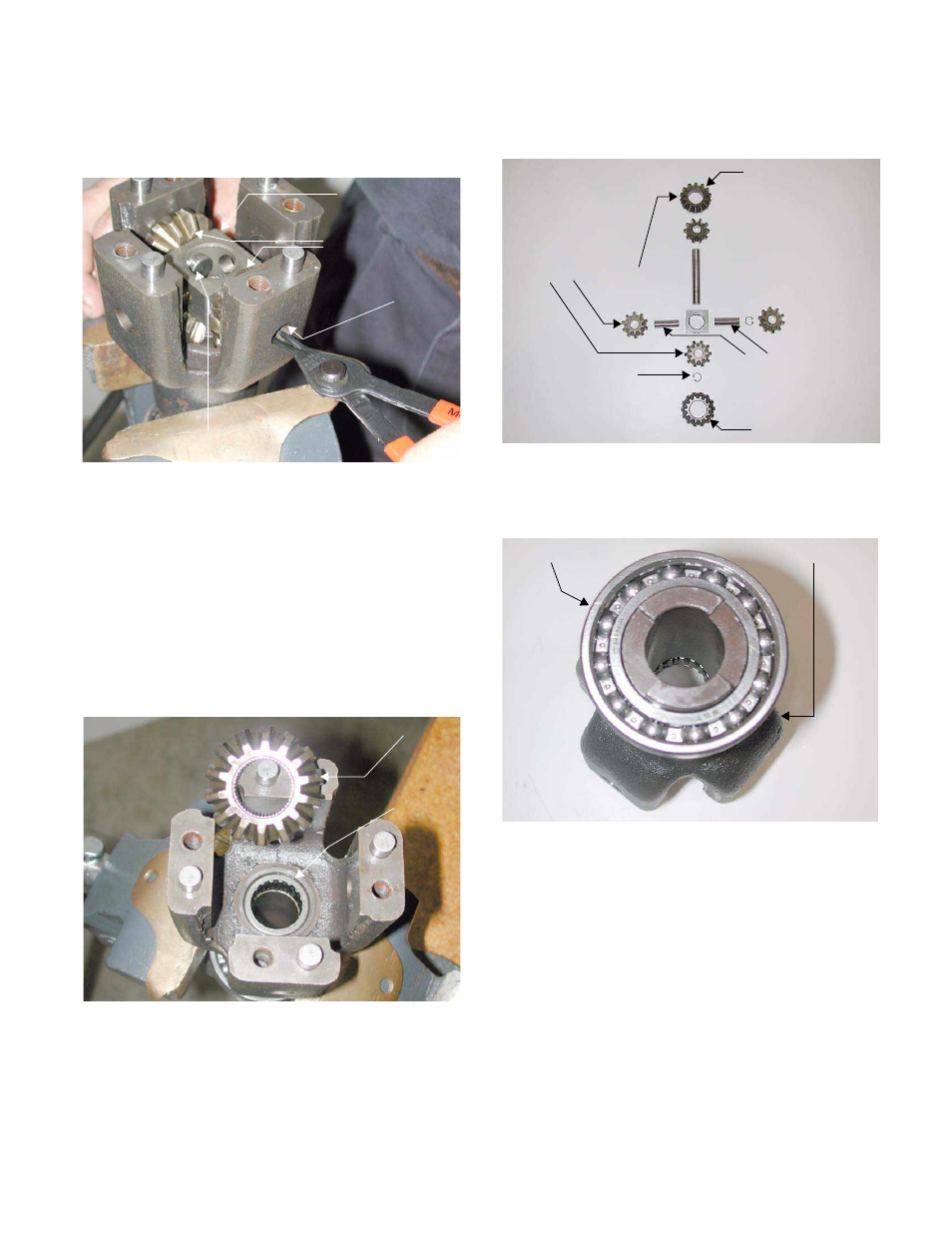

Figure 22.7
10T Miter Gears
Retaining Ring
Short Cross Shaft
Pinion Block
Figure 22.11
14T Miter Gear
Needle Bearing
Figure 22.14
14T Miter Gear
14T Miter Gear
10T Differential Gears
Short Cross Shafts
Retaining Ring
Figure 22.15
Differential Carrier Ball Bearing
