7264 Compact Tractor
17.3. Thread one of the hex lock screws into the trans-
mission housing, just above the right corner of
the front plate, using a 1/2” socket. See Figure
17.3.
17.4. Thread one of the hex lock screws into the front
cover, at the threaded bore, using 1/2” socket.
17.5. Pry the front cover from the transmission hous-
ing using the hex lock screw in the transmission
housing as a pivot point, and the hex lock screw
in the front cover as a lifting point using a pry
bar.
17.6. Remove the front cover and four wheel drive
shaft assembly with the internal components of
the overrunning clutch. See Figure 17.6.
NOTE: Apply sealant to the front cover’s mating
face during assembly.

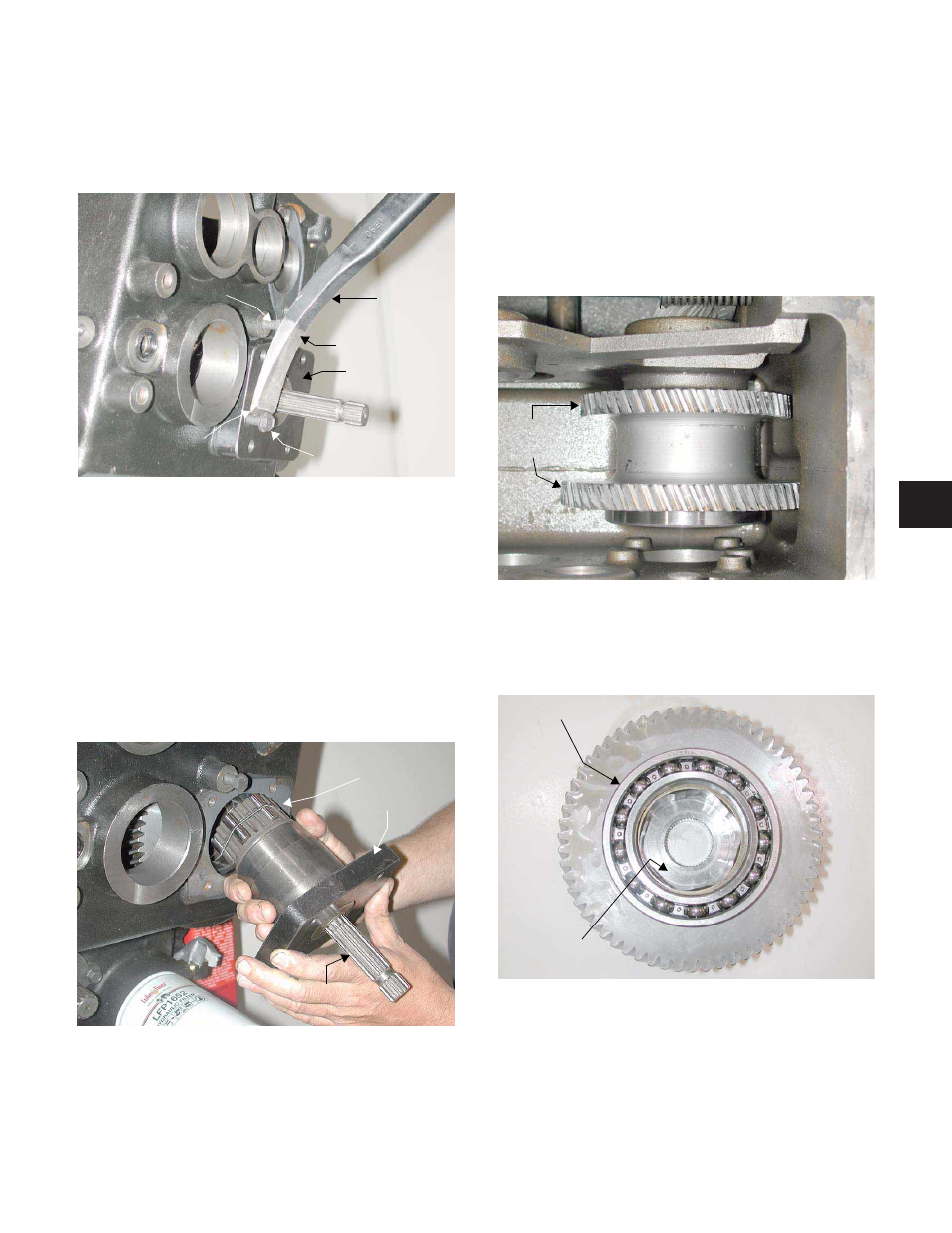

Figure 17.3
Hex Screw
Hex Screw
Pry Bar
Pivot Point
Pry Point
Front Cover
Figure 17.6
Front Cover
Four Wheel
Drive Shaft
Internal Portion
of the Overrunning Clutch
17.7. Visually inspect the internal components of the
overrunning clutch for damage or wear.
NOTE: Refer to the Four Wheel Drive Assembly
Inspection section for detailed procedures.
17.8. Remove the hex lock screws that were used for
prying the front cover off using a 1/2” socket.
17.9. Remove the LO: 59T; HI 50T drive gear assem-
bly from the 16T pinion shaft. See Figure 17.9.
17.10. Visually inspect the external component of the
overrunning clutch and large ball bearing for
damage or wear. See Figure 17.10.
NOTE: Refer to the Four Wheel Drive Assembly
Inspection section for detailed procedures.
Figure 17.9
LO 59T
HI 50T
Drive Gear
Figure 17.10
Large Ball Bearing
External Component
of the Overrunning Clutch
