7264 Adjustments
1.8. Remove the tunnel cover. See Figure 1.8.
1.9. Remove the hairpin clip that fastens the hydro
control link to the hydro control arm.
See Figure 1.9.
1.10. Push the ferrule on the hydro control link out of
the slot in the hydro control arm.
See Figure 1.10.
NOTE: There is a spring positioned on the inside
of the hydro control arm. A loop on the end of the
spring goes around the post of the ferrule. A
hook on the opposite end of the spring seats in
the notch on the front of the hydro control arm.
1.11. Locate the brake assembly on the right side of
the transmission housing. See Figure 1.11.
1.12. With the brake released, remove the hairpin clip
that holds the brake link ferrule to the brake
lever.
1.13. Disconnect the ferrule from the brake lever.
1.14. Depress the brake pedal and set the parking
brake.

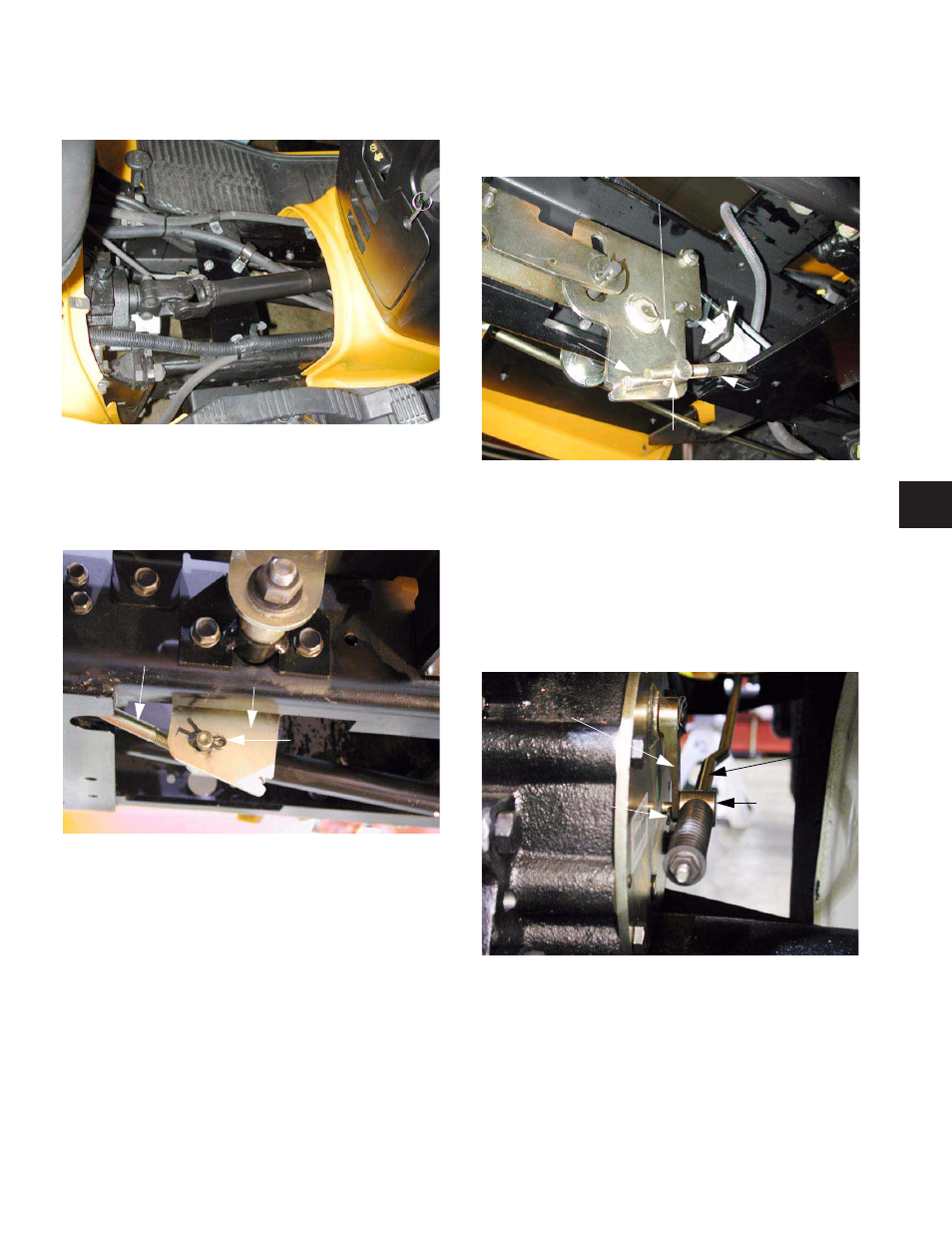

Figure 1.8
Figure 1.9
Hydro Control Link
Hydro Control Arm
Hairpin Clip
View Under Right Frame Rail
Figure 1.10
Hydro Control Arm
Hydro
Control Link
Ferrule
Spring
Switch
Safety
Reverse
Figure 1.11
Brake Link
Ferrule
Brake Lever
Hairpin Clip
