7264 Compact Tractor
14.7. Slide the factory school compact tractor stands
under the midsection of the tractor with the bal-
ance bar facing towards the rear of the tractor.
See Figure 14.7.
NOTE: The factory school compact tractor stand
is used to keep the unit from tipping side to side
when the transmission is removed.
14.8. Raise the front support brackets of the compact
tractor stand up until the top holes in the bracket
align with the upper frame holes.
14.9. Secure the front support brackets to the tractor
frame with the long hex cap screws removed
from the ROPS using a 3/4” wrench.
14.10. Raise the rear balance bar up until it lightly
touches the bottom of the tractor frame.
14.11. Tighten the front bracket in position using the
middle jam nuts and an adjustable wrench.

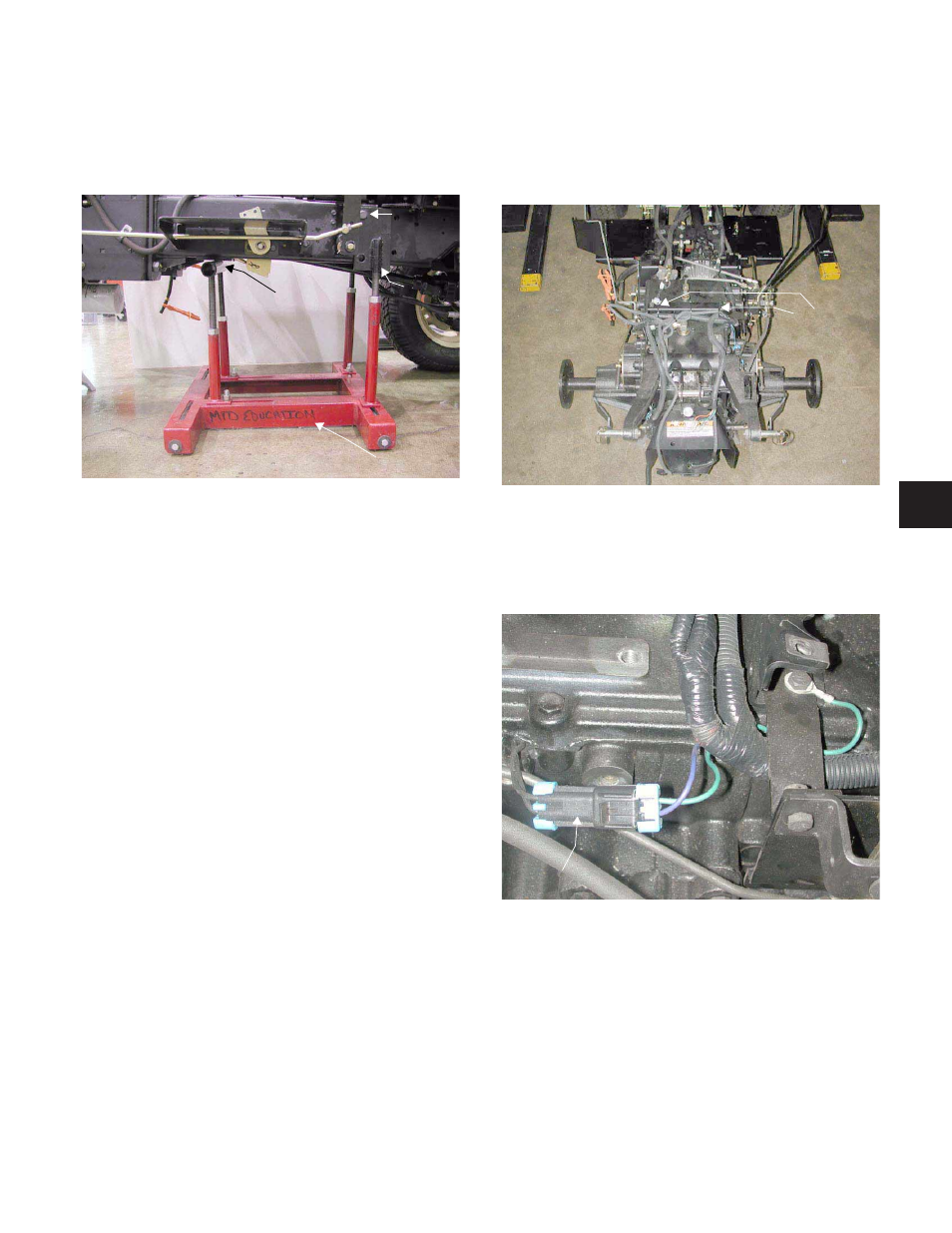

Figure 14.7
Factory School Stand
Balance Bar
Front
Support
ROPS
Hardware
15. ZIP TIES:
15.1. Remove all the remaining zip ties securing the
main wiring harness to the rear portion of the
tractor using side cutters. See Figure 15.1.
16. PTO CLUTCH CONNECTOR:
16.1. Disconnect the PTO clutch connector from the
main wiring harness connector. See Figure 16.1.
Figure 15.1
Zip Ties
Figure 16.1
PTO Connector
