Page 19

6 - 25

7264 Compact Tractor

9.2.

Remove all four hex cap screws and flat wash-
ers securing the rear portion of the fender
assembly to the lower ROPS assembly using a
1/2” socket. See Figure 9.2.

NOTE: Loctite™ the threads and torque them
between 160 and 200 In. Lbs. during assembly

9.3.

Remove the diesel fuel cap. See Figure 9.3.

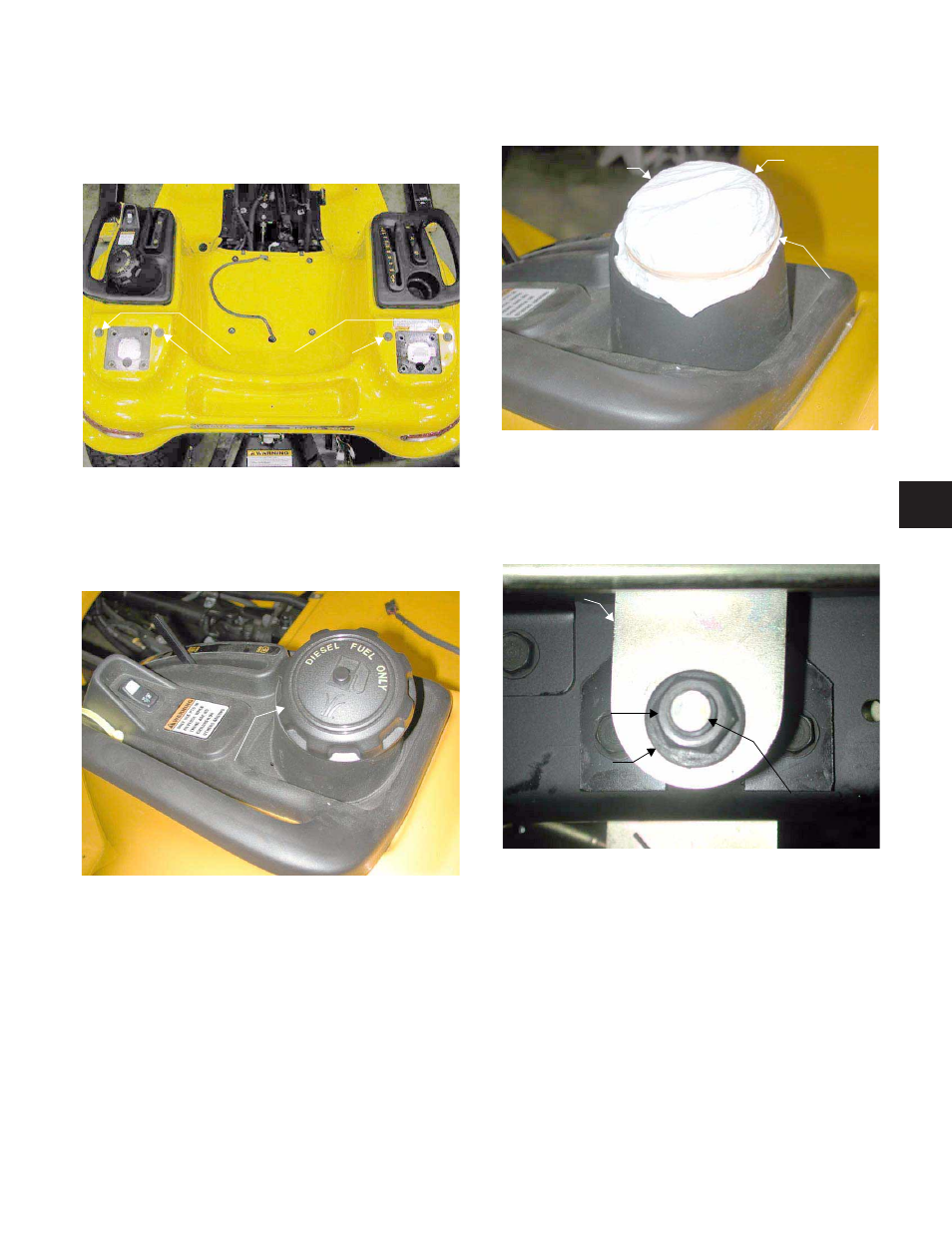

Figure 9.2

Hex Screws & Flat Washers

Figure 9.3

Fuel Cap

9.4.

Cap the fuel tank inlet with a cloth and a rubber
band. See Figure 9.4.

9.5.

Remove the hex lock nut securing the flat
washer and forward/reverse pedal link assembly
to the forward/reverse shaft assembly using a
3/4” socket. See Figure 9.5.

NOTE: Loctite™ the threads during assembly

9.6.

Pull the forward/reverse pedal link assembly out-
ward until it pivots freely.

NOTE: A large brass drift punch and hammer
may be needed to move the link outward.

Figure 9.4

Capped Inlet

Cloth

Rubber Band

Figure 9.5

Hex Lock Nut

Flat Washer

Pedal Link

Forward/Reverse Shaft
