7264 Compact Tractor

TRANSMISSION REMOVAL

NOTE: The 7264 Transmission Removal section
has been technically written to follow along with
the Cub Cadet Compact 7264 Factory School.

HAZARD LIGHTS:

1.1.

Remove the flexible conduit protecting the wiring
harness connectors going to the hazard lights.
See Figure 1.1.

1.2.

Disconnect both harness connectors from each
hazard light. See Figure 1.2.

NOTE: The connectors connect black to black,
and red to green

1.3.

Pull the wiring harness down through the ROPS
mounting assemblies.

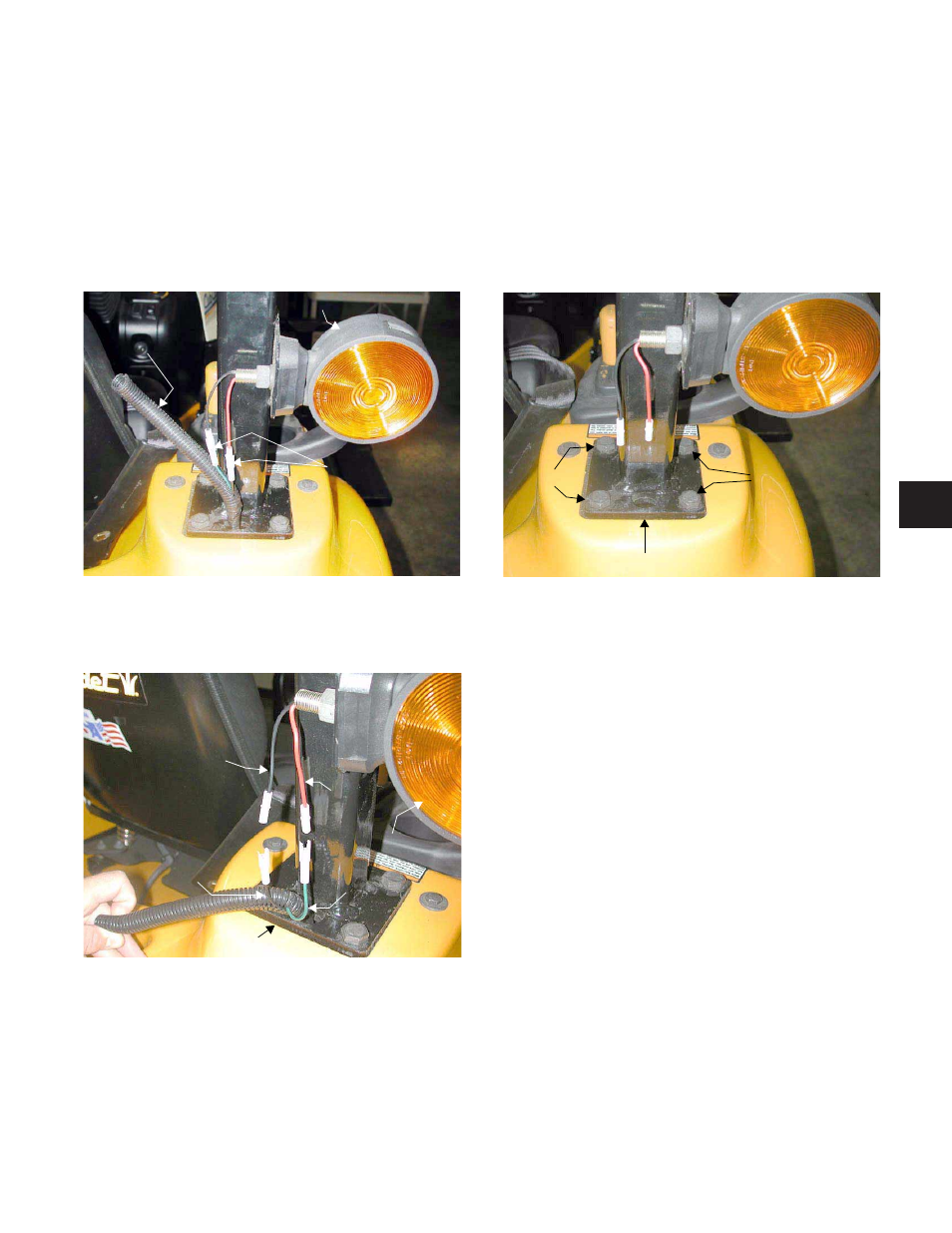

Figure 1.1

Flexible Conduit

Connectors

Hazard Light

Figure 1.2

Black

Red

Green

Hazard Light

ROPS Mounting Assembly

FOLDABLE ROPS:

2.1.

Secure the ROPS assembly from above.

NOTE: A partner to secure the ROPS assembly
would be advisable.

2.2.

Remove all four hex cap screws securing the
right and left ROPS mounting assembly to the
lower ROPS assembly using a 3/4” socket. See
Figure 2.2.

NOTE: Loctite™ the threads and torque them
between 360 and 420 In. Lbs. during assembly.

2.3.

Remove the upper ROPS assembly.

NOTE: The whole upper ROPS assembly will be
removed as one complete unit.

Figure 2.2

Hex Screws

Upper ROPS assembly
