HYDRO. DRIVE AND BRAKE SYSTEM
89
17. Move the transaxle forward to make some slack in
the brake linkage. Use the slack to unhook the brake
spring from the brake arm.
18. Carefully lift the transaxle onto a workbench for drain-
ing or disassembly as needed.
19. On the bench;
19a. The top of the reverse safety switch is held
against the trunnion arm by the post on the
drive control rod. See Figure 5.82.
NOTE: The post passes through a round hole in the switch
plate and an oblong hole in the trunnion arm.
19b. The bottom of the reverse safety switch fits into
a “T” slot in the trunnion arm. See Figure 5.83.

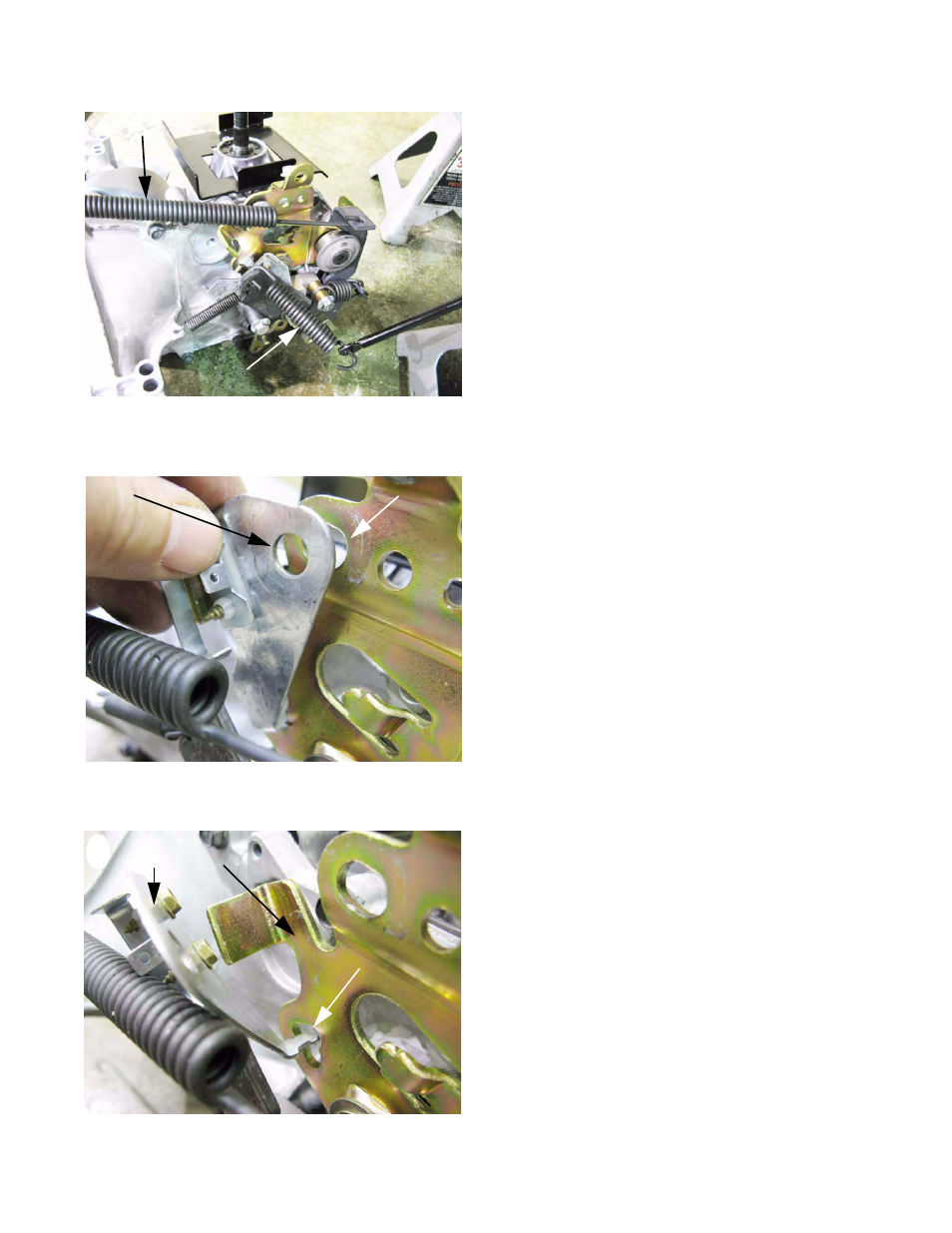

Figure 5.81
Large r-t-n spring
Brake actuator spring
Figure 5.82
Round hole Oblong hole
Figure 5.83
Reverse
safety switch Trunnion arm
“T” slot
