CVT DRIVE AND BRAKE SYSTEM
125
3. Loosen, but do not remove the wheel bolts (Double-D
axles) or lug nuts, using a 1/2” wrench or a 3/4”
wrench, respectively.
4. Unbolt the variable speed pulley bracket from the
transaxle using a 3/8” wrench. See Figure 6.76.
5. Lift, and safely support the tractor. The rear of the
tractor should be high enough to allow the transaxle
to pass under it.
6. Remove the rear wheels. If the tractor has Double-D
axles, remove the wheel spacers too.
See Figure 6.77.
7. Disconnect the forward-neutral-reverse gear selector
rod from the transaxle by removing the hair pin clip.
See Figure 6.78.

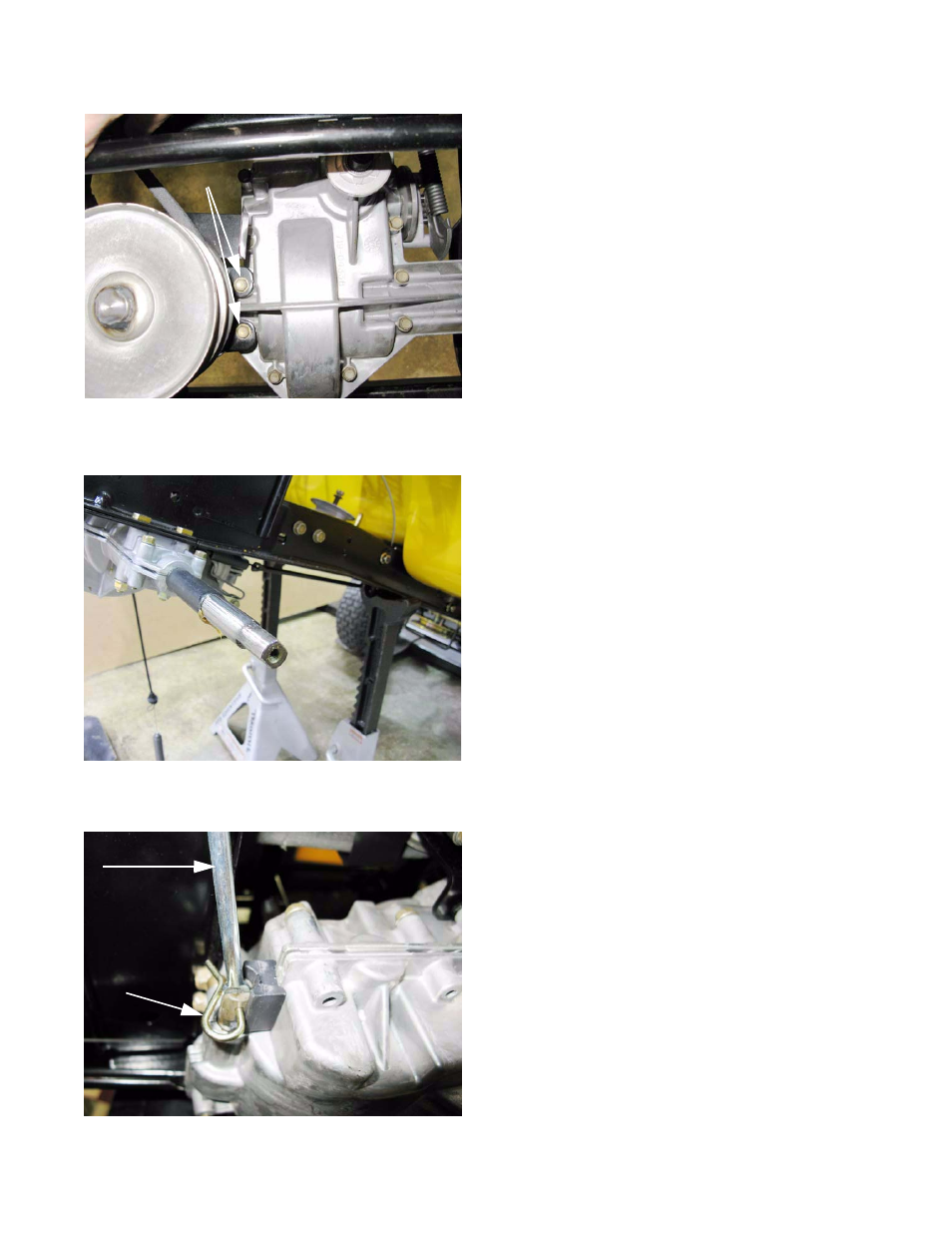

Figure 6.76
bracket bolts
V.S. pulley
Figure 6.77
Figure 6.78
f-n-r selector rod
Hair pin clip
