LTX Tractors

130

6.

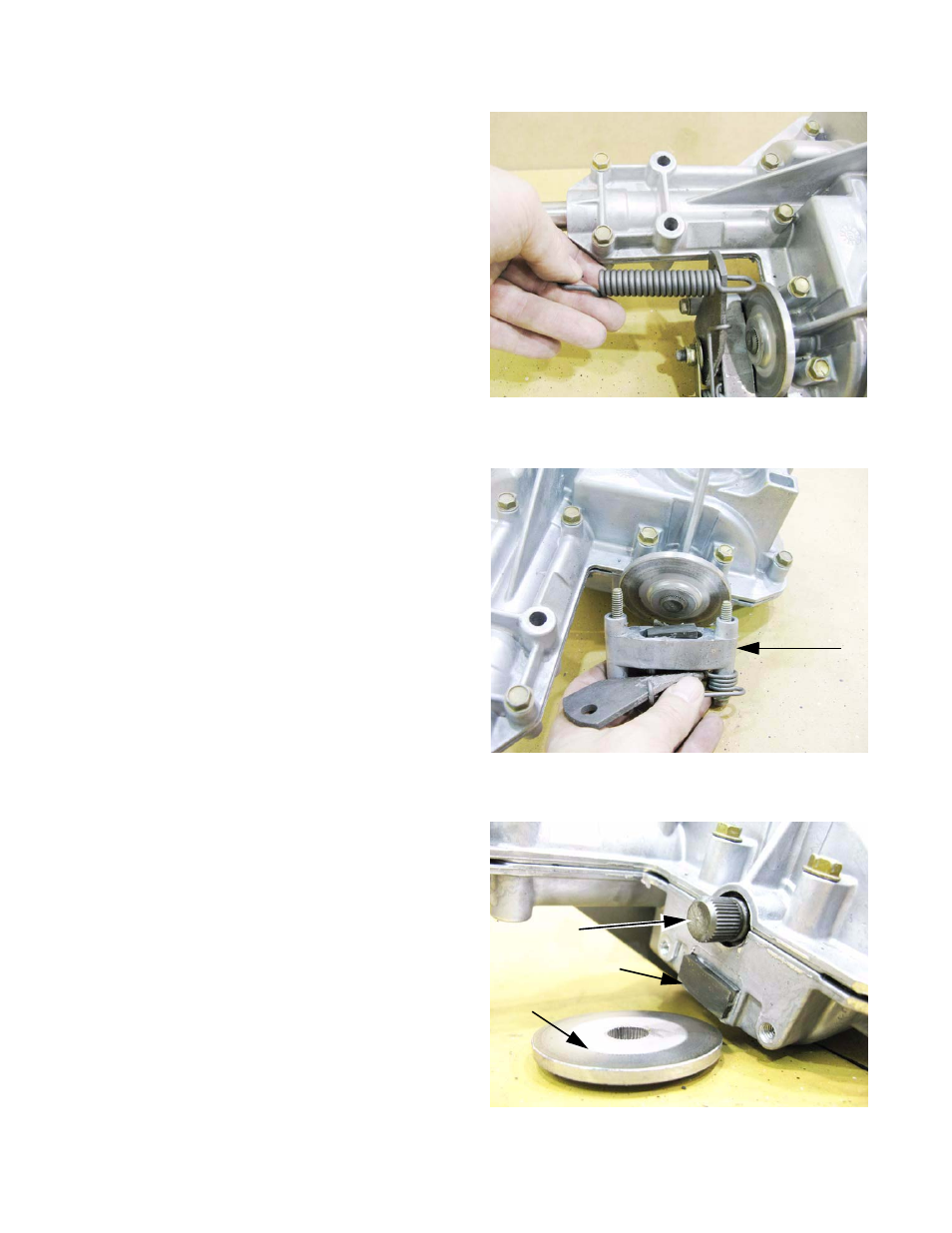

Disassemble the brake:

6a.

Unhook and remove the brake spring.
See Figure 6.88.

6b.

Unbolt the brake yoke from the transaxle
using a 3/8” wrench. See Figure 6.89.

6c.

Slip the brake rotor off of the brake shaft
(splined end of bevel gear shaft).
See Figure 6.90.

Figure 6.88

Figure 6.89

Brake yoke

Figure 6.90

Brake rotor

Brake pad (fixed)

Brake shaft
