CVT DRIVE AND BRAKE SYSTEM
111
Belt control: variable speed pulley
1. Remove the battery and battery tray by following the
procedures described in Chapter 4: Body Panels.
See Figure 6.41.
2.
Disconnect the lateral spring from the frame, relieving
tension from the make-up pulley.
3.
Roll the upper drive belt off of the transmission input
pulley and the top sheave of the variable speed pul-
ley.
4.
Remove the input pulley from the transaxle using a 7/
8” wrench. See Figure 6.42.
! CAUTION
! CAUTION
The battery will be removed in this procedure. Review the Operator’s Manual and Chapter 7:
Electrical System for important safety information about handling batteries before proceeding.

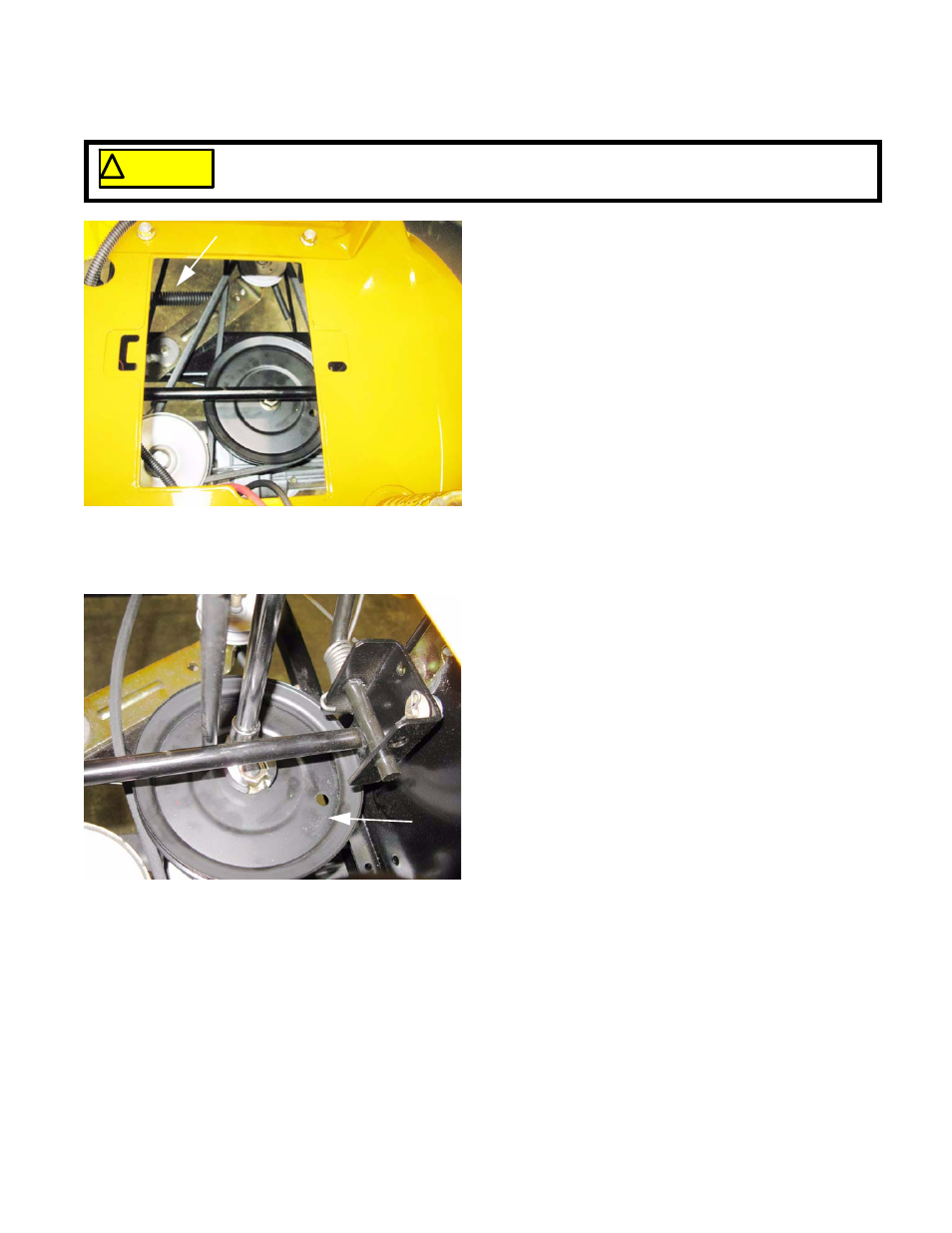

Figure 6.41
Lateral spring
Figure 6.42
Input
pulley
