12. Remove the four screws that hold the base of the
dash panel to the frame using a T-40 driver and a 1/
2” wrench. See Figure 4.47.
NOTE: On tractors equipped with electronic power
steering: See Figure 4.48.
• Remove the screw that holds the EPS motor
cover to the left side of the dash using a 3/8”
wrench.
• Pull the EPS motor cover off of the barbed fas-
tener.
13. Lift the dash panel off of the tractor.
See Figure 4.49.
14. Assembly notes:
• Assemble tractor by reversing the disassembly
process.
• Tighten fasteners to a torque of 20-22 in-lbs.
(2.25-2.50 N-m).
• Test all tractor controls and features before
returning the tractor to service.

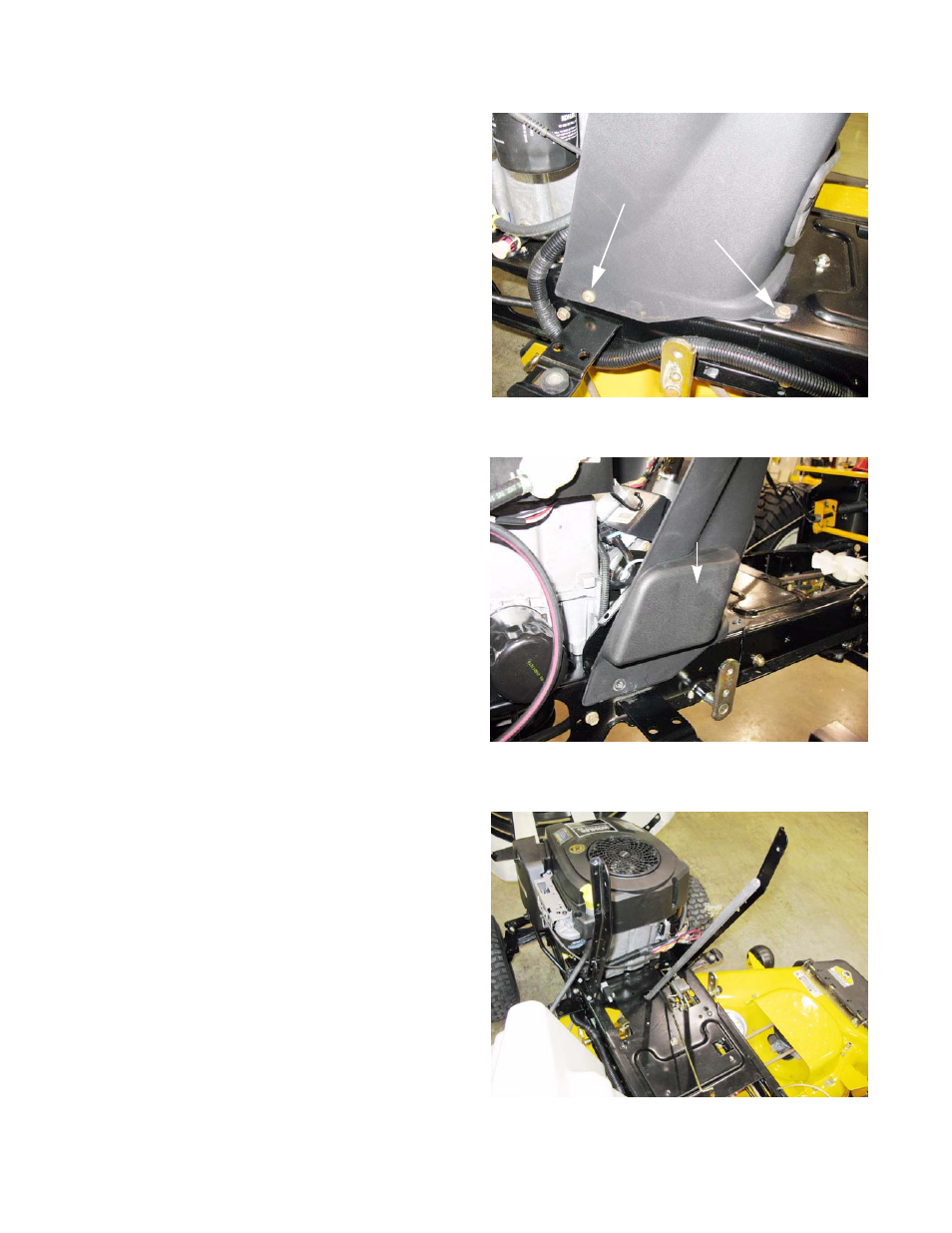

Figure 4.47
Torx head screw
Hex-head cap screw
Figure 4.48
EPS motor
cover
Figure 4.49
