LTX Tractors
154
Reverse Safety Switch
The Reverse Safety Switch is a simple metal contact
tang switch.
CVT transmissions
Tractors that have the CVT transmissions have the
reverse switch mounted on the left side of the frame, by
the rear wheel. When the tractor is placed in reverse, the
shift linkage will contact the switch providing a ground, See
Figure 7.15. This switch has a red wire with black trace
that goes directly to the RMC module. See Fig-
ure 7.15.
Hyrdostatic transmissions
Tractors equipped with a hydrostatic transmission
have the reverse switch mounted on the transmission,
next to the selector plate. See Figure 7.16.
This switch has a yellow wire with black trace con-
nected to it. The yellow wire with black trace plugs into the
main harness by the starter solenoid and becomes the red
wire with black trace that goes directly to the RMC module.
See Figure 7.17.

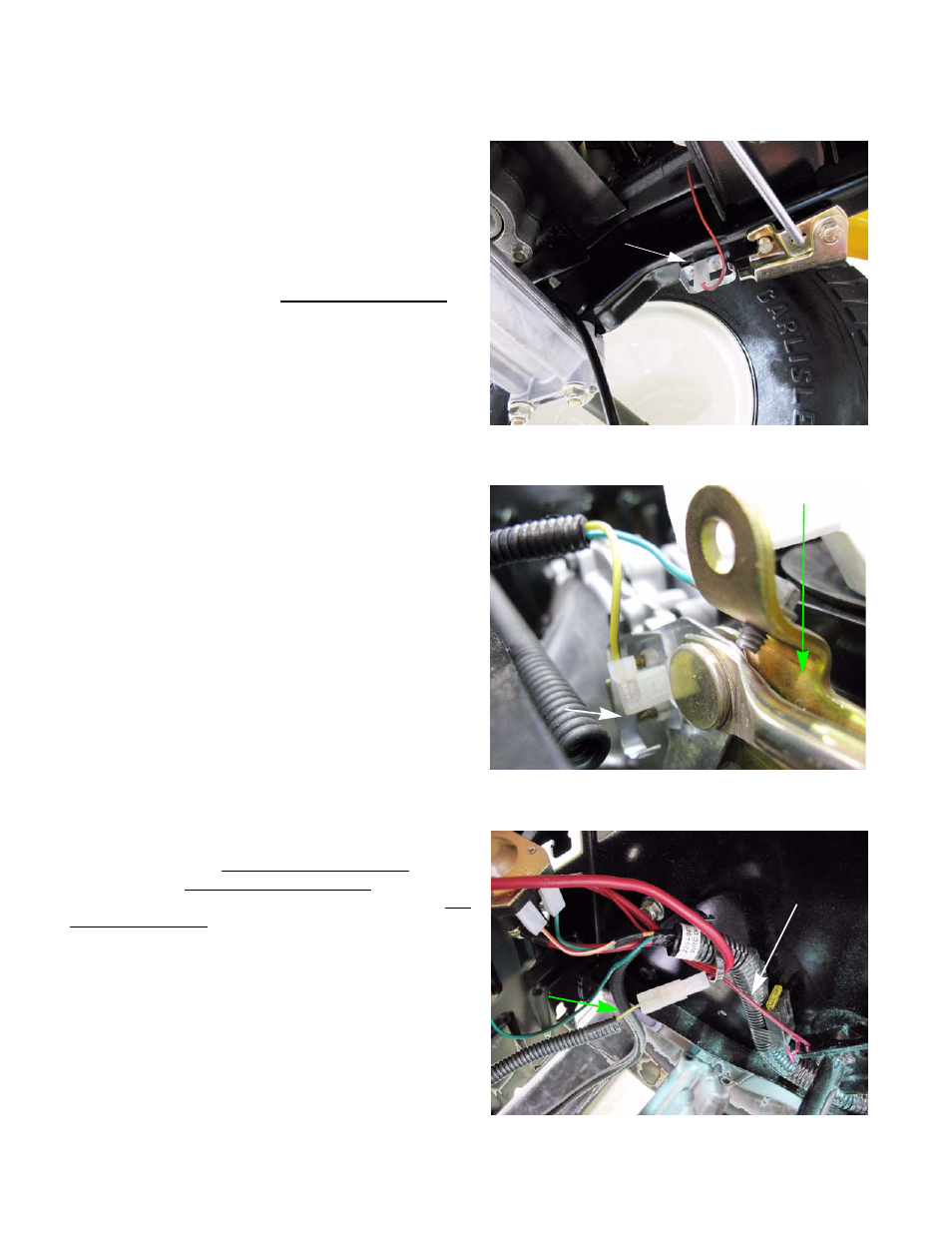

Figure 7.15
Reverse Safety
Switch
Figure 7.16
Reverse
Selector plate
switch
Figure 7.17
Red wire with
black trace
Yellow wire with
black trace
