CVT DRIVE AND BRAKE SYSTEM
117
10. The V-sheave tensioner pulley can be un-bolted from
the bracket using a 1/2” wrench.
11. The rod that connects the bracket to the clutch/brake
pedal shaft can be maneuvered to come out of its slot
in the bracket. See Figure 6.57.
12. Assemble and install the belt tensioner pulley by
reversing the steps used to remove and disassemble
it.
• Lubricate the pivot point with a good quality lith-
ium-base grease.
13. Reinstall the fenders.
14. Test the drive system and all safety features before
returning the tractor to service.

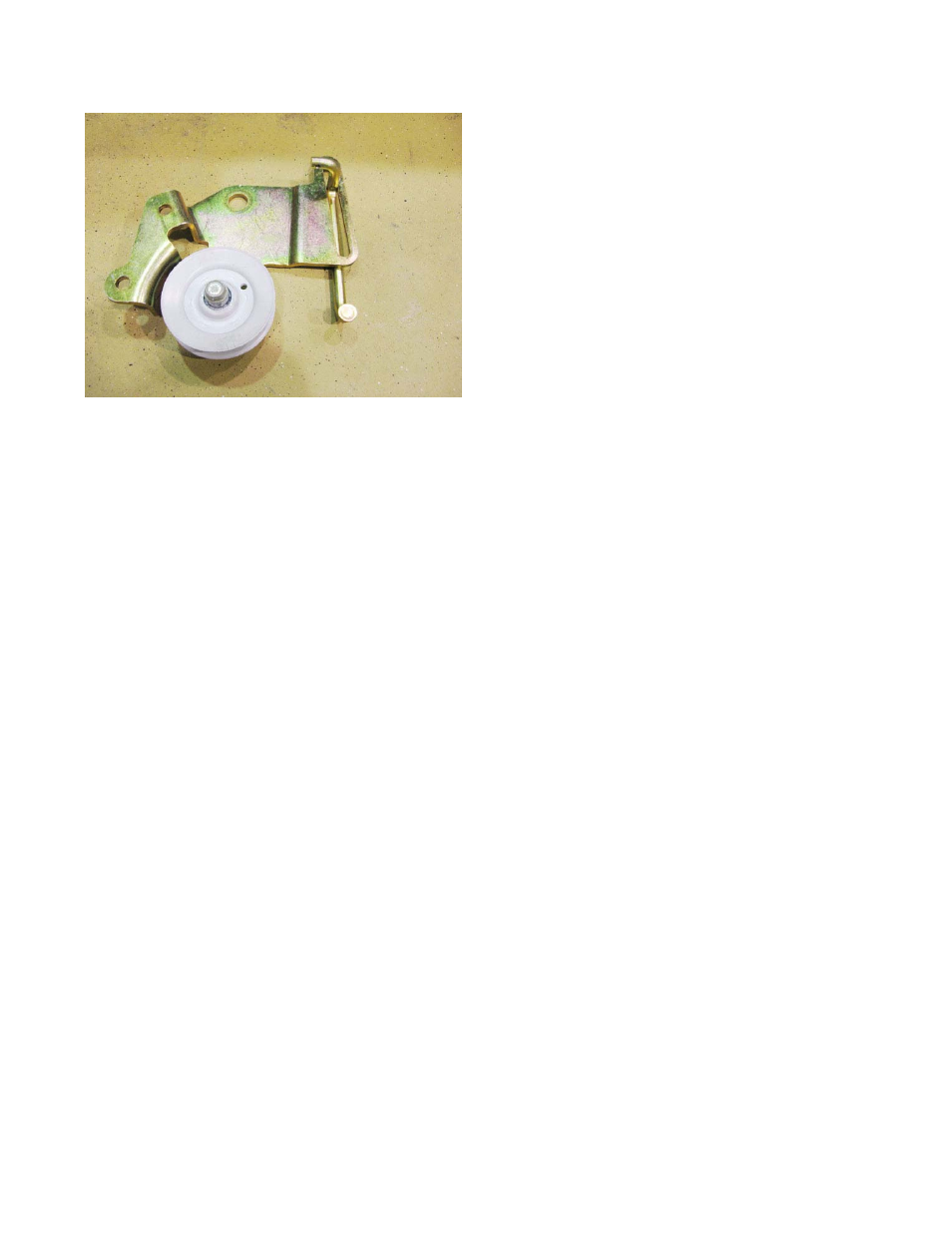

Figure 6.57
