LTX Tractors
12
Roll over valve vent
To remove the roll over valve:
1. Open the hood.
2. Disconnect the vent hose. See Figure 2.11.
NOTE: The vent hose will have a red trace.
3. Gently pry the roll over valve out of the fuel tank.
See Figure 2.12.
4. Inspect the rubber grommet, replace if damaged.
To install the roll over valve:
1. With the grommet on the roll over valve, install the
roll over valve by pressing it into the opening in the
tank.
2. Attach the vent hose to the roll over valve.
3. Test run the engine in a safe area before returning
to service.

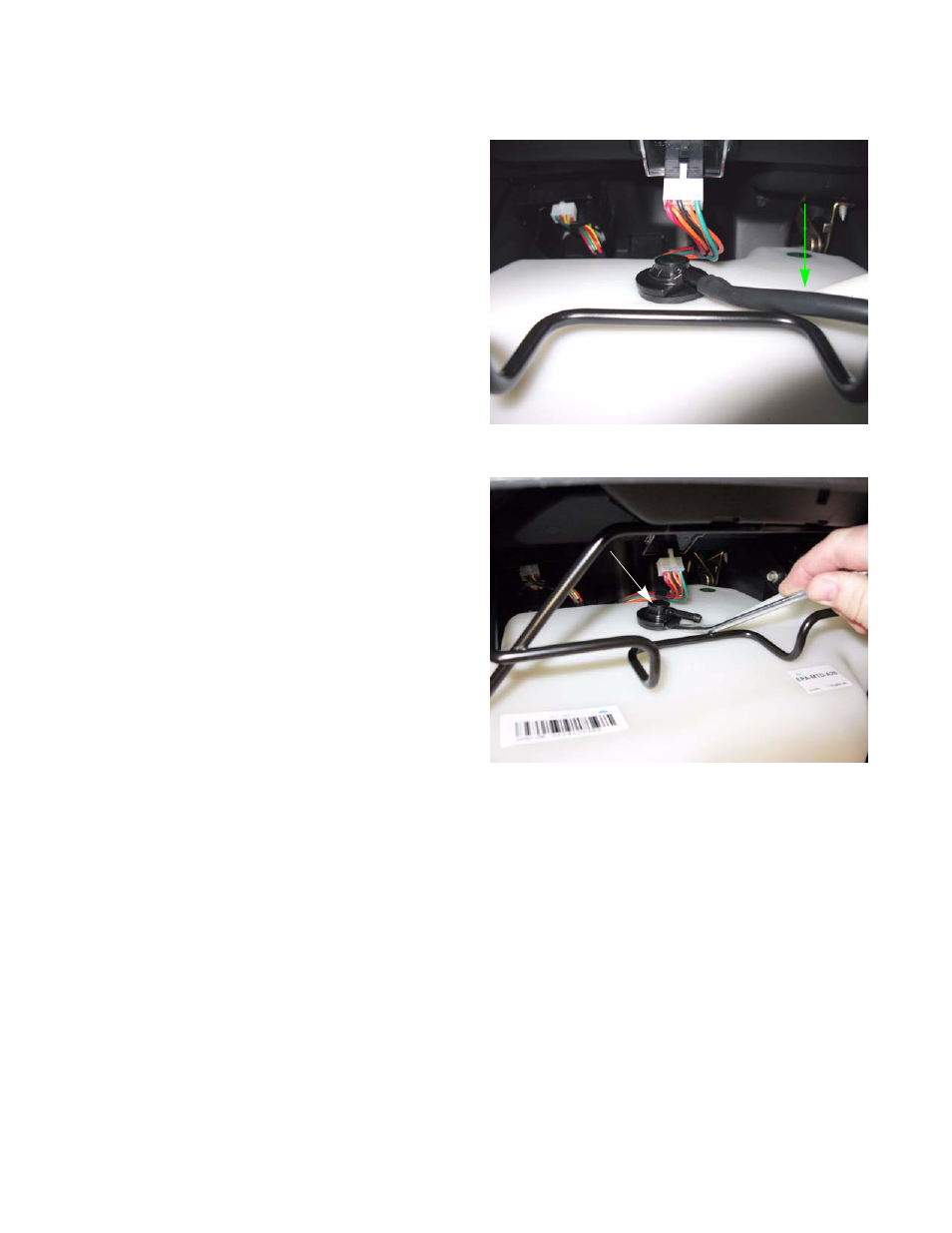

Figure 2.11
Vent hose
Figure 2.12
Roll over valve
