Cub Cadet SLTX1000 Series User Manual
Page 208

LTX Tractors
202
B. Remove the nut that secures the belt guard to
the right side of the frame using a 1/2” wrench.
See Figure 8.2.
C. Pull in on the belt guard and slide it towards
the rear of the tractor.
D. Slide the PTO belt off of the engine pulley.
E. Remove the hair pin clip that secures the PTO
cable to the deck. See Figure 8.3.
F. Unhook the spring end of the PTO cable from
the idler pulley bracket. See Figure 8.4.

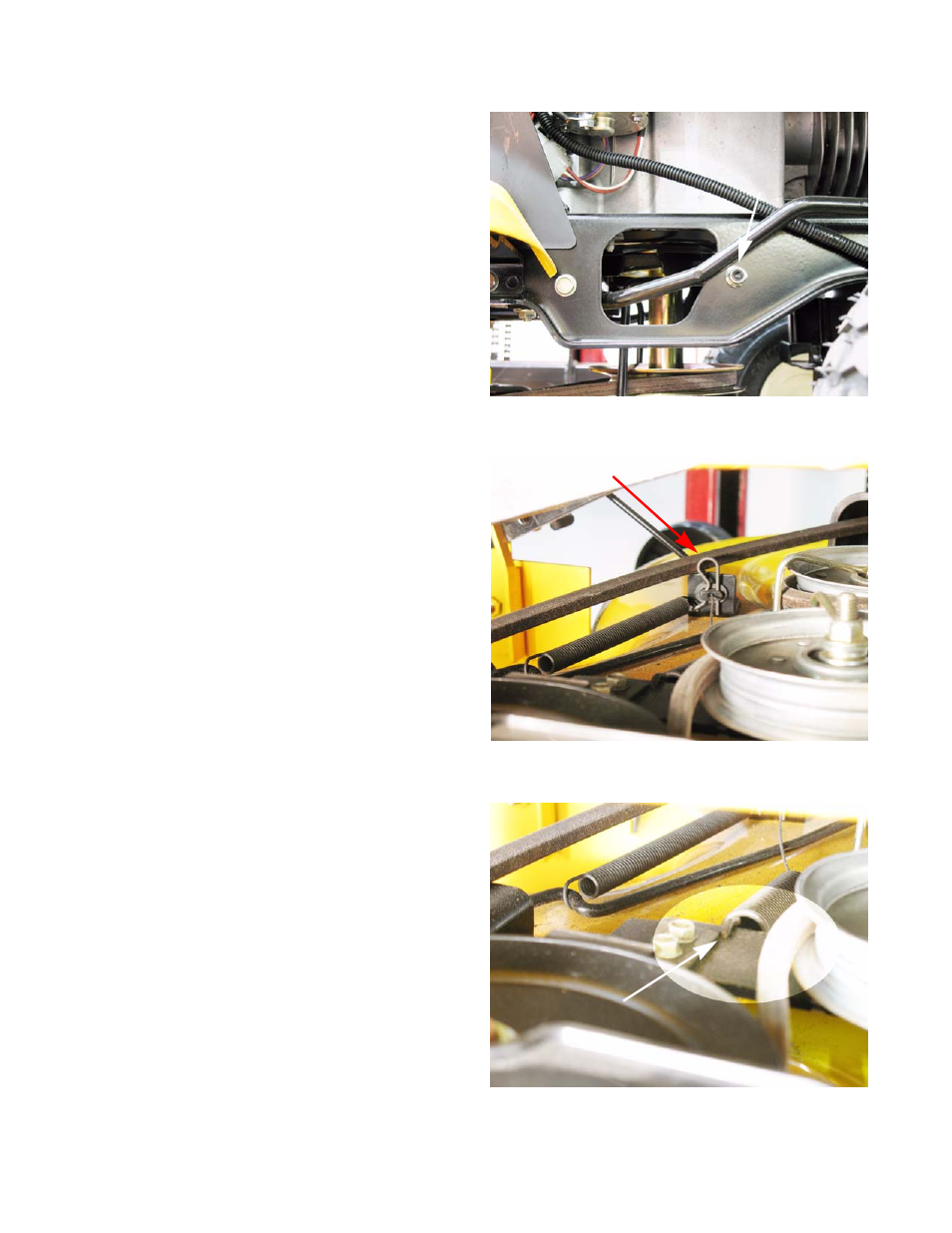

Figure 8.2
Remove this
nut
Figure 8.3
Remove this clip
Figure 8.4
Unhook this spring
