5.
Remove the lower (front) drive belt:
5a.
Slip the belt off of the two tensioner pulleys.
See Figure 6.63.
5b.
Roll the belt off of the lower sheave of the vari-
able speed pulley. See Figure 6.64.
NOTE: The belt can be walked-up from the lower
sheave to the upper sheave, then off.
Rotate the variable speed pulley to help slip
the belt past the belt keepers.
5c.
Remove the belt from the engine pulley.
Manual PTO
A. Loosen the crankshaft pulley using a 5/8”
wrench.
NOTE: An impact wrench and socket will be most
effective. Otherwise it may be necessary to
block the ring-gear to prevent the crankshaft
from turning .
B. Drop crankshaft pulley down far enough to let
the belt clear the belt keepers that are built
into the bottom of the frame. See Figure 6.65.

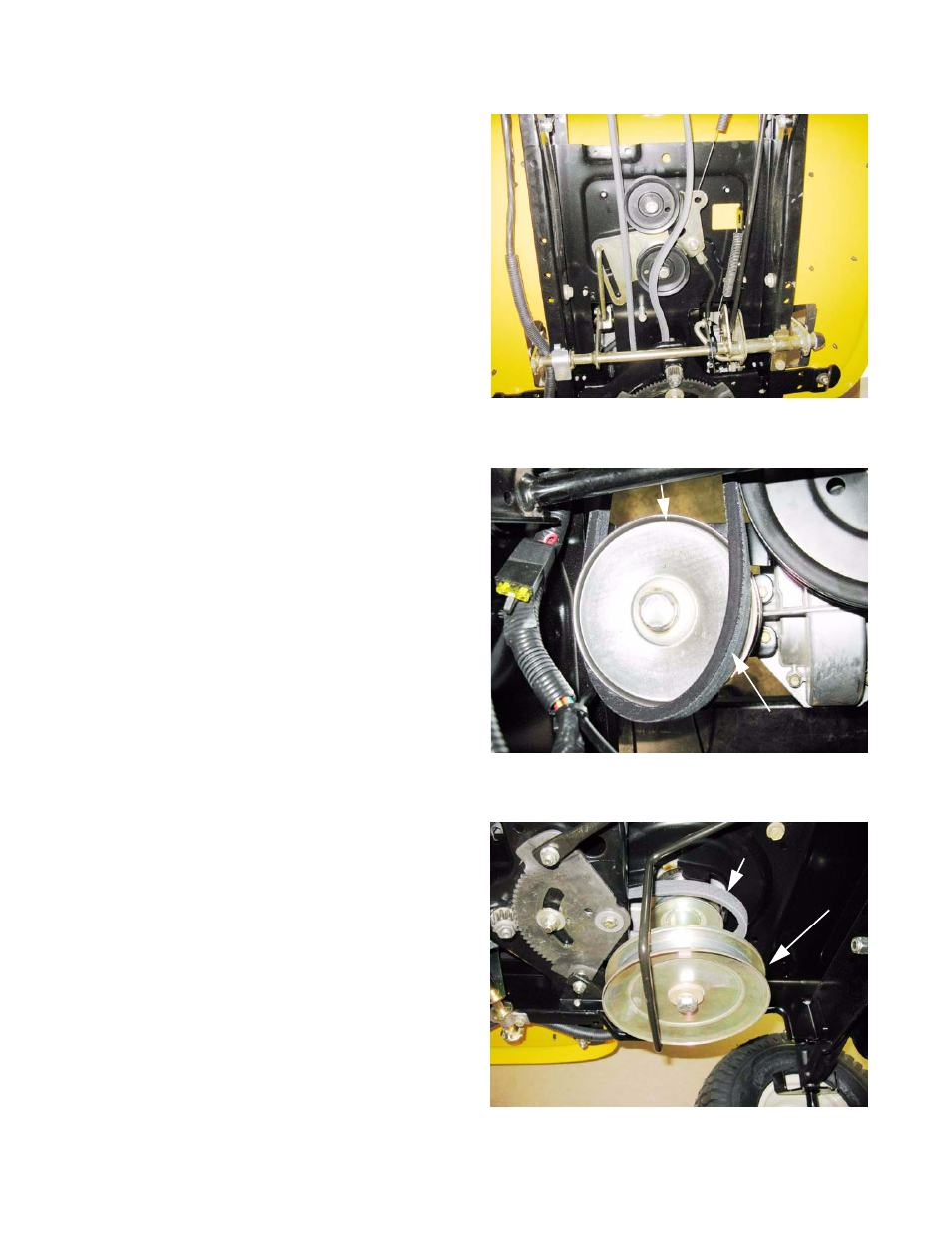

Figure 6.63
Figure 6.64
Lower belt
Variable speed pulley
Figure 6.65
Upper belt
Crankshaft pulley
