HYDRO. DRIVE AND BRAKE SYSTEM
73
5. Note the belt routing, then slip the drive belt off of the
two pulleys on the tensioning bracket.
6. Remove the nut and bolt that hold the belt tensioner
pulley bracket to the frame using a pair of 9/16”
wrenches. See Figure 5.38.
7. Maneuver the belt tensioner bracket assembly to
clear the belt, and remove it from the tractor.
See Figure 5.39.
NOTE: The bracket assembly pivots on the bolt that
passes through the fixed, flat-sheave idler pulley.
8. On the bench, the flat-sheave idler pulley, and the
spacers used to position it can be lifted off of the pul-
ley bracket. See Figure 5.40.

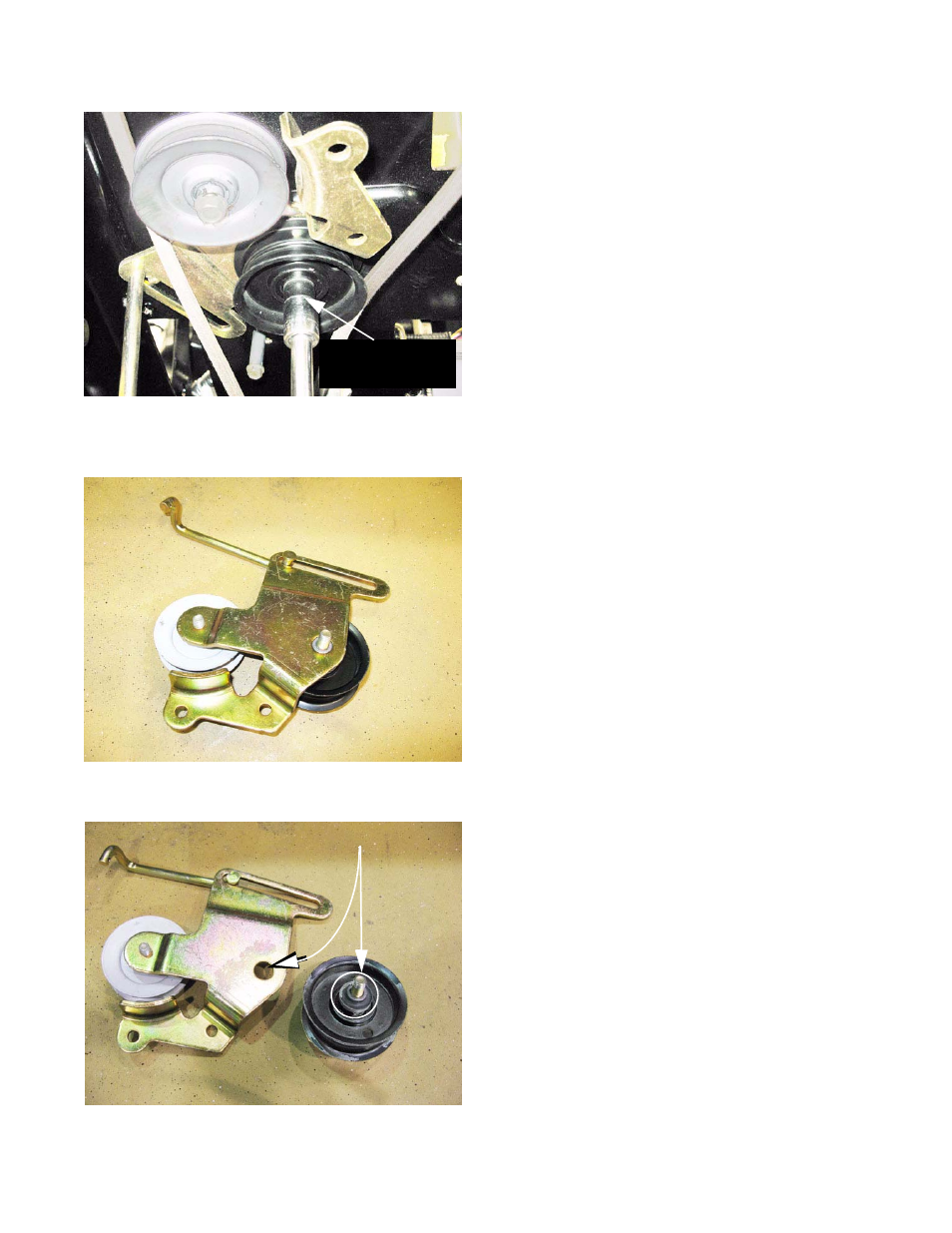

Figure 5.38
Remove this bolt.
Nut is above frame
Figure 5.39
Figure 5.40
Bracket pivot point
