Cub Cadet SLTX1000 Series - Manual (Page 11)

Engine Ralated Parts
5
This manual will cover the engine accessories that are manufactured by Cub Cadet.
IMPORTANT: Refer to the engine manufacturer’s manual for engine specific service information.
Muffler
Remove the muffler by following these steps:
NOTE: The muffler and the exhaust pipes are welded
together. They are replaced as one assembly.
1. Remove the hood and bumper by following the steps
described in Chapter 4: Body/Chassis.
2. Remove the two screws on each side that secure the
muffler guard bracket. See Figure 2.1.
3. Disconnect the muffler from the engine:
For single cylinder engines:
• Remove the two screws that secure the exhaust
pipe to the cylinder head. See Figure 2.2.

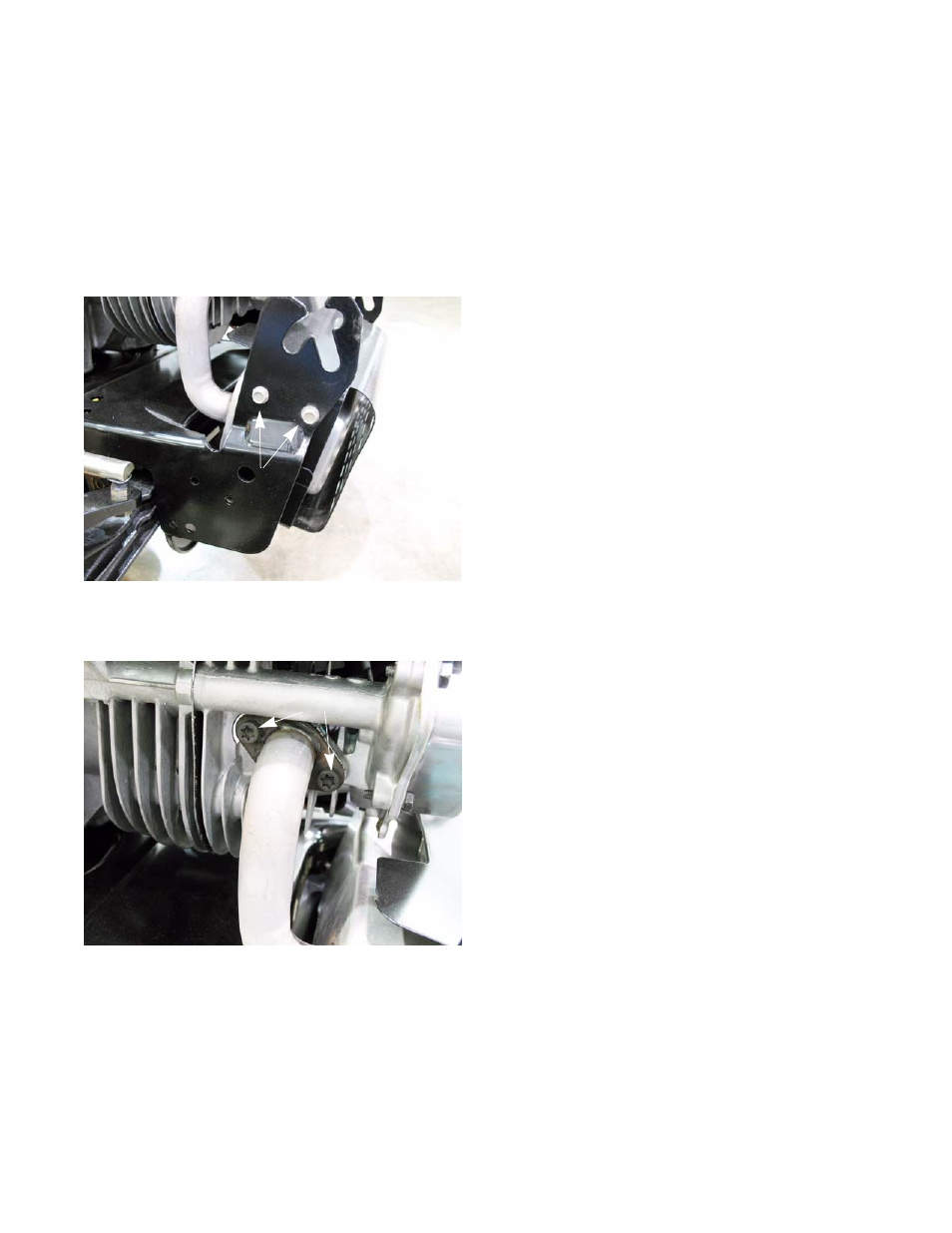

Figure 2.1
Screws
Figure 2.2
Screws
CHAPTER 2: ENGINE RELATED PARTS
