Electrical System

179

Digital multimeter

A DMM is the most useful tool to troubleshoot any

electrical system. There is an amazing variety of DMMs on
the market. Some are very basic, others are tailored to
specific industries, and some high-end graphing meters
function like oscilloscopes. Even the most basic ones are
quite versatile. See Figure 7.51.

Uses

Voltage

Set DMM to read “Volts DC (_ _ _)” if using an auto-

ranging meter or to an appropriate scale (typically 20 Volts
DC) if using a more basic model.

Connect the DMM in parallel to the circuit
being measured, between the test point and a
known-good ground. Turn on the circuit to be
tested, and read the meter. For most tests the
engine need not be running, but the key will
need to be turned on.

If the DMM is connected with the polarity reversed, a “-” will appear in front of the voltage reading. It has
no ill effects on the DMM nor on accuracy.

If the DMM is set to Volts AC (~) it may not register any DC voltage, but no physical harm will be done to
the DMM nor the equipment being diagnosed. It may waste some time though.

Amperage

Most DMMs have a very limited capacity to test amperage (10 Amperes). When measuring current flow, the

meter must be connected in series with the component to be measured. That means opening the circuit and having
the circuit go through the meter.

NOTE: Some DMMs have an inductive “Amp clamp” accessory that can be used without breaking the circuit.

IMPORTANT: Testing amperage beyond the capacity of the DMM can burn out an internal fuse or cause seri-

ous damage.

Resistance

Set the meter for the “

Ω” scale.

Isolate the part of the circuit to be tested (disconnect it from the source of power).

Most auto-ranging meters will provide readings on several scales. For outdoor power equipment, the stan-
dard Ohm scale is most appropriate. If a letter appears next to the W on the screen of the DMM, it indi-
cates different scales of sensitivity.

μis micro-Ohms, which is 1,000,000th (0.000001) of an Ohm

• “m” is milli-Ohms, which is 1,000th (0.001) of an Ohm.

• “K” is Kilo-Ohms, which is 1,000 Ohms

.

• “M” is Mega-Ohms, which is 1,000,000 Ohms

A reading of “0” may be called “Continuity”. A reading of “OL” may be referred to as “No Continuity”.

Mistaken Ohm readings most frequently come from bad technique. Poor connections between the probes
and the point to be read can throw readings off. False readings can also be generated if the technician
touches both probes with their fingers while taking the reading.

The meter has it’s own power source to measure resistance. Connecting the meter to a component that
has current from another source going through it may seriously damage the meter.

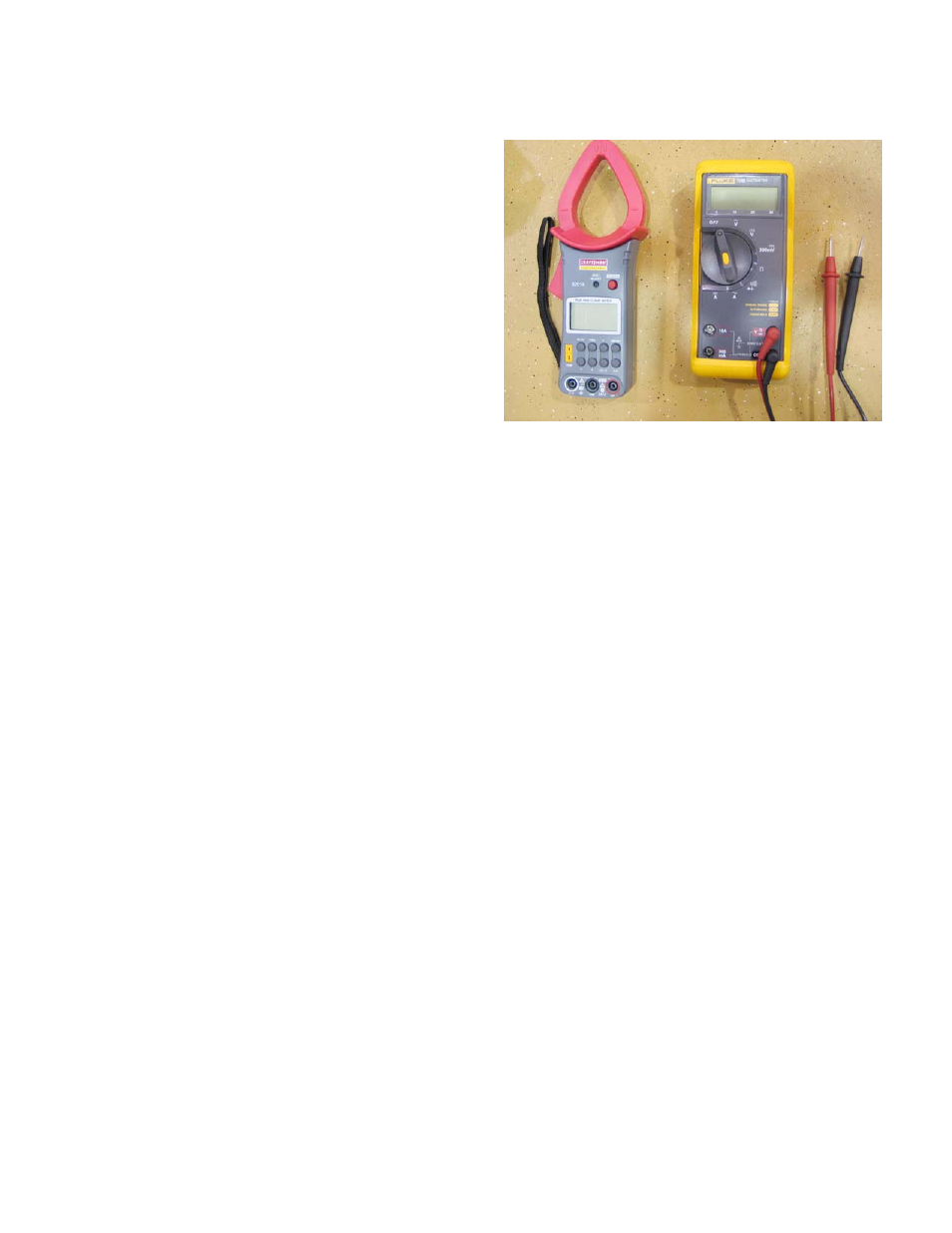

Figure 7.51
