CVT DRIVE AND BRAKE SYSTEM

103

4.

Remove the locking clip that holds the travel limit pin
in place.

5.

Withdraw the travel limit pin. See Figure 6.22.

6.

Unhook and remove the clutch/brake pedal return
spring.

7.

Remove the cotter pin and flat washer that hold the
brake rod into the latch plate. Discard the cotter pin.

8.

Remove and discard the cotter pin that holds the ten-
sioner pulley control rod to the “cobra head” arm on
the drive control pedal. See Figure 6.23.

9.

Remove and discard the push cap that holds the
drive control pedal shaft onto the clutch/brake shaft.
See Figure 6.24.

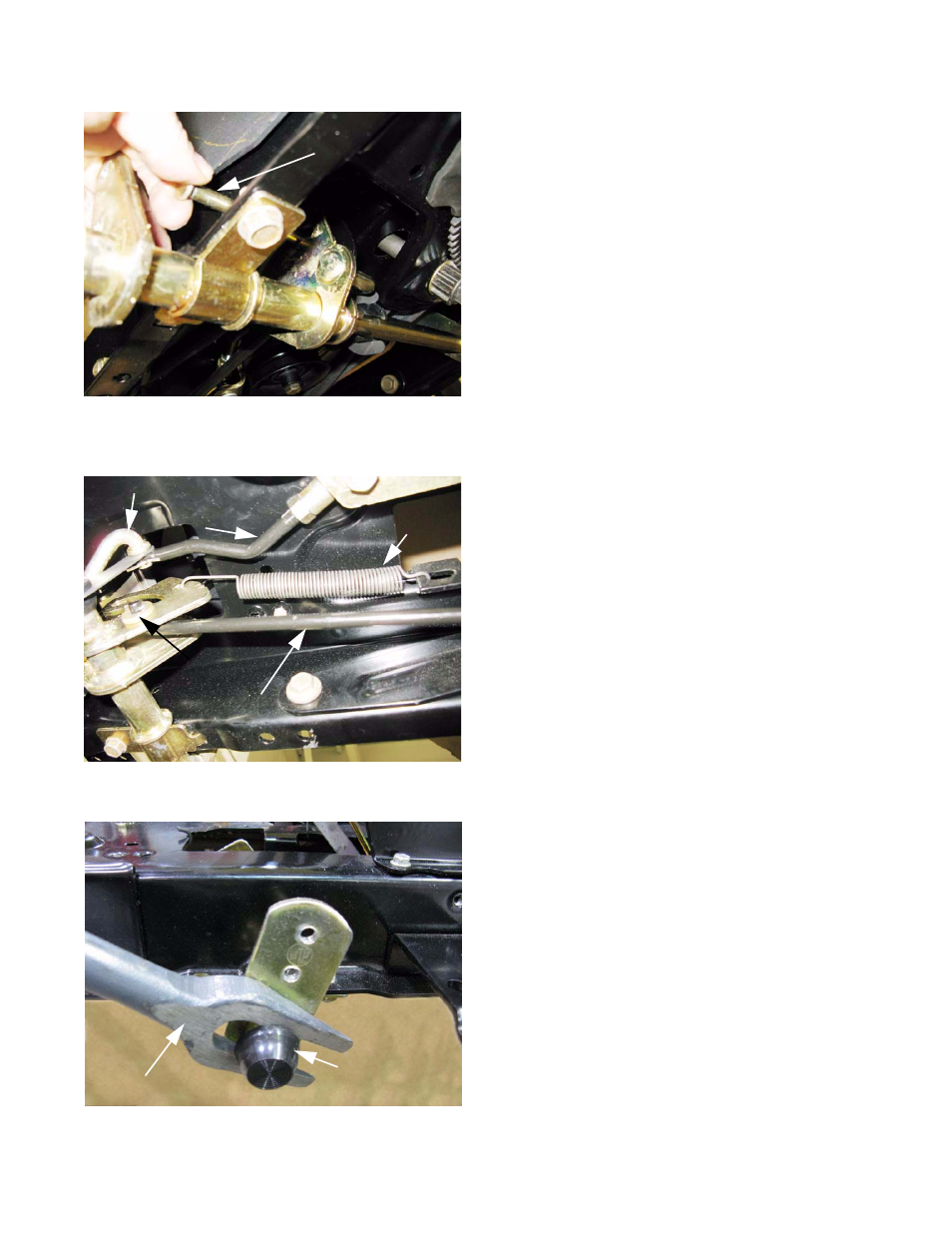

Figure 6.22

Travel limit pin

Figure 6.23

Return spring

Flat washer

Brake rod

Cobra head

Control rod

Figure 6.24

Tie-rod
separator

Push cap
