CVT DRIVE AND BRAKE SYSTEM
121
C.
Work the belt past the PTO pulley, and with-
draw it from the front of the tractor.
See Figure 6.66.
Electric PTO
A.
Remove the belt keeper near the crankshaft
using a 1/2” wrench.
• One bolt holds the belt keeper to the frame, to the
left side of the engine.
• A nut holds the belt keeper to the right side frame
channel.
NOTE: The electric PTO belt keeper incorporates an anti-
rotation bracket for the PTO clutch.
B.
Disconnect the PTO clutch electrical plug from
the harness.

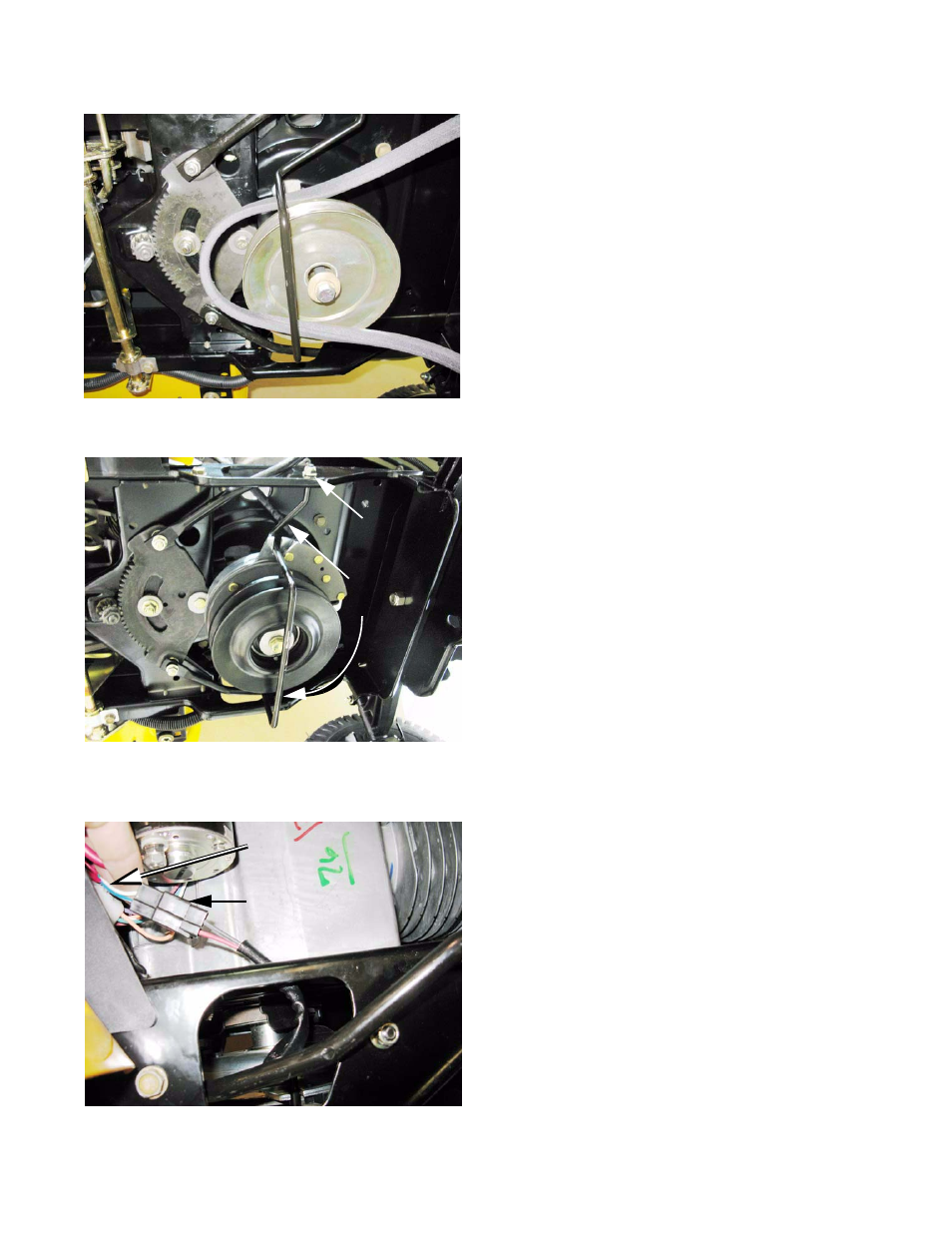

Figure 6.66
Figure 6.67
Nut
Belt keeper
Bolt
Figure 6.68
Wire harness
PTO clutch plug
