LTX Tractors
34
8. Remove the two screws securing the left dash sup-
port to the frame using a 3/8” wrench.
See Figure 3B.18.
9. Slide the left dash support off of the EPS motor.
10. Remove the two screws securing the EPS bracket
to the frame.
11. Lift the EPS out of the tractor.
NOTE: The EPS output shaft will pass through a
spacer, and a bushing. See Figure 3B.19.
12. Install the EPS by following the previous steps in
reverse order.
NOTE: The washer that goes in-between the pinion
gear and the steering housing must be held
in place, under the tractor, while inserting the
EPS into the steering housing.
13. Test drive the tractor in a safe area before returning
it to service.
NOTE: Do not put a tractor into service with any
safety or control features that are not work-
ing properly.

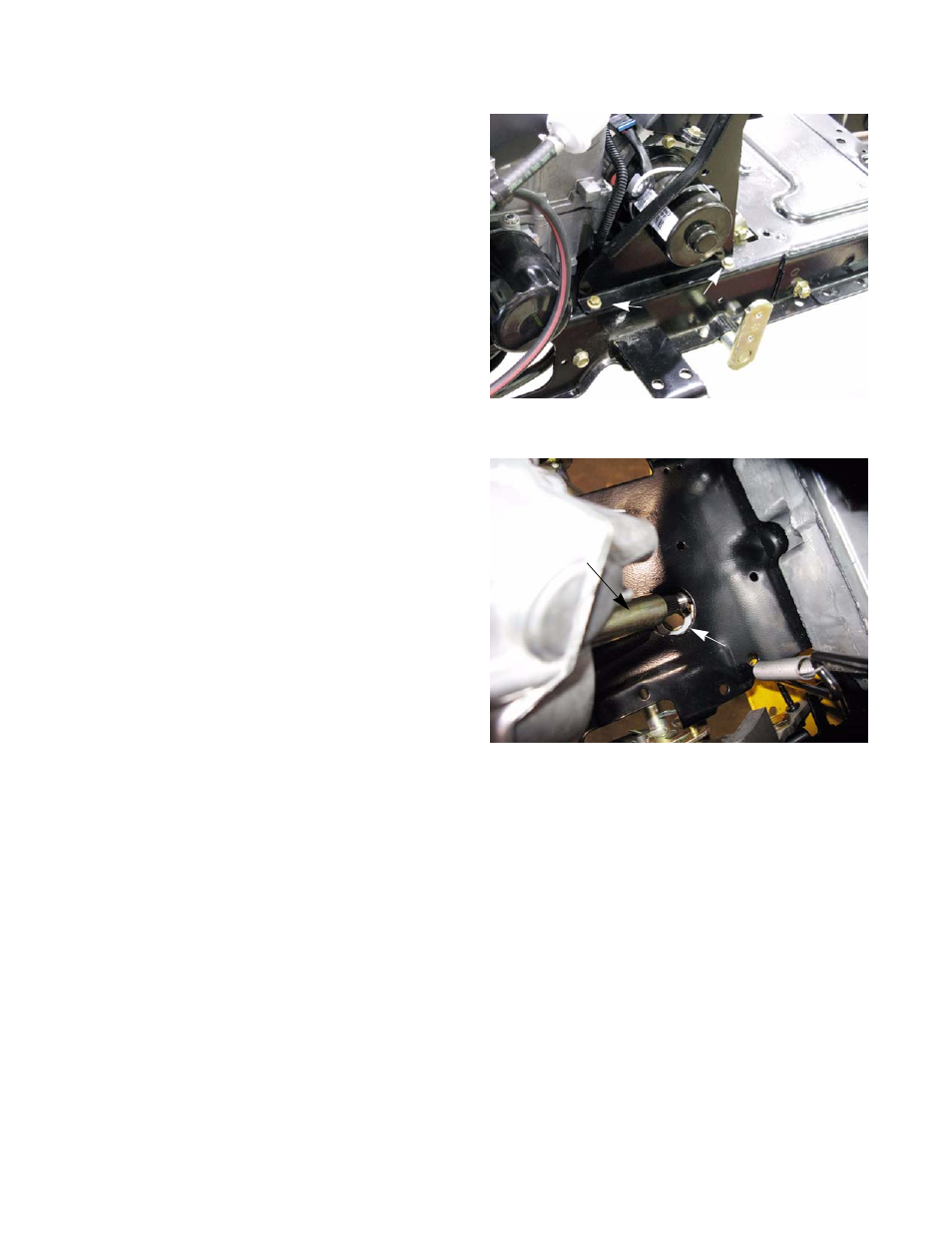

Figure 3B.18
Screws
Figure 3B.19
Bushing
Spacer
