Run Circuit / Reverse Caution mode
1. With the key in Reverse Caution mode, A1 gets
power from the B terminal, just like the normal run
position.
2.
In addition, A2 is internally connected to the L termi-
nal. L is normally used for the lighting circuit.
2a.
In this case, a separate lighting circuit draws
power from A1
2b.
L is connected to the ground wire on the G ter-
minal by a jumper.
3.

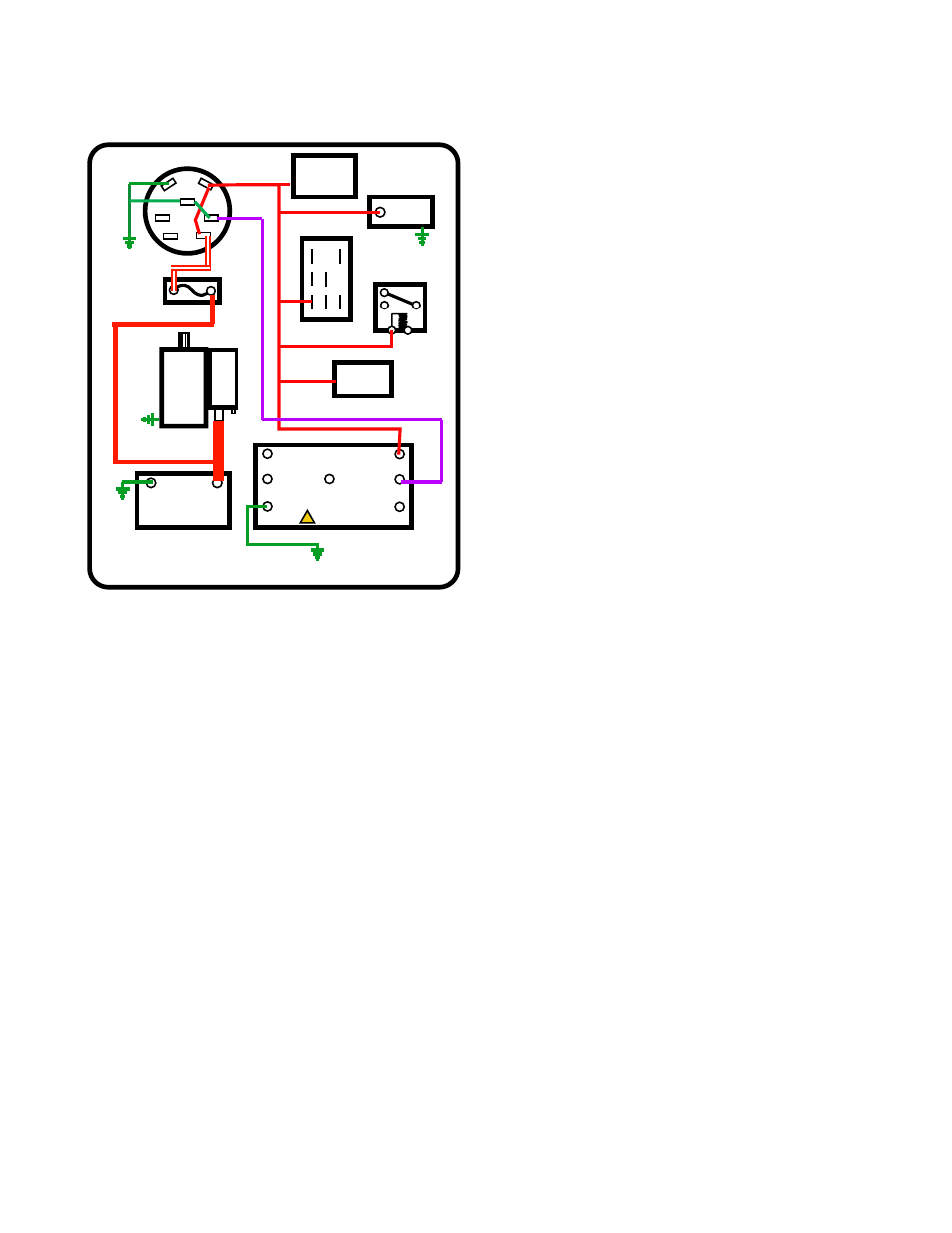

The RMC module arms when it gets a ground signal
from A2 through the “A2 pwr” terminal on the RMC
module. See Figure 7.26.
