NOTE: When installed, the head of the bolt that
holds the bracket assembly to the tractor
rests against the shouldered side of the flat
sheave idler pulley. See Figure 5.41.
• When installed, the spacers fit against the flat
side of the flat sheave idler pulley.
See Figure 5.42.
9. The V-sheave tensioner pulley can be un-bolted
from the bracket using a 1/2” wrench.
10. The rod that connects the bracket to the clutch/
brake pedal shaft can be maneuvered to come out
of its slot in the bracket. See Figure 5.43.
11. Assemble and install the belt tensioner pulley by
reversing the steps used to remove and disassem-
ble it.
• Lubricate the pivot point with a good quality lith-
ium-base grease.
12. Reinstall the fenders.
13. Test the drive system and all safety features before
returning the tractor to service.

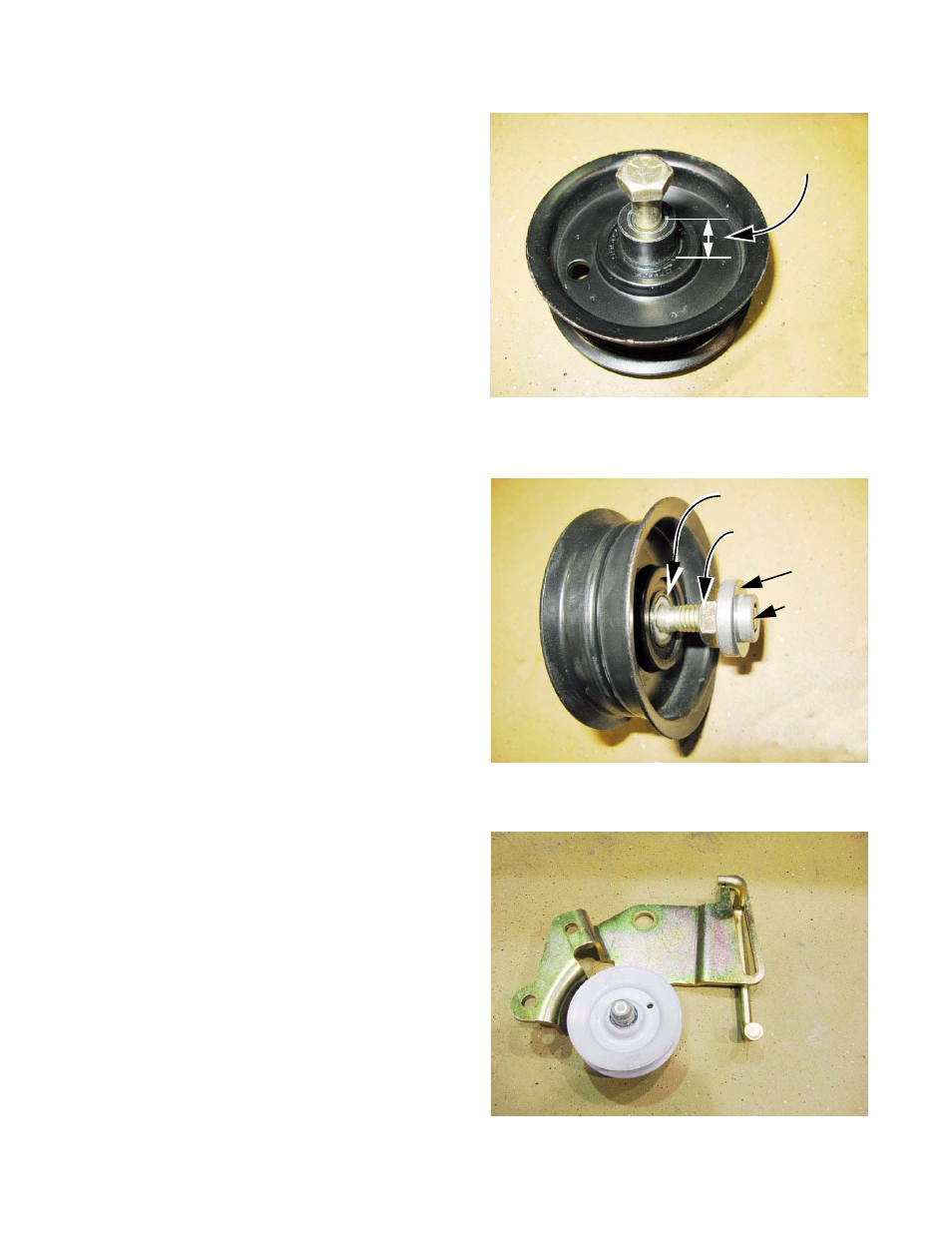

Figure 5.41
Shoulder height
Figure 5.42
Flat surface
Hex bushing
Shoulder bushing
Bolt
Flat sheave pulley
Figure 5.43
