Cub Cadet SLTX1000 Series User Manual
Page 94

LTX Tractors
88
14.
Remove the torque bracket bolts using a 1/2”
wrench. See Figure 5.78.
15.
Take the nuts off of the T-bolts that hold the tran-
saxle to the frame using a 1/2” wrench.
See Figure 5.79.
NOTE: At this point, the brake actuator spring is still
attached to the brake rod from the pedal
shaft, and the brake arm on the transaxle.
16.
Carefully lower the transaxle out of the tractor.
See Figure 5.80.

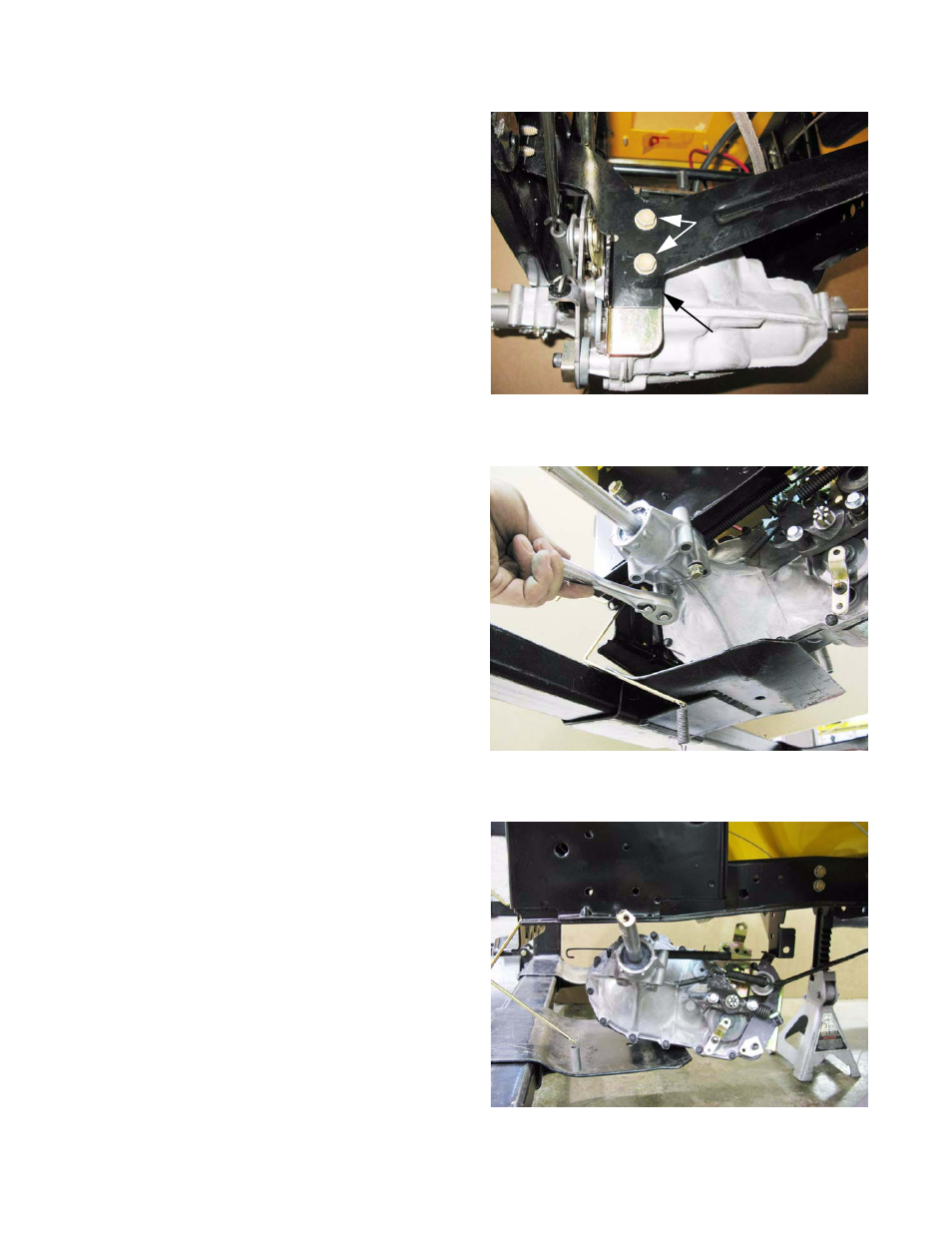

Figure 5.78
Torque bracket
Bolts
Figure 5.79
Figure 5.80
