7. Remove and discard the push cap that holds the
drive control pedal shaft onto the clutch/brake shaft.
See Figure 5.25.
8. Loosen the bolt that holds the left pedal shaft sup-
port strap using a 1/2” wrench. See Figure 5.26.
9. Remove the bolt that holds the right pedal shaft sup-
port strap using a 1/2” wrench.
NOTE: This will allow the pedal shaft assembly to
hang-down slightly on the right side of the
tractor.
10. Disconnect the drive control rod from the drive
pedal latch plate. See Figure 5.27.
• Remove and discard the cotter pin.
• Unhook the drive control rod.

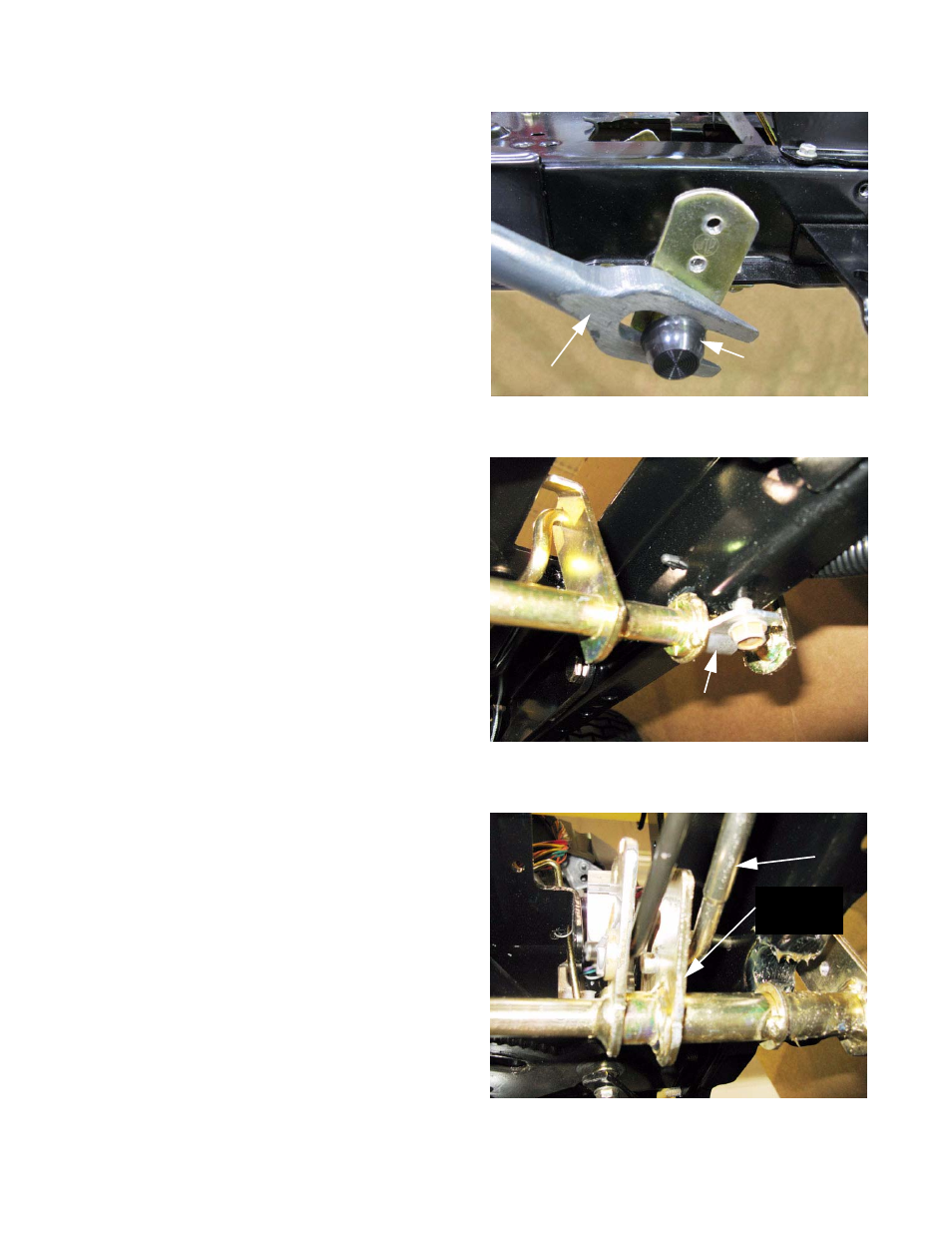

Figure 5.25
Tie-rod
separator Push cap
Figure 5.26
Left pedal shaft support strap
Figure 5.27
Drive control
rod
Drive pedal
latch plate
