LTX Tractors
36
Hood
Hood removal:
1.
The hood is front-hinged. See Figure 4.2.
2.
Open the hood by lifting the rear edge to tilt it for-
ward.
3.
Disconnect the headlight wires. See Figure 4.3.
NOTE: The ground terminals and power terminals
on the headlights are two different sizes.
The green wires (ground) fit the larger termi-
nals. The red wires (power) fit the smaller
terminals.
4.
The hood hinges on a pair of shoulder bolts that fit
into slots in the hood bracket.
5.
The hinge travel is limited by a tab that fits into a
channel in the hood bracket.
6.
Open the hood far enough to align the tabs with the
slots, then lift the hood off of the tractor.
See Figure 4.4.

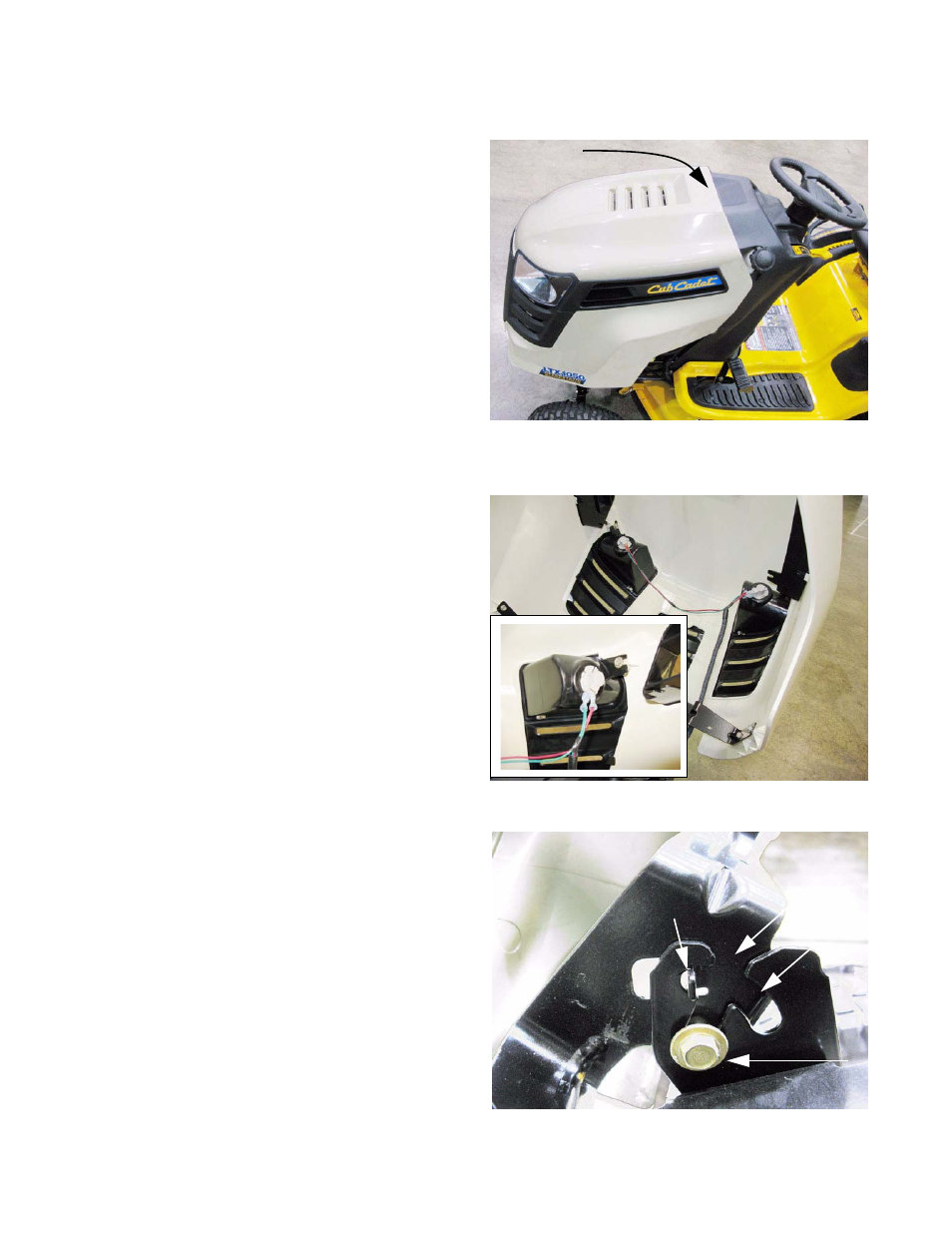

Figure 4.2
Lift here
Figure 4.3
Inset: headlight detail
Figure 4.4
Channel
Slot
Tab
Shoulder bolt
