LTX Tractors
210

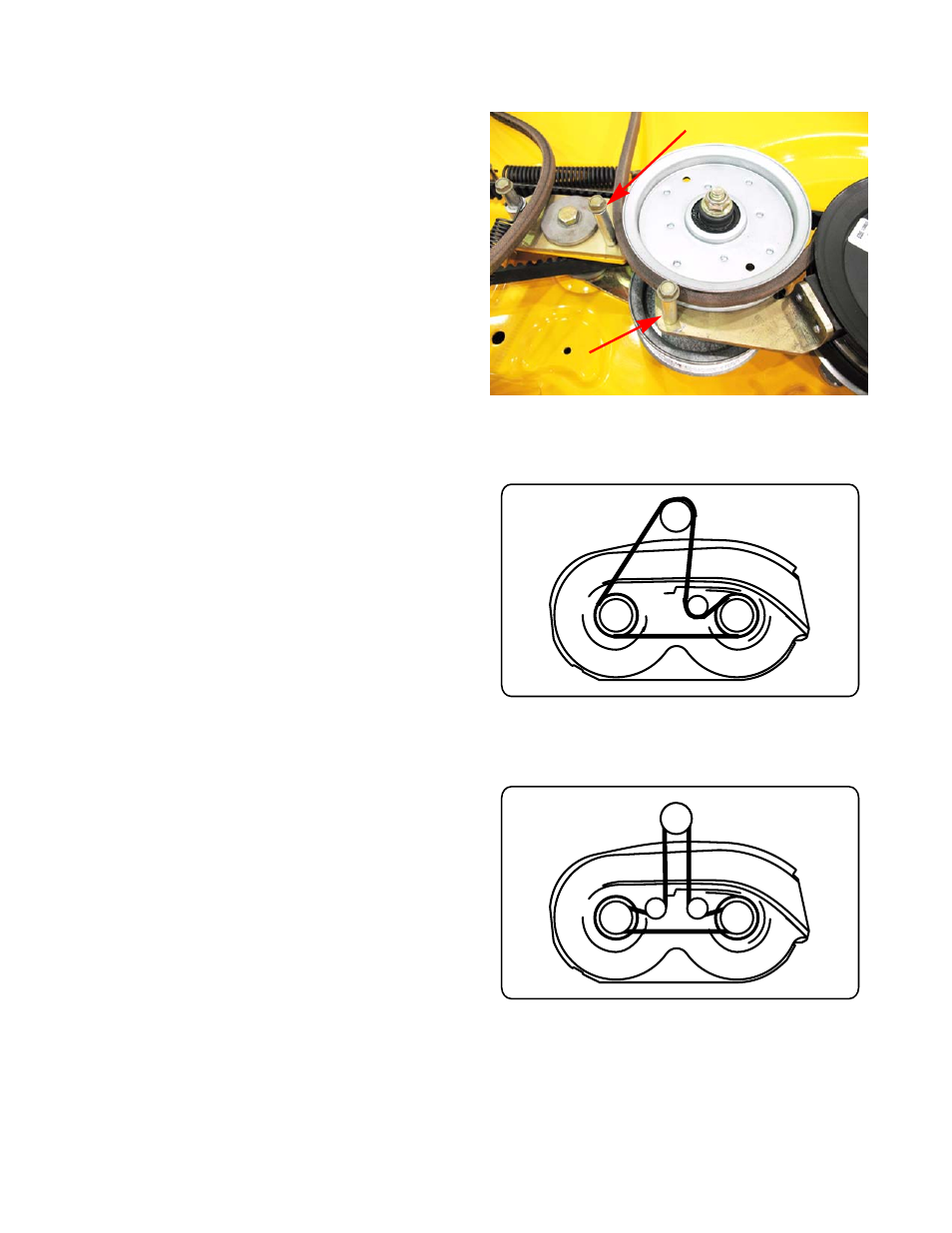

NOTE: On the 50” and the 54” deck, The belt
keeper on the brake side of the idler bracket
must be removed and the other belt keeper
needs to be loosened. See Figure 8.16.
4.
Route the new belt around the pulleys.
•
For a 38” “F” deck, See Figure 8.17.
•
For a 42” “G” deck and a 46” “T” deck,
See Figure 8.18.
Figure 8.16
Remove this
belt keeper
Loosen this belt keeper
Figure 8.17
Figure 8.18
