CVT DRIVE AND BRAKE SYSTEM
95
3b.
If the linkage is working properly, but the brakes
seem to be dragging, check the brake yoke.
The linkage is not adjustable. See Figure 6.3.
• When the brakes are released, it should be possi-
ble to wiggle the brake rotor within the yoke.
• If the rotor is tight in the caliper, check the yoke
adjustment.
• If the rotor is tight in the yoke, check the operation
of the yoke to confirm that it is not stuck.
• When the brake pedal is released, the brake arm
on the yoke should fall completely back against the
axle housing.
4.
Check the drive belts. See Figure 6.4.
• In normal use, drive belts typically last for years
without problems.
• If the belt fails prematurely, identify and correct the
cause of the belt failure before returning the tractor
to service.
4a.
Look-up the part number for the belts, and con-
firm that the correct OEM belts are on the trac-
tor.
4b.
Check the belt routing.
4c.
Check the brake/clutch linkage and belt ten-
sioning pulleys.
4d.
Check for foreign objects jammed against the
belt.
4e.
Check for missing or out-of-place belt guides.
See the belt replacement section of this chap-
ter.
4f.
Check the engine crankshaft and transaxle
input pulleys; Confirm that the sheaves are not
spread-out, causing a loose belt fit.

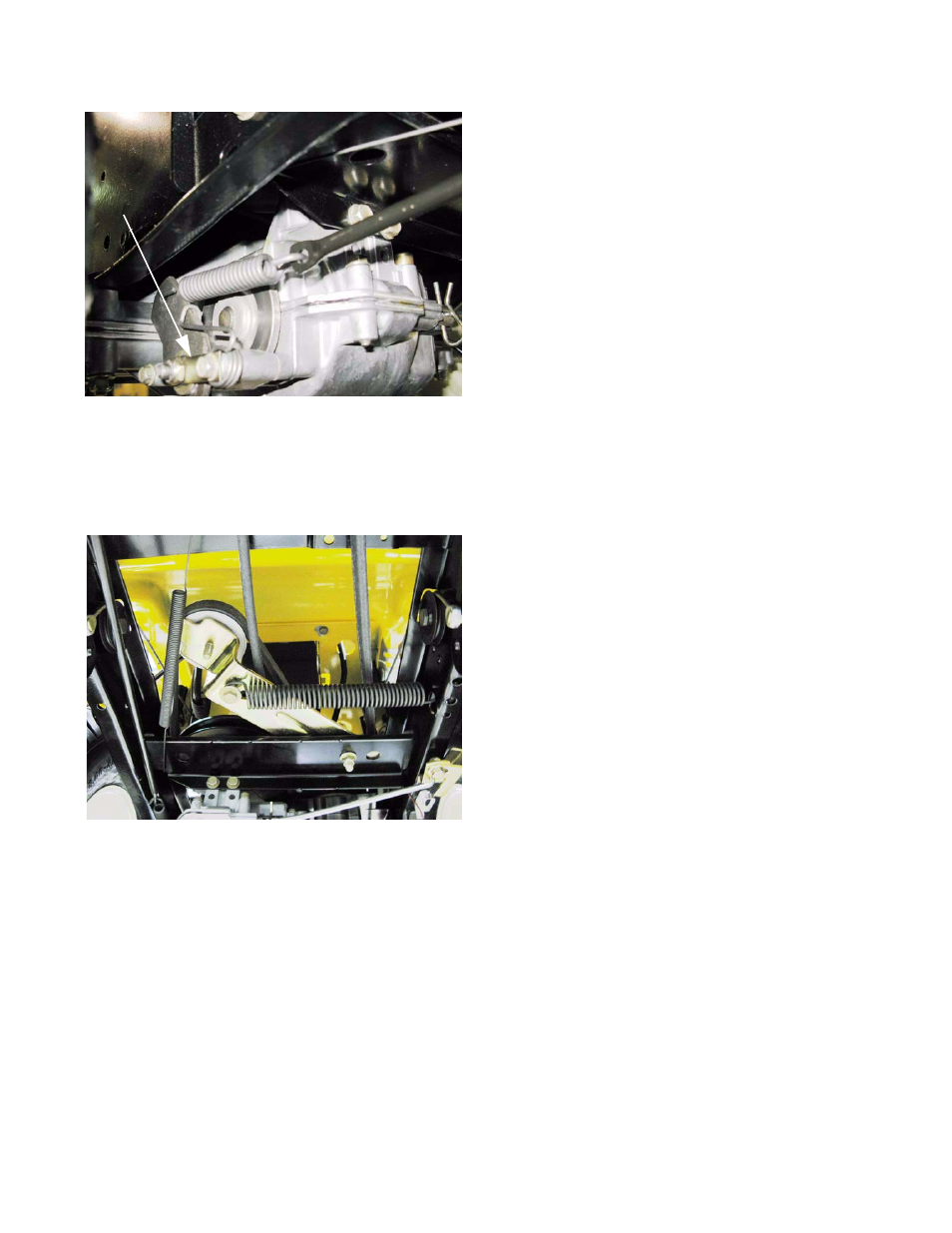

Figure 6.3
Brake yoke
Figure 6.4
