LTX Tractors
156
Starter solenoid
The starter solenoid is mounted inside the seat box sec-
tion of the frame. See Figure 7.19.
The starter solenoid can be accessed by removing the
battery box and reaching through the opening.
See Figure 6.20.
When the proper safety conditions are met (brake
applied/ PTO OFF), the orange wire with white trace ener-
gizes the windings that magnetize an iron core, pulling the
contacts closed between the two heavy posts, connecting
battery power to the starter motor.
The green wire provides a ground for the coil inside the
starter relay.

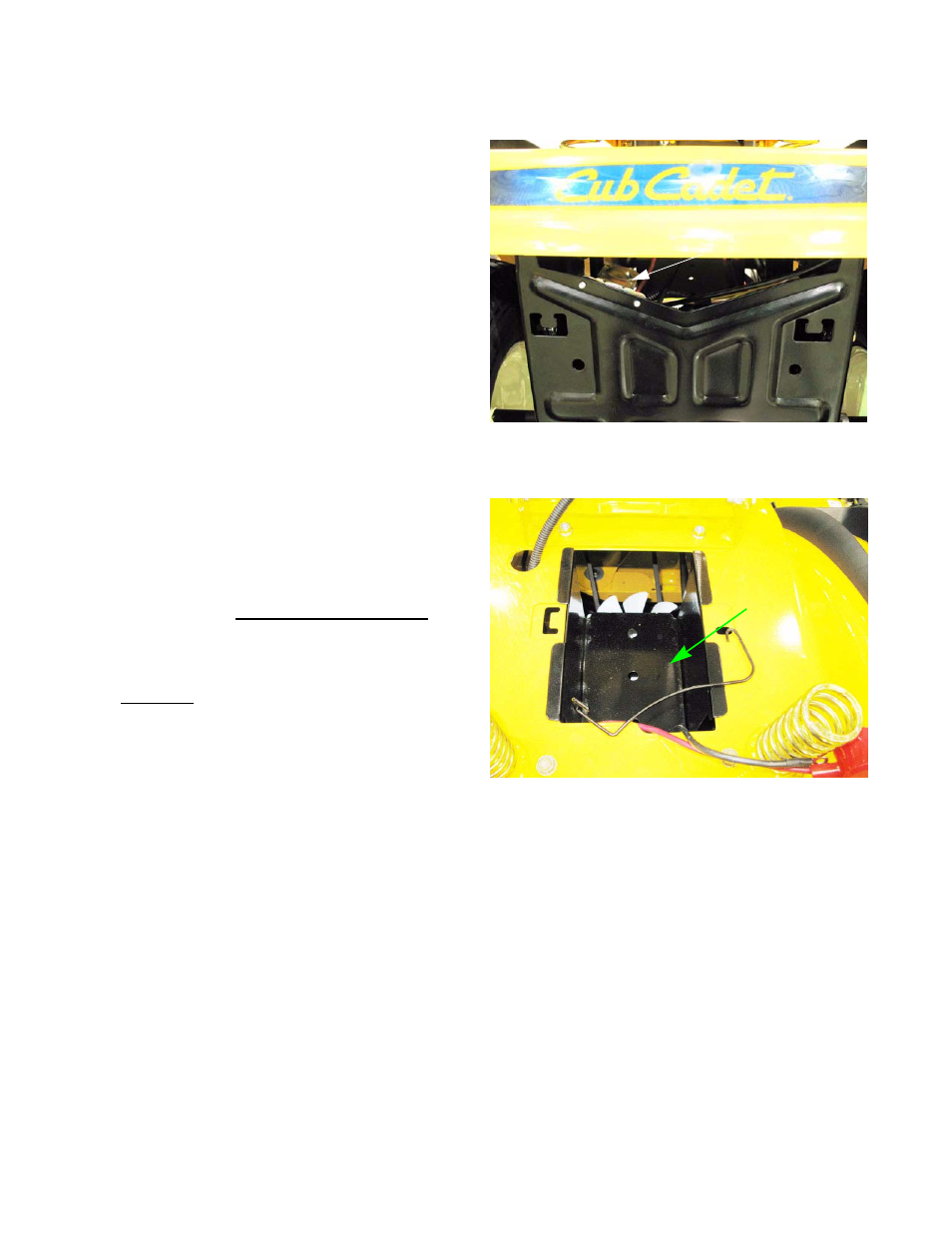

Figure 7.19
Starter solenoid
Figure 6.20
Battery box
(battery removed)
