CVT DRIVE AND BRAKE SYSTEM
119
NOTE: Use a rope to unhook the spring from the frame.
See Figure 6.60.
4b.
Loosen the tension idler pulley from its bracket
using a 1/2” wrench.
4c.
Lift the pulley far enough to allow the belt to
clear the belt keepers. See Figure 6.61.
4d.
The slack created will allow the upper belt to
slip easily out of the top sheave of the variable
speed pulley and off of the transmission input
pulley. See Figure 6.62.
4e.
Withdraw the belt through the battery opening
under the seat.

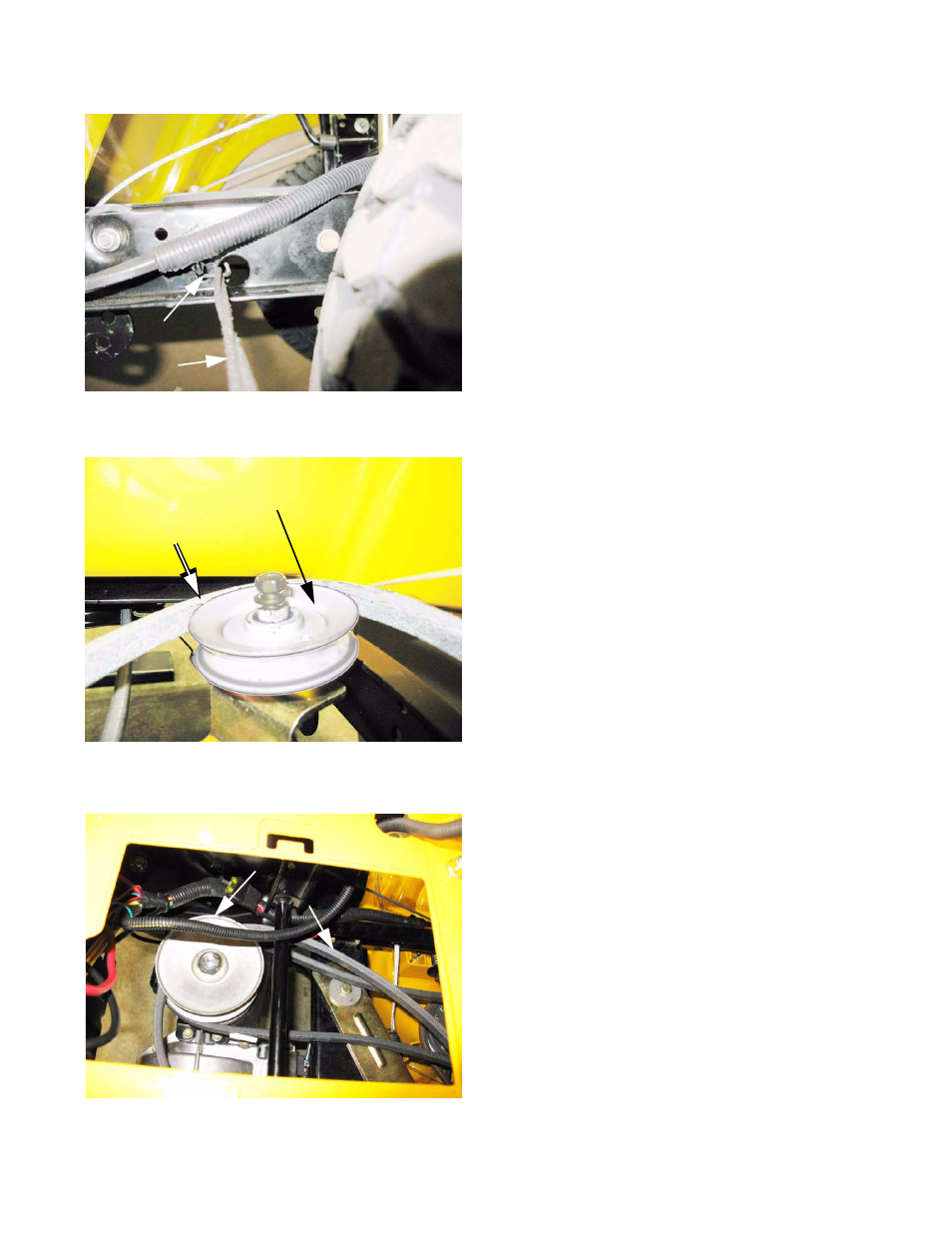

Figure 6.60
End of spring
Starter rope
Figure 6.61
Tension idler pulley
Rear drive belt
Figure 6.62
Variable speed pulley
Upper belt
