NOTE: Some belt covers have belt guides built into
them. See Figure 8.13.
5.
Remove the pulley nut using an impact wrench with
a 15/16” socket.
6.
Install the spindle pulleys by following the above
steps in reverse order.
7.
Test run the tractor before returning to service.
To replace a spindle:
1.
Remove the deck as described at the beginning of
this chapter.
2.
Remove the blade following the steps described in
the previous section of this chapter.
3.
Remove the belt covers.
4.
Slip the PTO belt off of the spindle pulley that is to
be serviced.
NOTE: Timed decks will need to have the timing
belt removed also.
5.
Remove the four bolts fastening the spindle to the
deck. See Figure 8.14.
6.
Lift the spindle out of the deck shell.
7.
Install the spindle by following the above steps in
reverse order.
NOTE: The four spindle bolts are self tapping bolts. The new spindle housing will not have threads in it.
NOTE: Tighten the spindle bolts to a torque of 200 - 300 in-lbs (23 - 34 Nm).

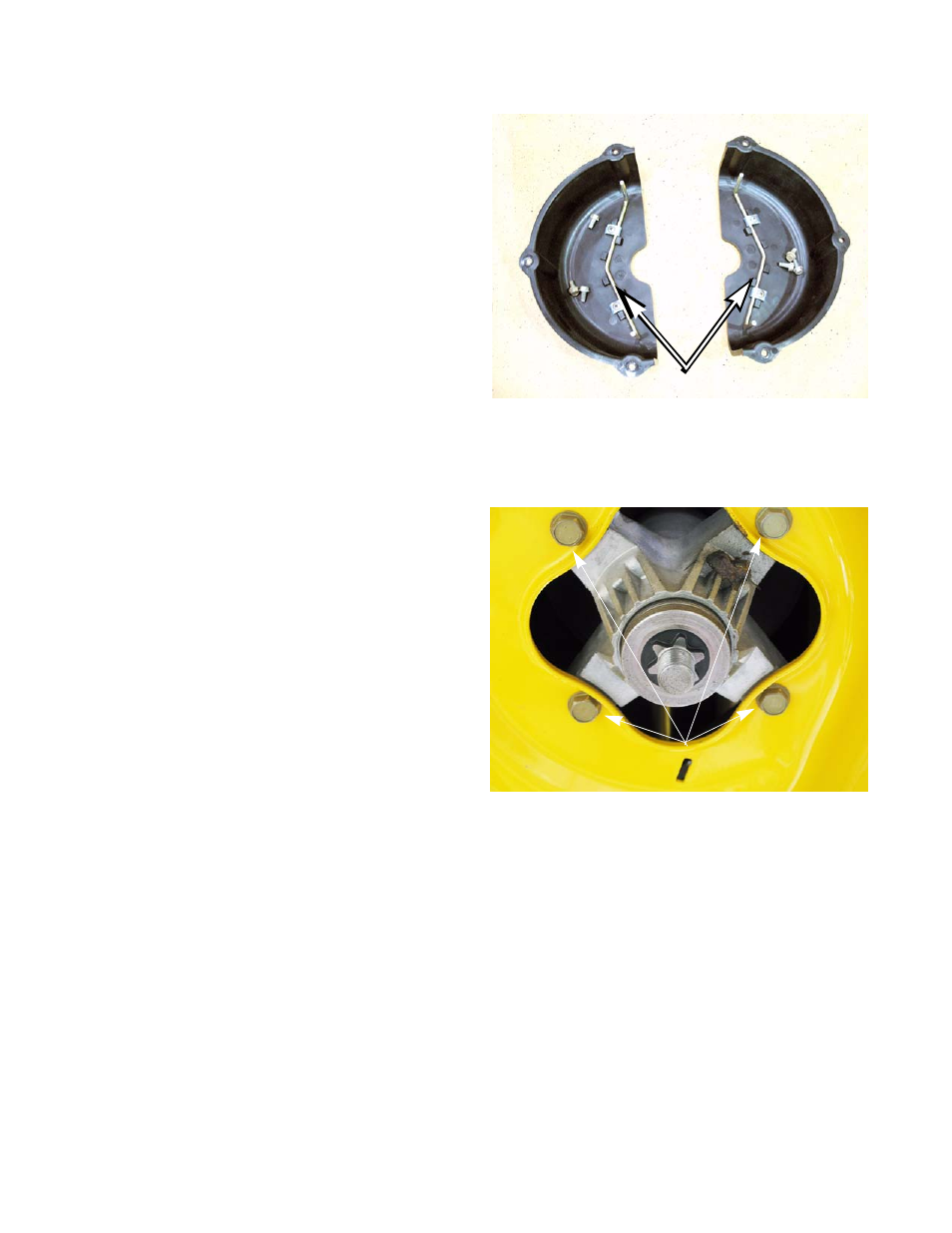

Figure 8.13
Belt guides
Figure 8.14
Remove these screws
