17a. Lubricate the points where the pedal shafts
meet the frame with a good quality lithium-
based grease. See Figure 6.31.
17b. Position the two rods that connect to the brake
pedal shaft as the pedal shaft assembly is
being lifted into the tractor:
•
The rod that de-tensions the drive belts when
the brake pedal is pressed.
•
The brake rod.
•
The rods fit into the holes in the brake shaft
much more easily before the pedal shaft is fully
in position.
17c. Position the drive control shaft and bushings,
fasten the drive control rod to it, then drive the
push cap on. See Figure 6.32.
17d. Tighten the pedal shaft support strap bolts to a
torque of 12-15 ft-lbs. (16-20 N-m).
17e. Check the adjustment of the tensioner pulley
control rod
17f. Attach the belt tensioner pulley control rod.
18.
Test the drive system and all safety features before
returning the tractor to service.

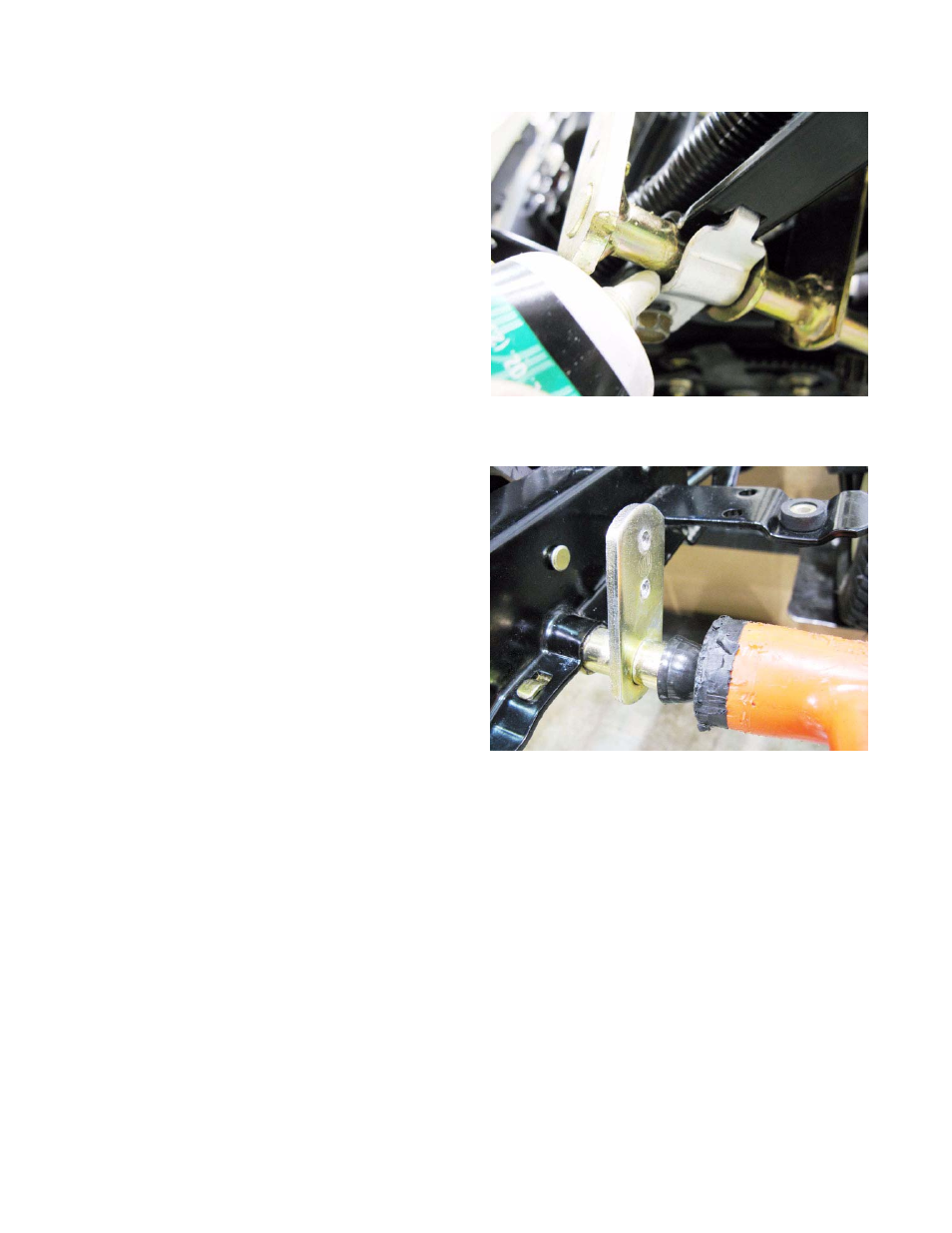

Figure 6.31
