Loosen the bolt that holds the left pedal shaft sup-
port strap using a 1/2” wrench. See Figure 6.25.
11.
Remove the bolt that holds the right pedal shaft sup-
port strap using a 1/2” wrench.
NOTE: This will allow the pedal shaft assembly to
hang-down slightly on the right side of the
tractor.
12.
As the pedal shaft is lowered, and the drive control
pedal shaft can be slipped to the right:
See Figure 6.26.
•
The brake rod will slip out of the latch plate on
the brake pedal shaft.
•
The rod that ties the arm at the left end of the
brake pedal shaft to the tensioner pulley
bracket will slip free.
13.
Remove the bolt from the left side pedal shaft sup-
port strap, and remove the pedal shaft assembly
from the tractor. See Figure 6.27.

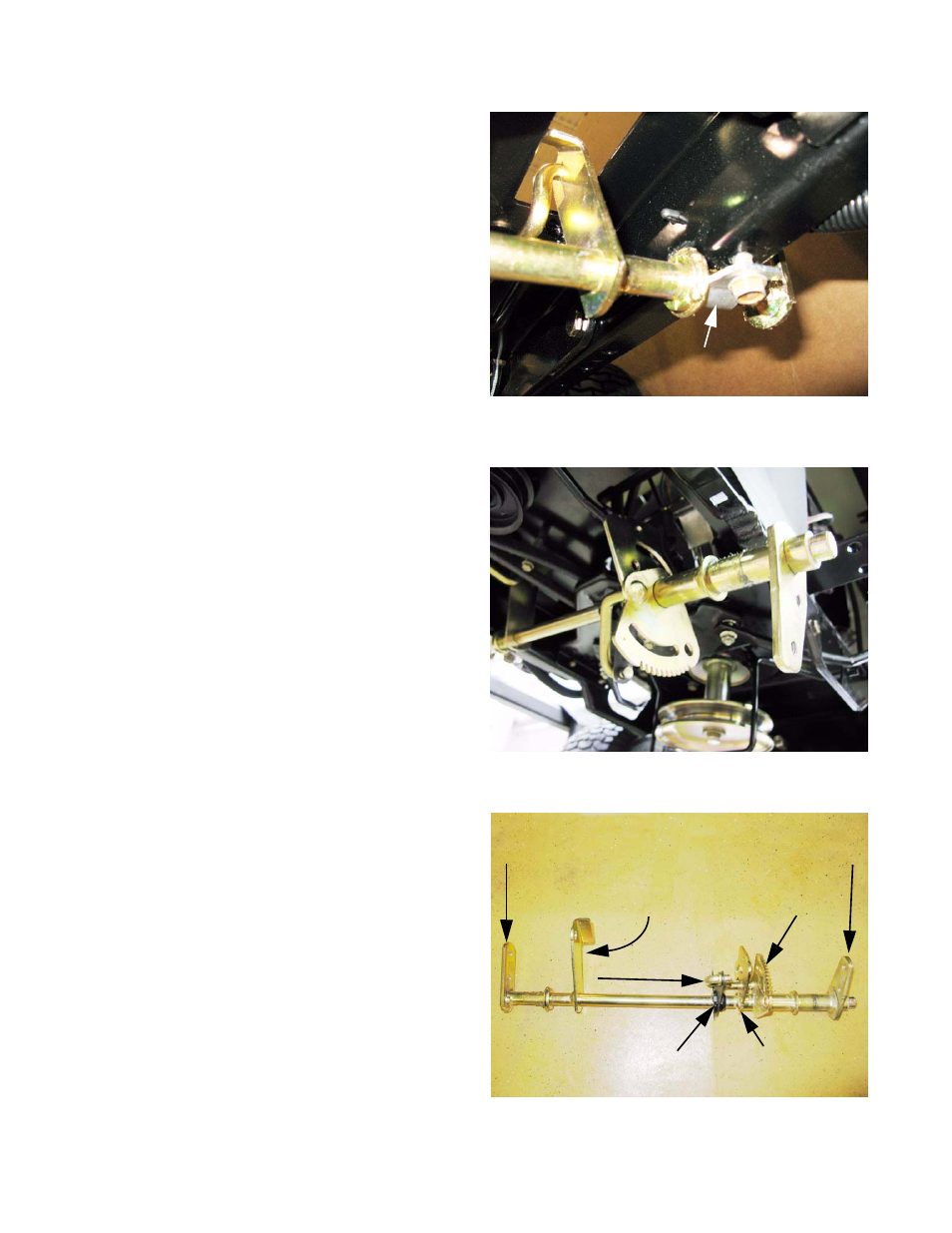

Figure 6.25
Left pedal shaft support strap
Figure 6.26
Figure 6.27
Brake pedal bracket Drive pedal bracket
Complete pedal shaft assembly
Arm for brake link
to tension pulley bracket cruise latch plate
Cobra-head
Tie plate Brake latch plate
