HYDRO. DRIVE AND BRAKE SYSTEM
77
6. Work the belt out of the two pulleys on the belt ten-
sioner bracket. See Figure 5.49.
7. Remove the single, fixed idler from the frame of the
tractor using a 1/2” wrench. See Figure 5.50.
8. Remove the belt keeper near the engine pulley or
electric PTO clutch, using a 1/2” wrench.
8a. With manual PTO, a single bolt holds the belt
keeper to the frame, to the left side of the
engine. See Figure 5.51.

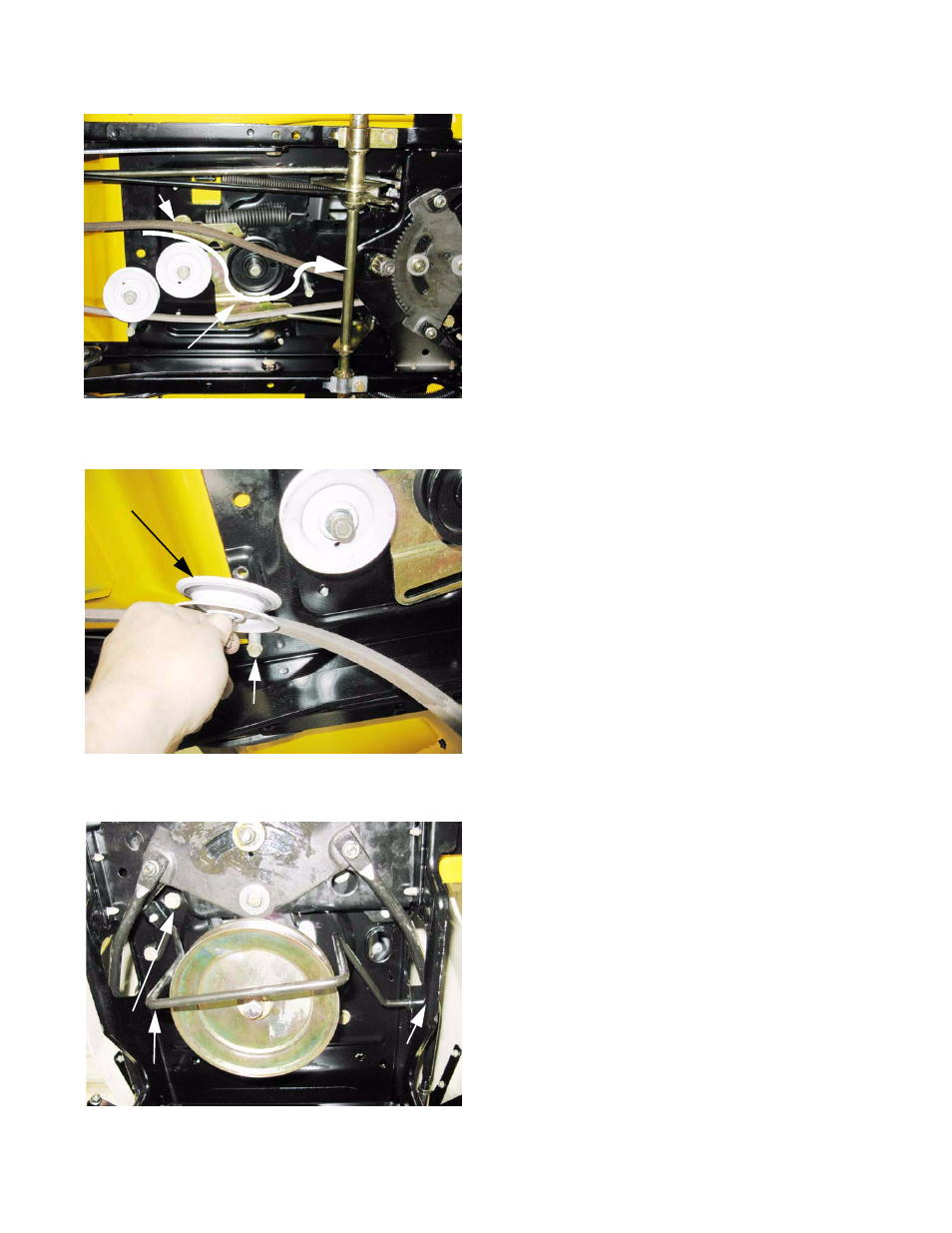

Figure 5.49
Belt
Belt route
Figure 5.50
Belt keeper pin
Fixed idler
Figure 5.51
Belt keeper
Bolt
Shoulder
fits through
hole in frame
