Cub Cadet SLTX1000 Series User Manual
Page 116

LTX Tractors
110
3.

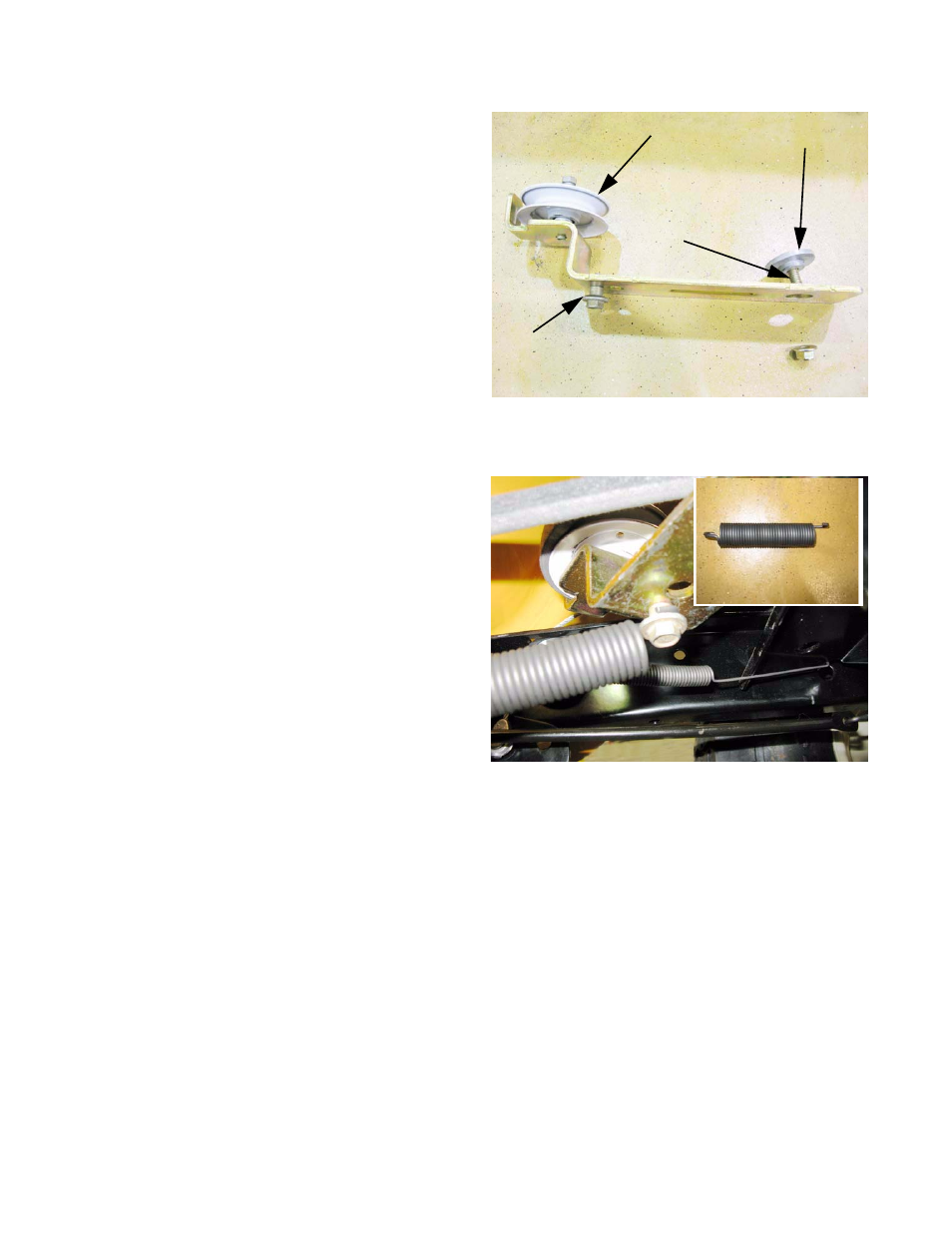

The arm pivots on a shouldered bushing.
See Figure 6.39.
•
A shoulder bolt threads into the bottom of the
arm, for the tension spring to hook onto.
•
The tension make-up pulley bolts to the top of
the arm.
4.
Install the arm by reversing the procedure used to
remove it.
•
Lubricate the pivot point with grease or anti-
seize compound.
•
One end of the tensioner spring is offset. The
offset end connects to the arm.
Figure 6.39
Tension make-up pulley Shoulder bushing
Mounting bolt
Shoulder bolt
Figure 6.40
