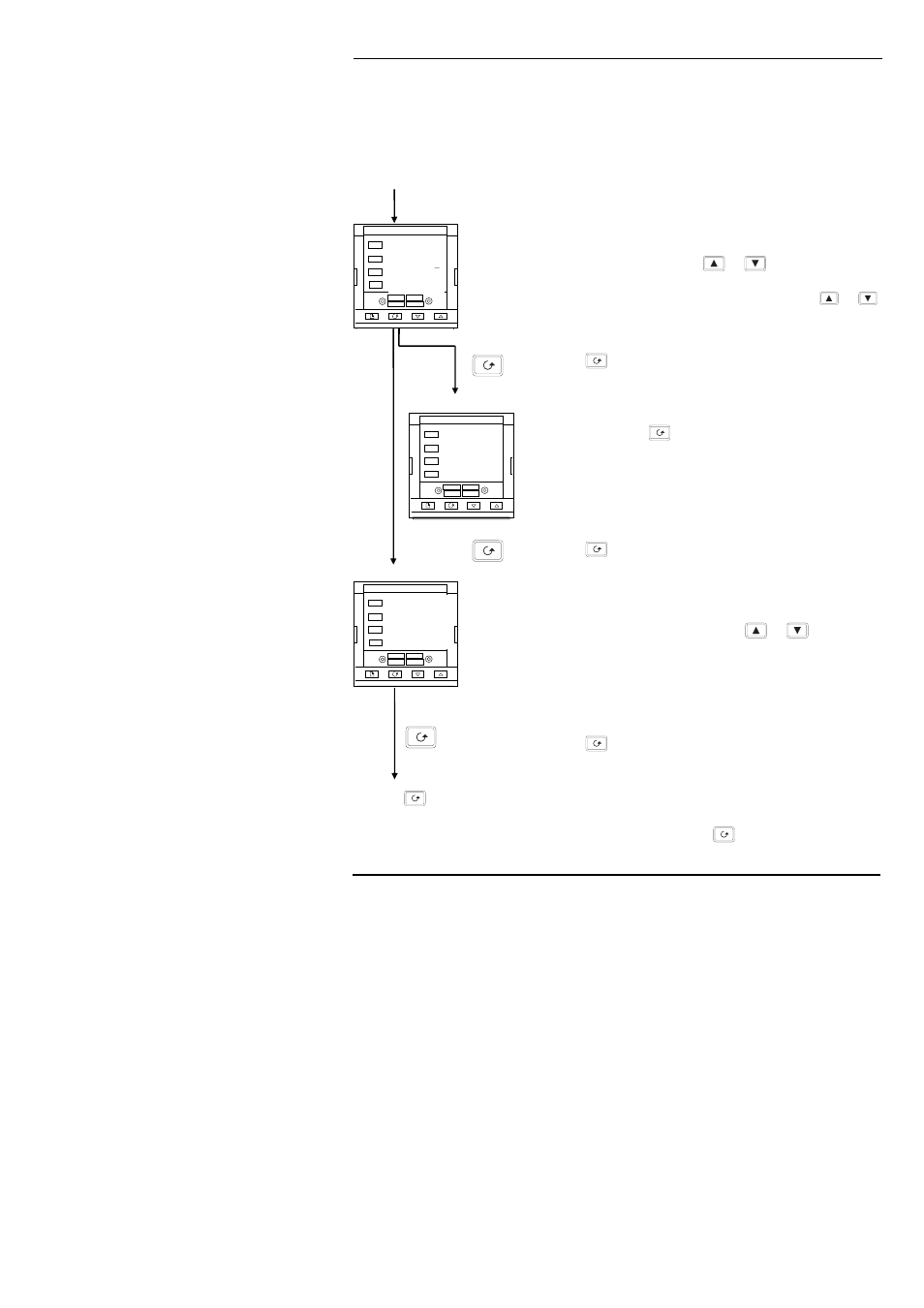

2.3.2 Manual mode
If the AUTO light is on, press the AUTO/MAN button to select manual mode. The MAN
light will come on.
Power on
x 2
The Home display
Check that the MAN light is on.
The upper readout shows the measured temperature or
process value. The lower readout shows the % output.
To adjust the output, press or .
(Note: If Output Rate Limit has been enabled, then the
lower readout will show the working output. If
or
is pressed, it will change to show and allow adjustment of,
the target output.)
Press once
Display units
A single press of will flash the display units for 0.5
seconds, after which you will be returned to the Home
display.
Flashing of the display units may have been disabled in
configuration in which case you a single press will take
you straight to the display shown below.
Press twice
Setpoint
To adjust the setpoint value, press or .
Press
Pressing from the Output Power display may access further parameters. Other
parameters may be in this scroll list if the ‘Promote’ feature has been used (see Chapter 3,
Edit Level). When you reach the end of this scroll list, pressing will return you to the
Home display.
26.0
20.0
26.0
o C
sP
25.0
