Installation and Operation Handbook Configuration
2408 and 2404 Controller 6-15

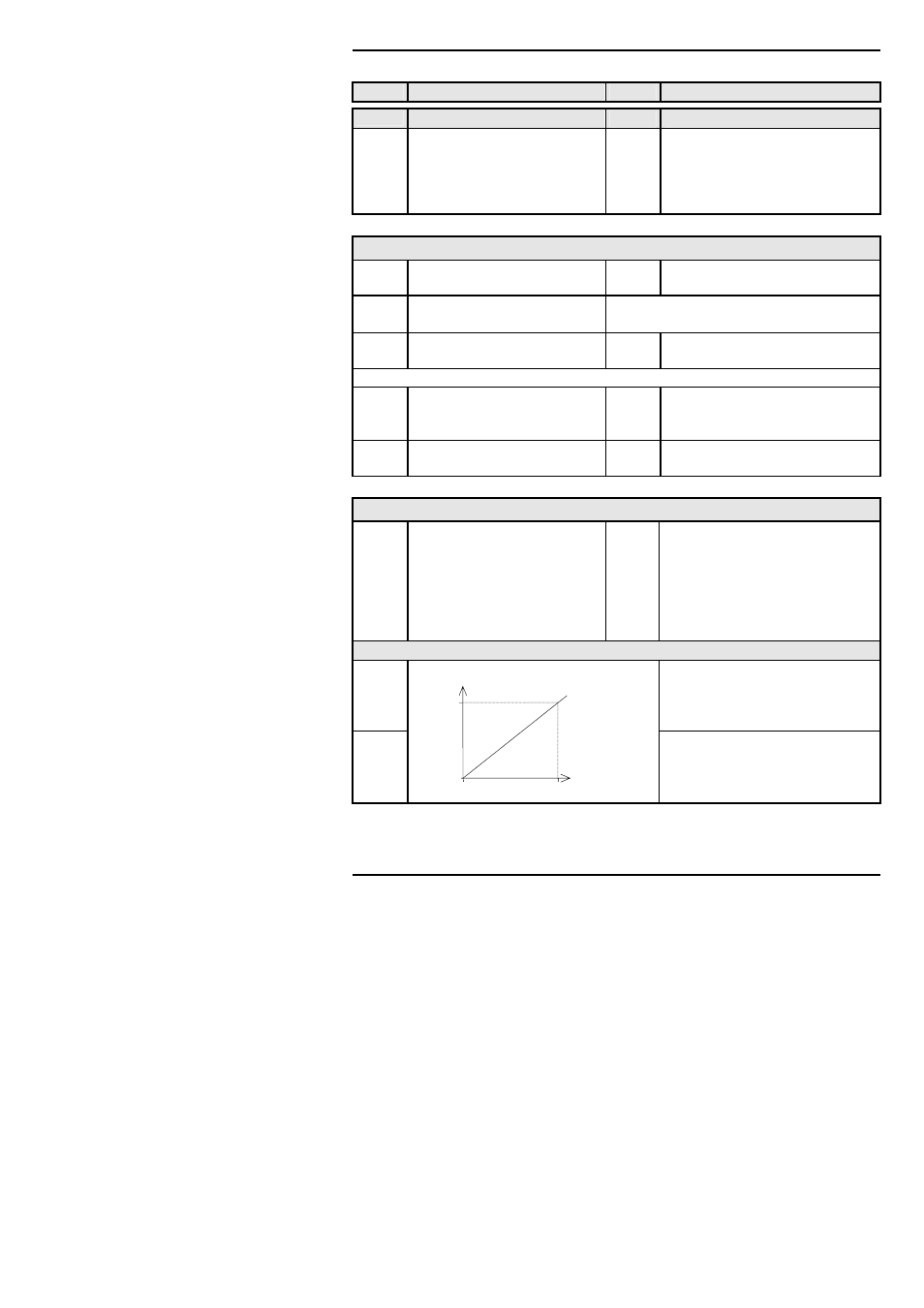

Name Description Values Meaning
HA Comms 1 module config
id Identity of the module installed cmS EIA-232, or 2-wire EIA-485, or 4-wire
EIA-485 comms
PDS PDS retransmission
PDS.i PDS input
dnET DeviceNet
For ‘ id’ = ‘cms’ (Digital communications) use this parameter table:
Func Function mod Modbus protocol
EI.bi Bisynch protocol
bAud Baud Rate 1200, 2400, 4800, 9600, 19.20(19,200)
125(K), 250(K), 500(K) for DeviceNet
dELy Delay - quiet period, required by no No delay
some comms adaptors YES Delay active - 10mS
The following parameters only appear if the function chosen is Modbus protocol.
Prty
Comms Parity nonE No parity
EvEn Even parity
Odd Odd parity
rES Comms Resolution FuLL Full resolution
Int Integer resolution
For ‘ id’ = ‘pds’ (PDS retransmission output) use this parameter table:
Func Function nonE No PDS function
i.e. Retransmitted output SP.oP PDS setpoint retransmission
PV.oP PDS PV retransmission
OP.oP PDS output power retransmission
Er.OP PDS error signal retransmission
SP.nH PDS setpoint retransmission - no
holdback
Output Scaling
VAL.L Retransmitted value low
VAL.H Retransmitted Value High
VAL.L
100% 0%
VAL.H
Displayed Value
Retransmitted
Output
